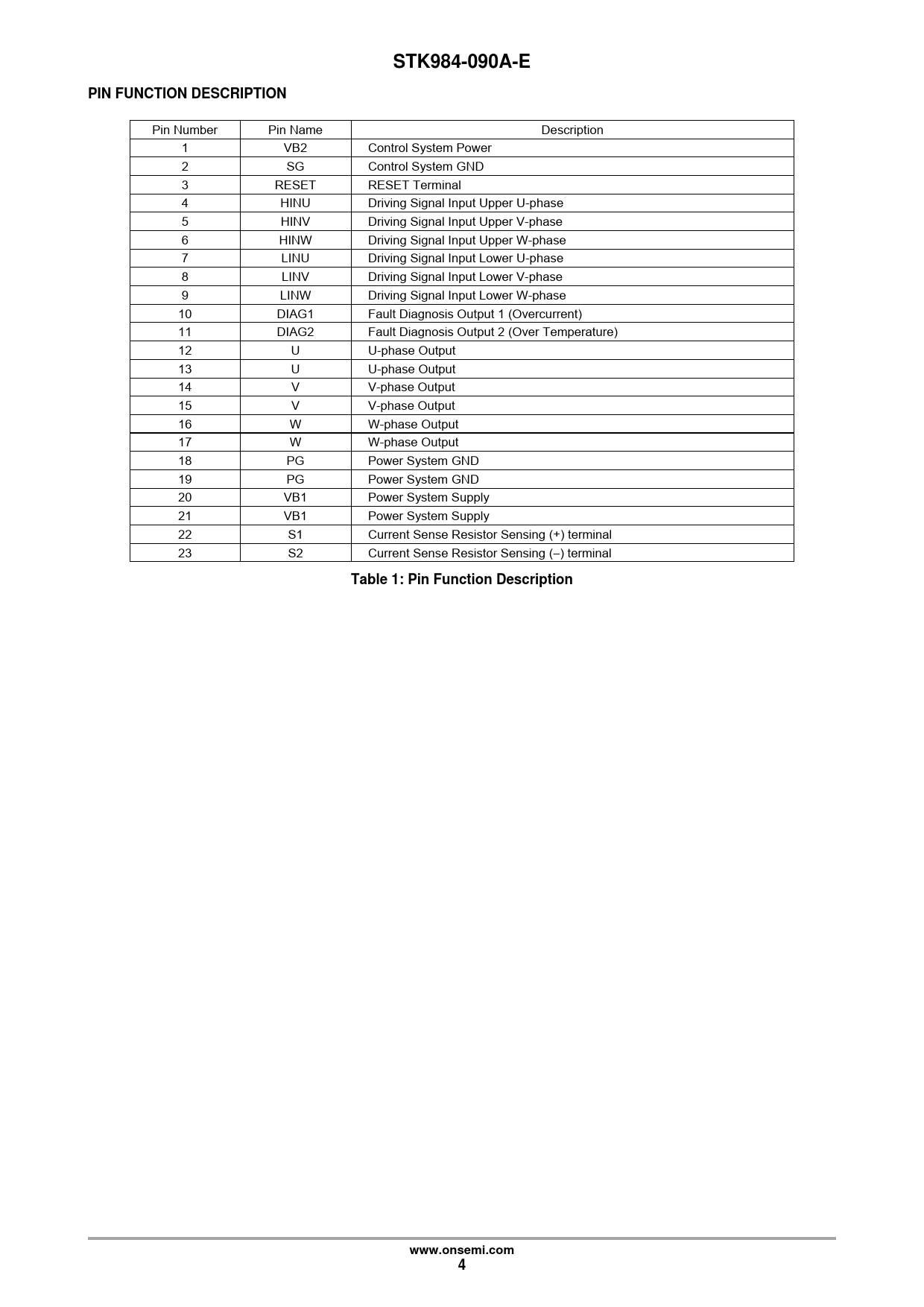

STK984-090A-E
PIN FUNCTION DESCRIPTION
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 Pin Name
VB2
SG
RESET
HINU
HINV
HINW
LINU
LINV
LINW
DIAG1
DIAG2
U
U
V
V
W
W
PG
PG
VB1
VB1
S1
S2 Description
Control System Power
Control System GND
RESET Terminal
Driving Signal Input Upper U-phase
Driving Signal Input Upper V-phase
Driving Signal Input Upper W-phase
Driving Signal Input Lower U-phase
Driving Signal Input Lower V-phase
Driving Signal Input Lower W-phase
Fault Diagnosis Output 1 (Overcurrent)
Fault Diagnosis Output 2 (Over Temperature)
U-phase Output
U-phase Output
V-phase Output
V-phase Output
W-phase Output
W-phase Output
Power System GND
Power System GND
Power System Supply
Power System Supply
Current Sense Resistor Sensing (+) terminal
Current Sense Resistor Sensing () terminal Table 1: Pin Function Description www.onsemi.com 4
