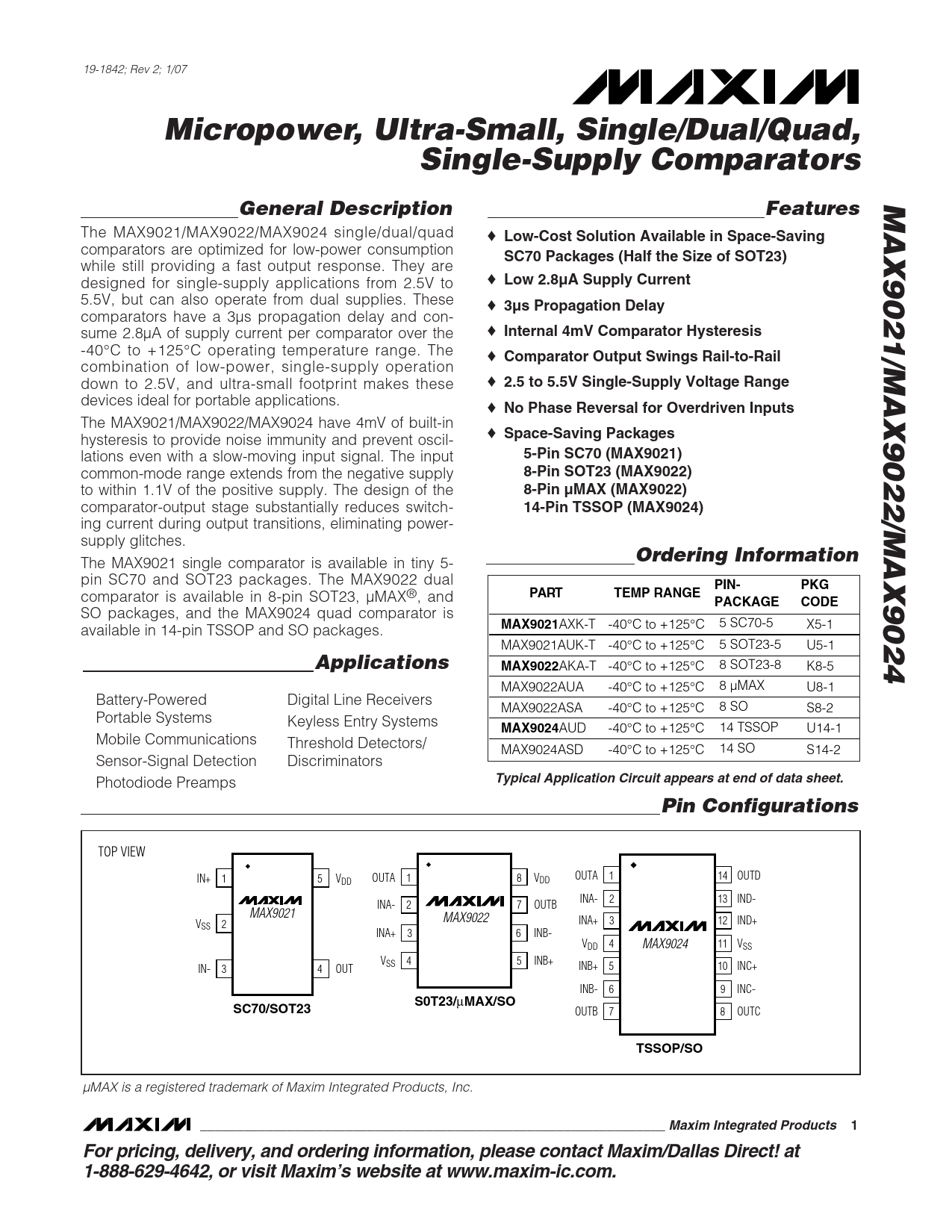

19-1842; Rev 2; 1/07
Micropower, Ultra-Small, Single/Dual/Quad, Single-Supply Comparators MAX9021/MAX9022/MAX9024 General Description Features
The MAX9021/MAX9022/MAX9024 single/dual/quad ♦
Low-Cost Solution Available in Space-Saving
comparators are optimized for low-power consumption
SC70 Packages (Half the Size of SOT23)
while still providing a fast output response. They are designed for single-supply applications from 2.5V to ♦
Low 2.8µA Supply Current
5.5V, but can also operate from dual supplies. These ♦
3µs Propagation Delay
comparators have a 3µs propagation delay and con- sume 2.8µA of supply current per comparator over the ♦
Internal 4mV Comparator Hysteresis
-40°C to +125°C operating temperature range. The ♦
Comparator Output Swings Rail-to-Rail
combination of low-power, single-supply operation down to 2.5V, and ultra-small footprint makes these ♦
2.5 to 5.5V Single-Supply Voltage Range
devices ideal for portable applications. ♦
No Phase Reversal for Overdriven Inputs
The MAX9021/MAX9022/MAX9024 have 4mV of built-in ♦ hysteresis to provide noise immunity and prevent oscil-
Space-Saving Packages
lations even with a slow-moving input signal. The input
5-Pin SC70 (MAX9021)
common-mode range extends from the negative supply
8-Pin SOT23 (MAX9022)
to within 1.1V of the positive supply. The design of the
8-Pin µMAX (MAX9022)
comparator-output stage substantially reduces switch-
14-Pin TSSOP (MAX9024)
ing current during output transitions, eliminating power- supply glitches.
Ordering Information
The MAX9021 single comparator is available in tiny 5- pin SC70 and SOT23 packages. The MAX9022 dual
PIN- PKG
comparator is available in 8-pin SOT23, µMAX®, and
PA RT TEMP RANGE PACKAGE CODE
SO packages, and the MAX9024 quad comparator is available in 14-pin TSSOP and SO packages.
MAX9021
AXK-T -40°C to +125°C 5 SC70-5 X5-1 MAX9021AUK-T -40°C to +125°C 5 SOT23-5 U5-1
Applications MAX9022
AKA-T -40°C to +125°C 8 SOT23-8 K8-5 MAX9022AUA -40°C to +125°C 8 µMAX U8-1 Battery-Powered Digital Line Receivers MAX9022ASA -40°C to +125°C 8 SO S8-2 Portable Systems Keyless Entry Systems
MAX9024
AUD -40°C to +125°C 14 TSSOP U14-1 Mobile Communications Threshold Detectors/ MAX9024ASD -40°C to +125°C 14 SO S14-2 Sensor-Signal Detection Discriminators Photodiode Preamps
Typical Application Circuit appears at end of data sheet. Pin Configurations
TOP VIEW IN+ 1 5 V OUTA 1 14 OUTD DD OUTA 1 8 VDD INA- 2 13 IND- INA- 2 7 OUTB MAX9021 MAX9022 V INA+ 3 12 IND+ SS 2 INA+ 3 6 INB- VDD 4 MAX9024 11 VSS VSS 4 5 INB+ IN- 3 4 OUT INB+ 5 10 INC+ INB- 6 9 INC-
S0T23/
µ
MAX/SO SC70/SOT23
OUTB 7 8 OUTC
TSSOP/SO
µMAX is a registered trademark of Maxim Integrated Products, Inc.
________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
