f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC). Note:
该数据表的模型线
文件文字版本
9

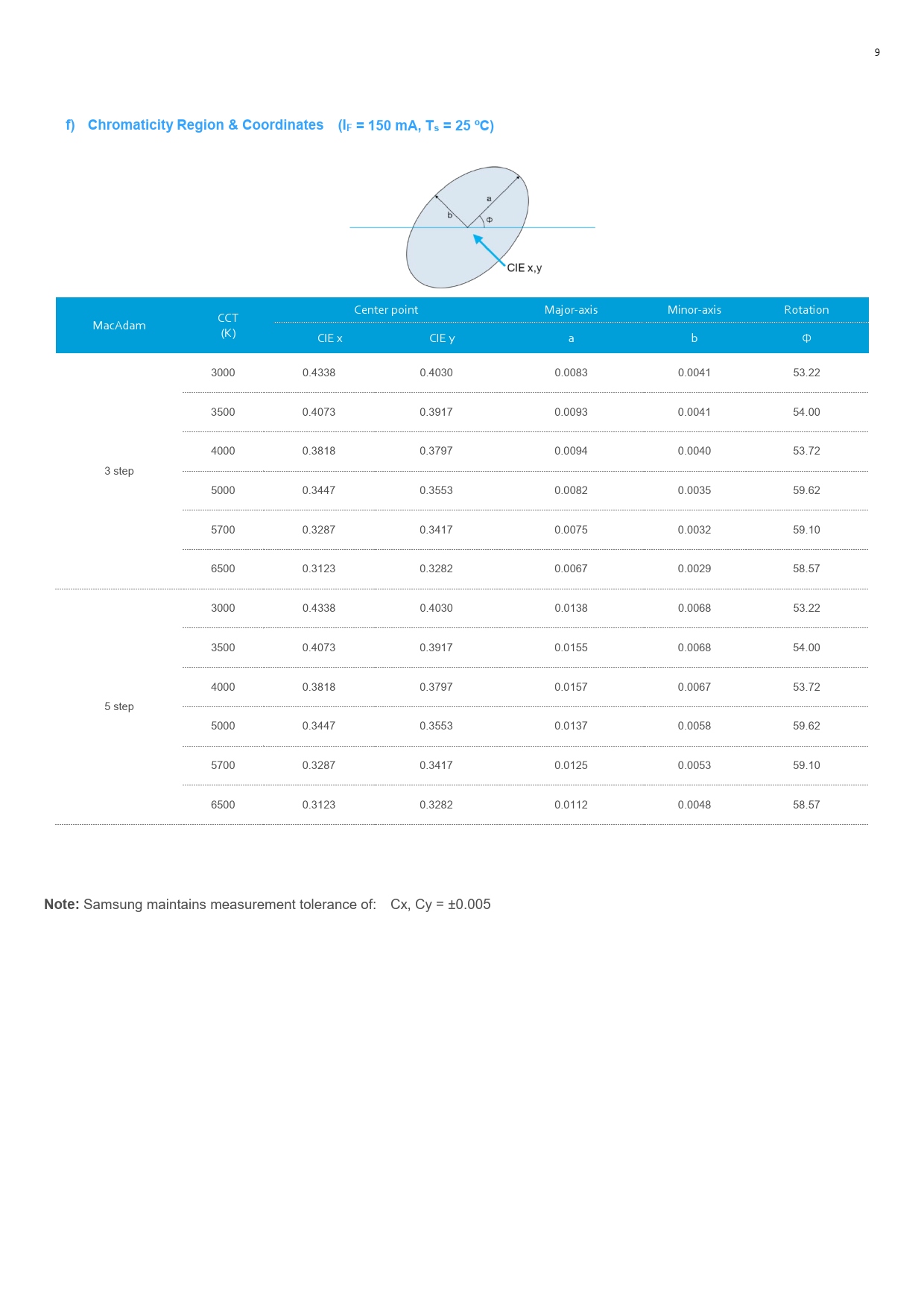

f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC)
Center point Major-axis Minor-axis Rotation CCT MacAdam (K) CIE x CIE y a b Φ 3000 0.4338 0.4030 0.0083 0.0041 53.22 3500 0.4073 0.3917 0.0093 0.0041 54.00 4000 0.3818 0.3797 0.0094 0.0040 53.72 3 step 5000 0.3447 0.3553 0.0082 0.0035 59.62 5700 0.3287 0.3417 0.0075 0.0032 59.10 6500 0.3123 0.3282 0.0067 0.0029 58.57 3000 0.4338 0.4030 0.0138 0.0068 53.22 3500 0.4073 0.3917 0.0155 0.0068 54.00 4000 0.3818 0.3797 0.0157 0.0067 53.72 5 step 5000 0.3447 0.3553 0.0137 0.0058 59.62 5700 0.3287 0.3417 0.0125 0.0053 59.10 6500 0.3123 0.3282 0.0112 0.0048 58.57
Note:
Samsung maintains measurement tolerance of: Cx, Cy = ±0.005
f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC)
Center point Major-axis Minor-axis Rotation CCT MacAdam (K) CIE x CIE y a b Φ 3000 0.4338 0.4030 0.0083 0.0041 53.22 3500 0.4073 0.3917 0.0093 0.0041 54.00 4000 0.3818 0.3797 0.0094 0.0040 53.72 3 step 5000 0.3447 0.3553 0.0082 0.0035 59.62 5700 0.3287 0.3417 0.0075 0.0032 59.10 6500 0.3123 0.3282 0.0067 0.0029 58.57 3000 0.4338 0.4030 0.0138 0.0068 53.22 3500 0.4073 0.3917 0.0155 0.0068 54.00 4000 0.3818 0.3797 0.0157 0.0067 53.72 5 step 5000 0.3447 0.3553 0.0137 0.0058 59.62 5700 0.3287 0.3417 0.0125 0.0053 59.10 6500 0.3123 0.3282 0.0112 0.0048 58.57
Note:
Samsung maintains measurement tolerance of: Cx, Cy = ±0.005
