5

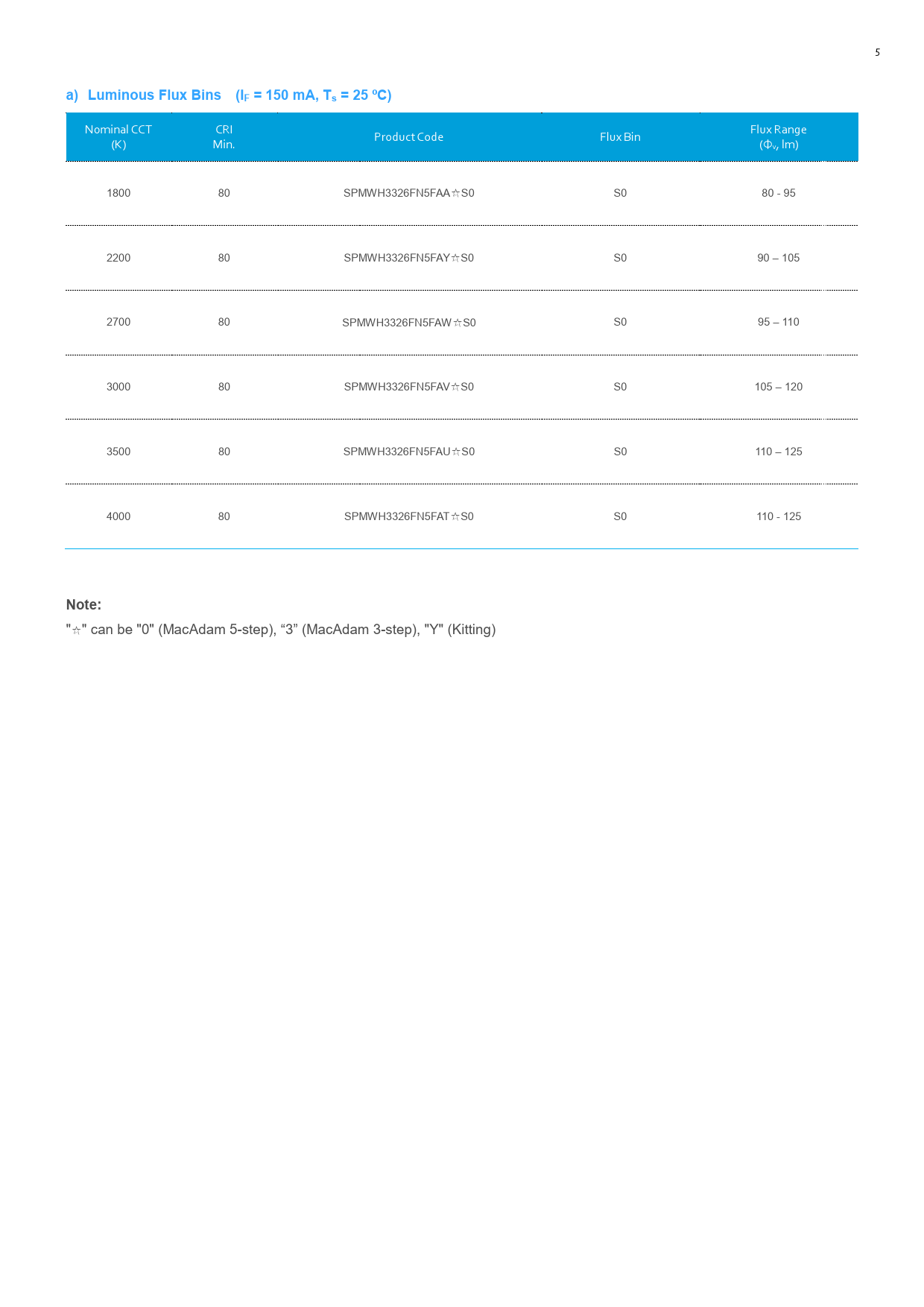

a) Luminous Flux Bins (IF = 150 mA, Ts = 25 ºC)
Nominal CCT CRI Flux Range Product Code Flux Bin (K) Min. (Φv, lm) 1800 80 SPMWH3326FN5FAA☆S0 S0 80 - 95 2200 80 SPMWH3326FN5FAY☆S0 S0 90 – 105 2700 80 SPMWH3326FN5FAW☆S0 S0 95 – 110 3000 80 SPMWH3326FN5FAV☆S0 S0 105 – 120 3500 80 SPMWH3326FN5FAU☆S0 S0 110 – 125 4000 80 SPMWH3326FN5FAT☆S0 S0 110 - 125
Note:
"☆" can be "0" (MacAdam 5-step), “3” (MacAdam 3-step), "Y" (Kitting)
