Datasheet LM302N NITE (Samsung) - 9
| 制造商 | Samsung |
| 描述 | Middle Power LED Series 3030 |
| 页数 / 页 | 24 / 9 — f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC). Note: |
| 文件格式/大小 | PDF / 2.5 Mb |
| 文件语言 | 英语 |
f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC). Note:
该数据表的模型线
文件文字版本
9

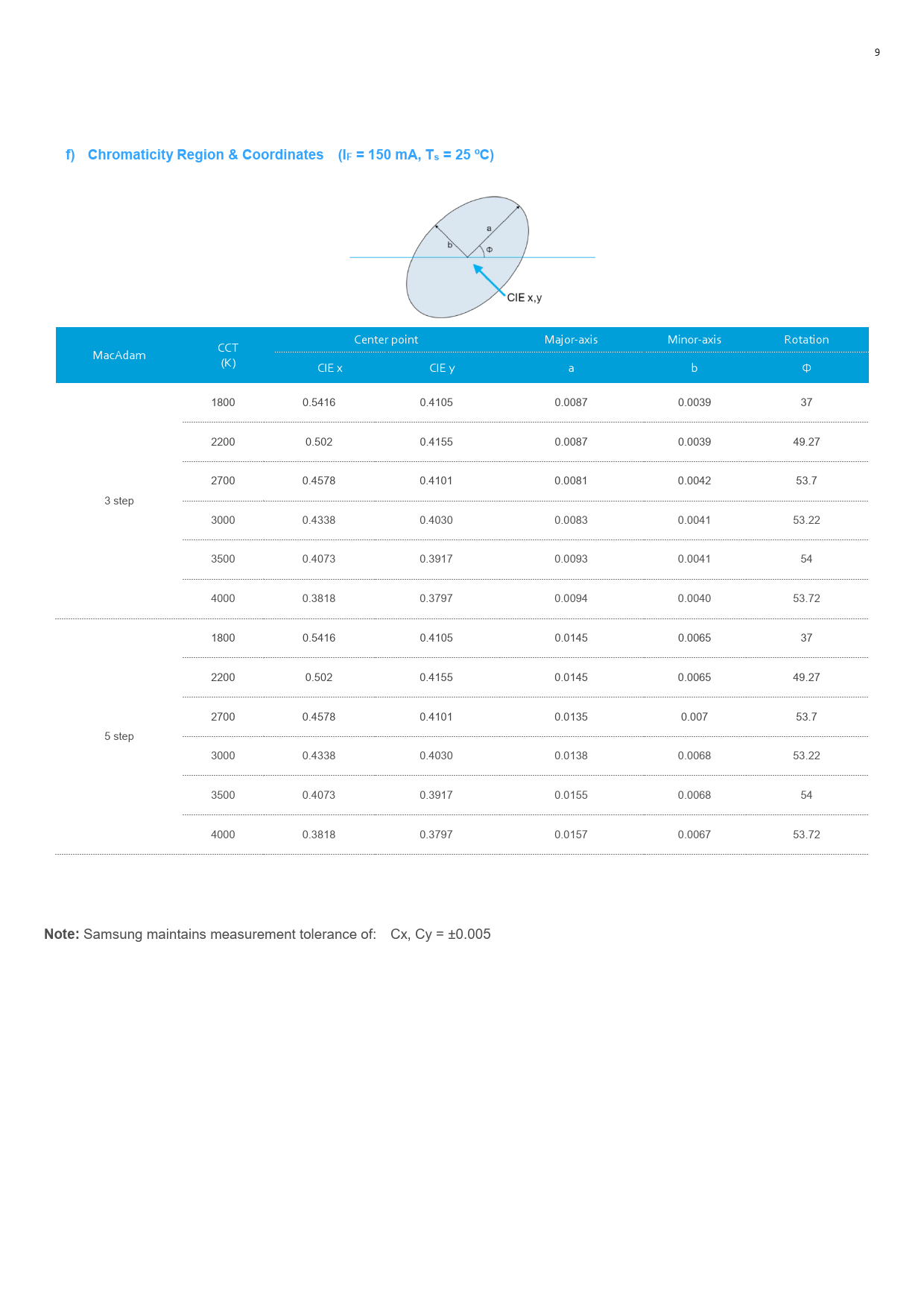

f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC)
Center point Major-axis Minor-axis Rotation CCT MacAdam (K) CIE x CIE y a b Φ 1800 0.5416 0.4105 0.0087 0.0039 37 2200 0.502 0.4155 0.0087 0.0039 49.27 2700 0.4578 0.4101 0.0081 0.0042 53.7 3 step 3000 0.4338 0.4030 0.0083 0.0041 53.22 3500 0.4073 0.3917 0.0093 0.0041 54 4000 0.3818 0.3797 0.0094 0.0040 53.72 1800 0.5416 0.4105 0.0145 0.0065 37 2200 0.502 0.4155 0.0145 0.0065 49.27 2700 0.4578 0.4101 0.0135 0.007 53.7 5 step 3000 0.4338 0.4030 0.0138 0.0068 53.22 3500 0.4073 0.3917 0.0155 0.0068 54 4000 0.3818 0.3797 0.0157 0.0067 53.72
Note:
Samsung maintains measurement tolerance of: Cx, Cy = ±0.005
f) Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC)
Center point Major-axis Minor-axis Rotation CCT MacAdam (K) CIE x CIE y a b Φ 1800 0.5416 0.4105 0.0087 0.0039 37 2200 0.502 0.4155 0.0087 0.0039 49.27 2700 0.4578 0.4101 0.0081 0.0042 53.7 3 step 3000 0.4338 0.4030 0.0083 0.0041 53.22 3500 0.4073 0.3917 0.0093 0.0041 54 4000 0.3818 0.3797 0.0094 0.0040 53.72 1800 0.5416 0.4105 0.0145 0.0065 37 2200 0.502 0.4155 0.0145 0.0065 49.27 2700 0.4578 0.4101 0.0135 0.007 53.7 5 step 3000 0.4338 0.4030 0.0138 0.0068 53.22 3500 0.4073 0.3917 0.0155 0.0068 54 4000 0.3818 0.3797 0.0157 0.0067 53.72
Note:
Samsung maintains measurement tolerance of: Cx, Cy = ±0.005
