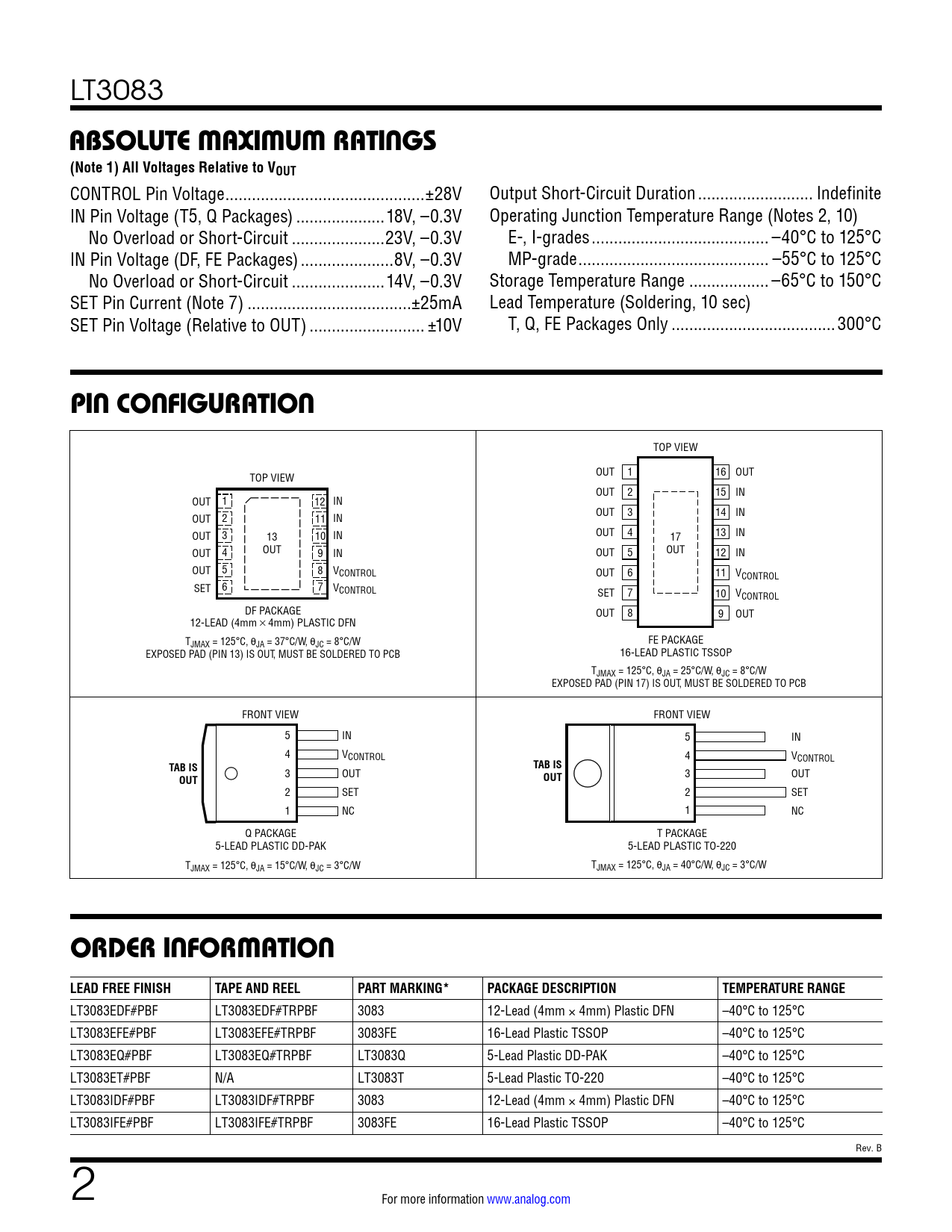

LT3083
ABSOLUTE MAXIMUM RATINGS (Note 1) All Voltages Relative to VOUT
CONTROL Pin Voltage ...±28V Output Short-Circuit Duration .. Indefinite IN Pin Voltage (T5, Q Packages) ..18V, –0.3V Operating Junction Temperature Range (Notes 2, 10) No Overload or Short-Circuit ...23V, –0.3V E-, I-grades .. –40°C to 125°C IN Pin Voltage (DF, FE Packages) ...8V, –0.3V MP-grade ... –55°C to 125°C No Overload or Short-Circuit ...14V, –0.3V Storage Temperature Range .. –65°C to 150°C SET Pin Current (Note 7) ...±25mA Lead Temperature (Soldering, 10 sec) SET Pin Voltage (Relative to OUT) .. ±10V T, Q, FE Packages Only ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 16 OUT OUT 2 15 IN OUT 1 12 IN OUT 3 OUT 2 11 IN 14 IN OUT 3 13 10 IN OUT 4 13 IN 17 OUT OUT 4 9 IN OUT 5 OUT 12 IN OUT 5 8 VCONTROL OUT 6 11 VCONTROL SET 6 7 VCONTROL SET 7 10 VCONTROL DF PACKAGE OUT 8 9 OUT 12-LEAD (4mm × 4mm) PLASTIC DFN TJMAX = 125°C, θJA = 37°C/W, θJC = 8°C/W FE PACKAGE EXPOSED PAD (PIN 13) IS OUT, MUST BE SOLDERED TO PCB 16-LEAD PLASTIC TSSOP TJMAX = 125°C, θJA = 25°C/W, θJC = 8°C/W EXPOSED PAD (PIN 17) IS OUT, MUST BE SOLDERED TO PCB FRONT VIEW FRONT VIEW 5 IN 5 IN 4 VCONTROL 4 VCONTROL
TAB IS TAB IS
3 OUT
OUT
3 OUT
OUT
2 SET 2 SET 1 NC 1 NC Q PACKAGE T PACKAGE 5-LEAD PLASTIC DD-PAK 5-LEAD PLASTIC TO-220 TJMAX = 125°C, θJA = 15°C/W, θJC = 3°C/W TJMAX = 125°C, θJA = 40°C/W, θJC = 3°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3083EDF#PBF LT3083EDF#TRPBF 3083 12-Lead (4mm × 4mm) Plastic DFN –40°C to 125°C LT3083EFE#PBF LT3083EFE#TRPBF 3083FE 16-Lead Plastic TSSOP –40°C to 125°C LT3083EQ#PBF LT3083EQ#TRPBF LT3083Q 5-Lead Plastic DD-PAK –40°C to 125°C LT3083ET#PBF N/A LT3083T 5-Lead Plastic TO-220 –40°C to 125°C LT3083IDF#PBF LT3083IDF#TRPBF 3083 12-Lead (4mm × 4mm) Plastic DFN –40°C to 125°C LT3083IFE#PBF LT3083IFE#TRPBF 3083FE 16-Lead Plastic TSSOP –40°C to 125°C Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
