Datasheet LT3092 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 200mA 2-Terminal Programmable Current Source |
| 页数 / 页 | 24 / 2 — absoluTe MaxiMuM raTings (Note 1) All Voltages Relative to VOUT. pin … |
| 文件格式/大小 | PDF / 460 Kb |
| 文件语言 | 英语 |
absoluTe MaxiMuM raTings (Note 1) All Voltages Relative to VOUT. pin conFiguraTion
该数据表的模型线
文件文字版本

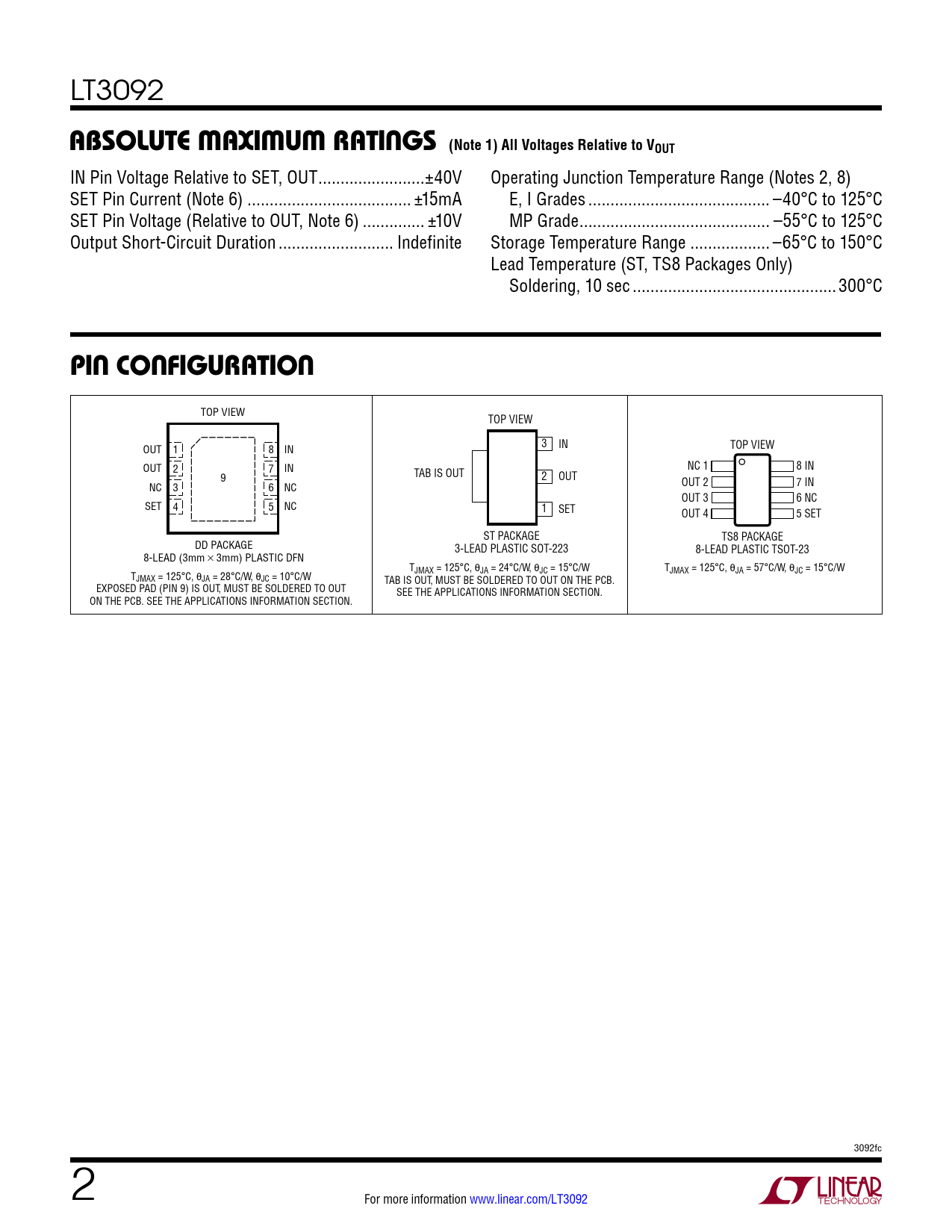

LT3092
absoluTe MaxiMuM raTings (Note 1) All Voltages Relative to VOUT
IN Pin Voltage Relative to SET, OUT ..±40V Operating Junction Temperature Range (Notes 2, 8) SET Pin Current (Note 6) ... ±15mA E, I Grades ... –40°C to 125°C SET Pin Voltage (Relative to OUT, Note 6) .. ±10V MP Grade ... –55°C to 125°C Output Short-Circuit Duration .. Indefinite Storage Temperature Range .. –65°C to 150°C Lead Temperature (ST, TS8 Packages Only) Soldering, 10 sec ..300°C
pin conFiguraTion
TOP VIEW TOP VIEW OUT 1 8 IN 3 IN TOP VIEW OUT 2 7 IN NC 1 8 IN 9 TAB IS OUT 2 OUT NC 3 6 NC OUT 2 7 IN OUT 3 6 NC SET 4 5 NC 1 SET OUT 4 5 SET ST PACKAGE TS8 PACKAGE DD PACKAGE 3-LEAD PLASTIC SOT-223 8-LEAD PLASTIC TSOT-23 8-LEAD (3mm × 3mm) PLASTIC DFN T T T JMAX = 125°C, θJA = 24°C/W, θJC = 15°C/W JMAX = 125°C, θJA = 57°C/W, θJC = 15°C/W JMAX = 125°C, θJA = 28°C/W, θJC = 10°C/W TAB IS OUT, MUST BE SOLDERED TO OUT ON THE PCB. EXPOSED PAD (PIN 9) IS OUT, MUST BE SOLDERED TO OUT SEE THE APPLICATIONS INFORMATION SECTION. ON THE PCB. SEE THE APPLICATIONS INFORMATION SECTION. 3092fc 2 For more information www.linear.com/LT3092 Document Outline Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Related Parts
