LT5401

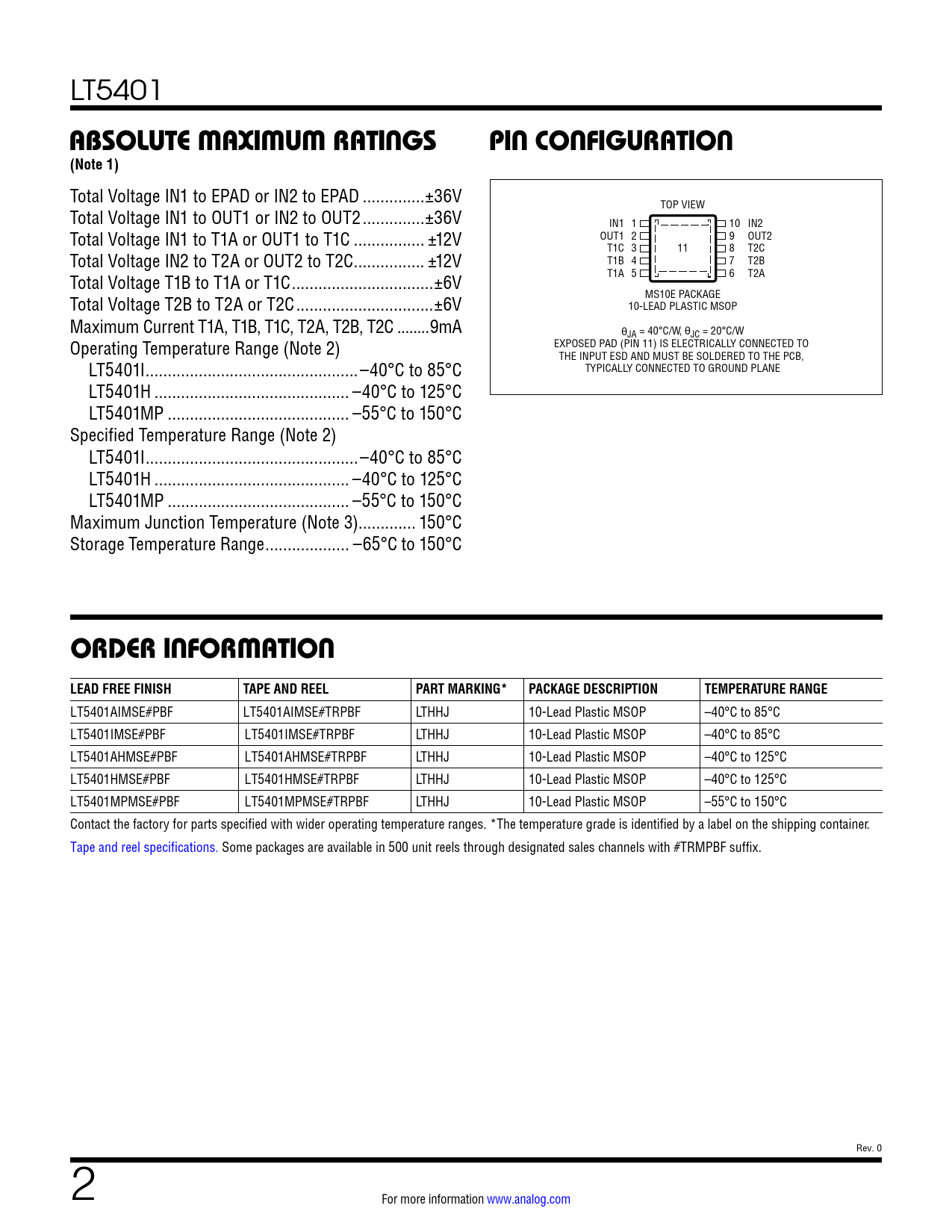

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Voltage IN1 to EPAD or IN2 to EPAD ..±36V TOP VIEW Total Voltage IN1 to OUT1 or IN2 to OUT2 ..±36V IN1 1 10 IN2 Total Voltage IN1 to T1A or OUT1 to T1C .. ±12V OUT1 2 9 OUT2 T1C 3 11 8 T2C Total Voltage IN2 to T2A or OUT2 to T2C .. ±12V T1B 4 7 T2B Total Voltage T1B to T1A or T1C ..±6V T1A 5 6 T2A Total Voltage T2B to T2A or T2C ...±6V MS10E PACKAGE 10-LEAD PLASTIC MSOP Maximum Current T1A, T1B, T1C, T2A, T2B, T2C ..9mA θJA = 40°C/W, θJC = 20°C/W Operating Temperature Range (Note 2) EXPOSED PAD (PIN 11) IS ELECTRICALLY CONNECTED TO THE INPUT ESD AND MUST BE SOLDERED TO THE PCB, LT5401I ..–40°C to 85°C TYPICALLY CONNECTED TO GROUND PLANE LT5401H .. –40°C to 125°C LT5401MP ... –55°C to 150°C Specified Temperature Range (Note 2) LT5401I ..–40°C to 85°C LT5401H .. –40°C to 125°C LT5401MP ... –55°C to 150°C Maximum Junction Temperature (Note 3)... 150°C Storage Temperature Range ... –65°C to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT5401AIMSE#PBF LT5401AIMSE#TRPBF LTHHJ 10-Lead Plastic MSOP –40°C to 85°C LT5401IMSE#PBF LT5401IMSE#TRPBF LTHHJ 10-Lead Plastic MSOP –40°C to 85°C LT5401AHMSE#PBF LT5401AHMSE#TRPBF LTHHJ 10-Lead Plastic MSOP –40°C to 125°C LT5401HMSE#PBF LT5401HMSE#TRPBF LTHHJ 10-Lead Plastic MSOP –40°C to 125°C LT5401MPMSE#PBF LT5401MPMSE#TRPBF LTHHJ 10-Lead Plastic MSOP –55°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
