CSD06060

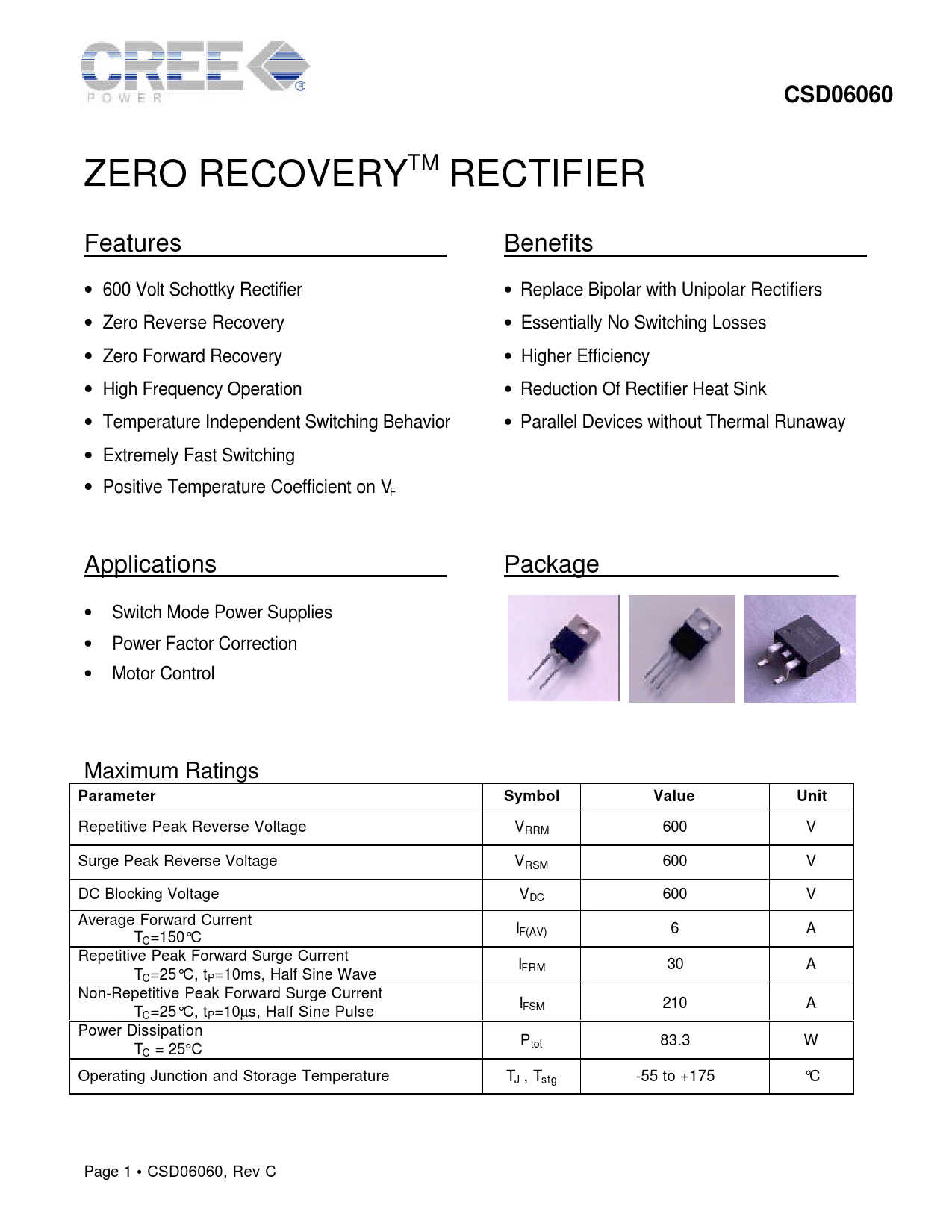

ZERO RECOVERYTM RECTIFIER Features Benefits _________ • 600 Volt Schottky Rectifier • Replace Bipolar with Unipolar Rectifiers • Zero Reverse Recovery • Essentially No Switching Losses • Zero Forward Recovery • Higher Efficiency • High Frequency Operation • Reduction Of Rectifier Heat Sink • Temperature Independent Switching Behavior • Parallel Devices without Thermal Runaway • Extremely Fast Switching • Positive Temperature Coefficient on VF Applications Package ______________ • Switch Mode Power Supplies • Power Factor Correction • Motor Control Maximum Ratings
Parameter Symbol Value Unit
Repetitive Peak Reverse Voltage VRRM 600 V Surge Peak Reverse Voltage VRSM 600 V DC Blocking Voltage VDC 600 V Average Forward Current I T F(AV) 6 A C=150°C Repetitive Peak Forward Surge Current I T FRM 30 A C=25°C, tP=10ms, Half Sine Wave Non-Repetitive Peak Forward Surge Current I T FSM 210 A C=25°C, tP=10µs, Half Sine Pulse Power Dissipation P T tot 83.3 W C = 25°C Operating Junction and Storage Temperature TJ , Tstg -55 to +175 °C Page 1 • CSD06060, Rev C
