Datasheet ADAR1000 (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | 8 GHz to 16 GHz, 4-Channel, X Band and Ku Band Beamformer |
| 页数 / 页 | 65 / 8 — ADAR1000. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| 修订版 | A |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |

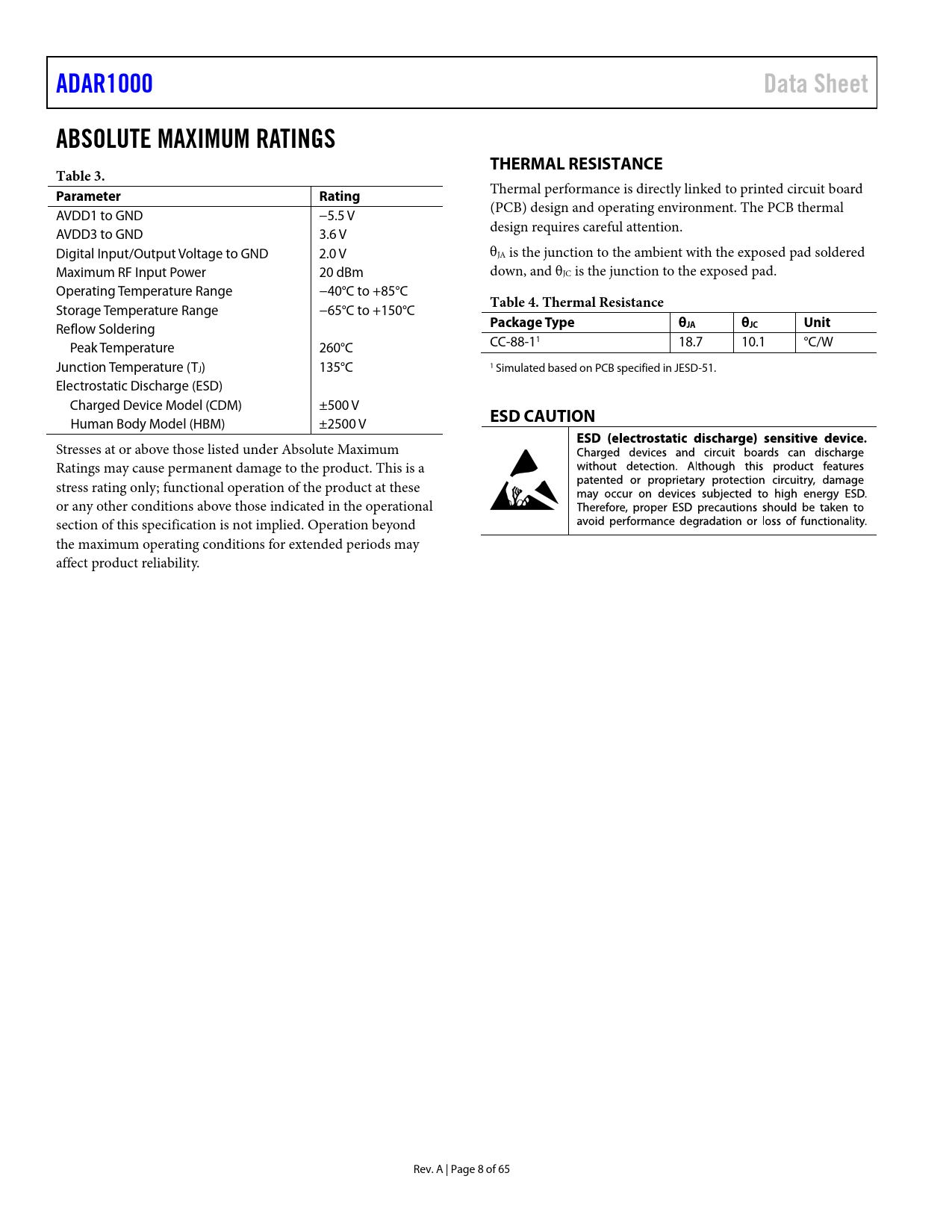

ADAR1000. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating. Table 4. Thermal Resistance
该数据表的模型线
文件文字版本
ADAR1000 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating
Thermal performance is directly linked to printed circuit board AVDD1 to GND −5.5 V (PCB) design and operating environment. The PCB thermal AVDD3 to GND 3.6 V design requires careful attention. Digital Input/Output Voltage to GND 2.0 V θJA is the junction to the ambient with the exposed pad soldered Maximum RF Input Power 20 dBm down, and θJC is the junction to the exposed pad. Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C
Table 4. Thermal Resistance
Reflow Soldering
Package Type θJA θJC Unit
Peak Temperature 260°C CC-88-11 18.7 10.1 °C/W Junction Temperature (TJ) 135°C 1 Simulated based on PCB specified in JESD-51. Electrostatic Discharge (ESD) Charged Device Model (CDM) ±500 V
