Preliminary Datasheet ZHB6790 (Diodes) - 8

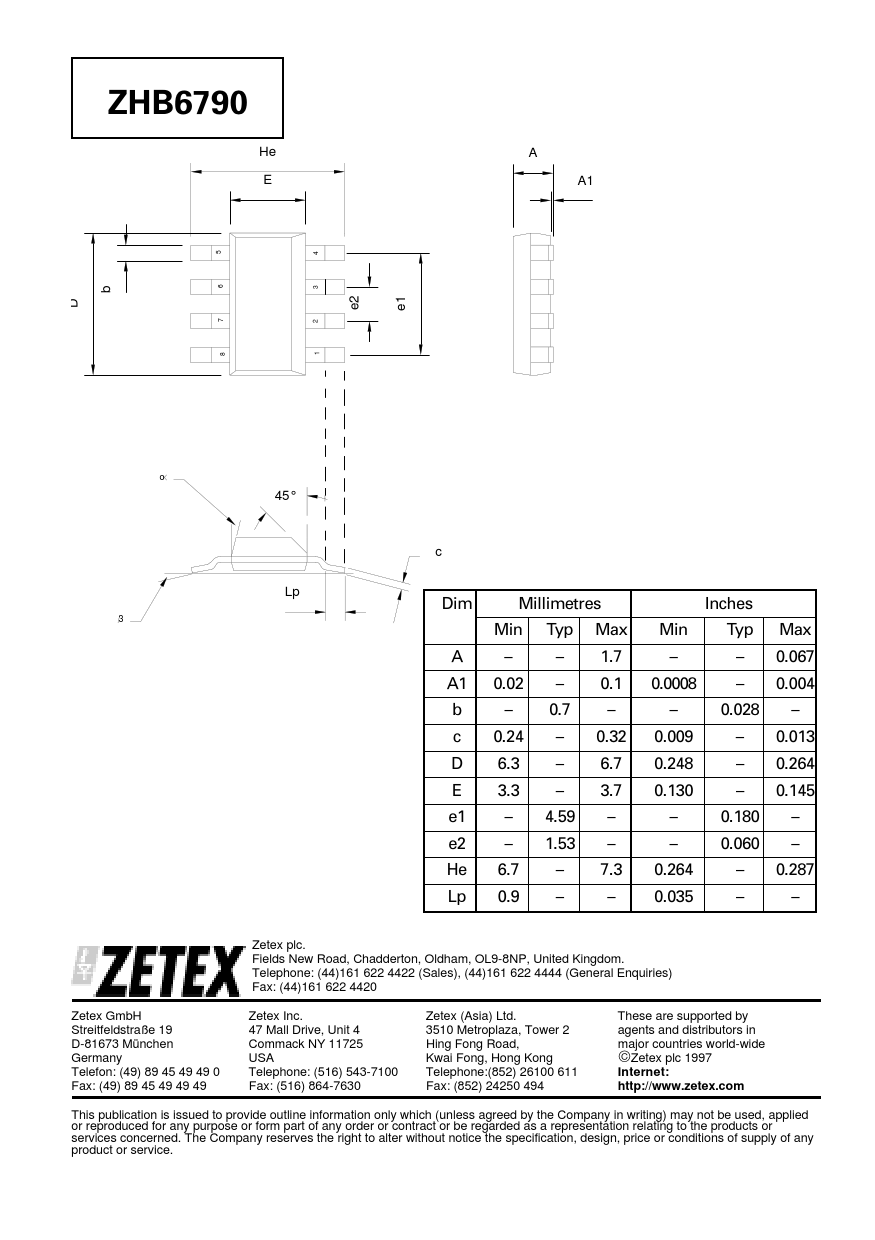

ZHB6790 He A E A1 5 4 b 6 3 D e2 e1 7 2 8 1 o 45° c Lp Dim Millimetres Inches 3 Min Typ Max Min Typ Max A – – 1.7 – – 0.067 A1 0.02 – 0.1 0.0008 – 0.004 b – 0.7 – – 0.028 – c 0.24 – 0.32 0.009 – 0.013 D 6.3 – 6.7 0.248 – 0.264 E 3.3 – 3.7 0.130 – 0.145 e1 – 4.59 – – 0.180 – e2 – 1.53 – – 0.060 – He 6.7 – 7.3 0.264 – 0.287 Lp 0.9 – – 0.035 – – Zetex plc. Fields New Road, Chadderton, Oldham, OL9-8NP, United Kingdom. Telephone: (44)161 622 4422 (Sales), (44)161 622 4444 (General Enquiries) Fax: (44)161 622 4420 Zetex GmbH Zetex Inc. Zetex (Asia) Ltd. These are supported by Streitfeldstraße 19 47 Mall Drive, Unit 4 3510 Metroplaza, Tower 2 agents and distributors in D-81673 München Commack NY 11725 Hing Fong Road, major countries world-wide Germany USA Kwai Fong, Hong Kong Zetex plc 1997 Telefon: (49) 89 45 49 49 0 Telephone: (516) 543-7100 Telephone:(852) 26100 611
