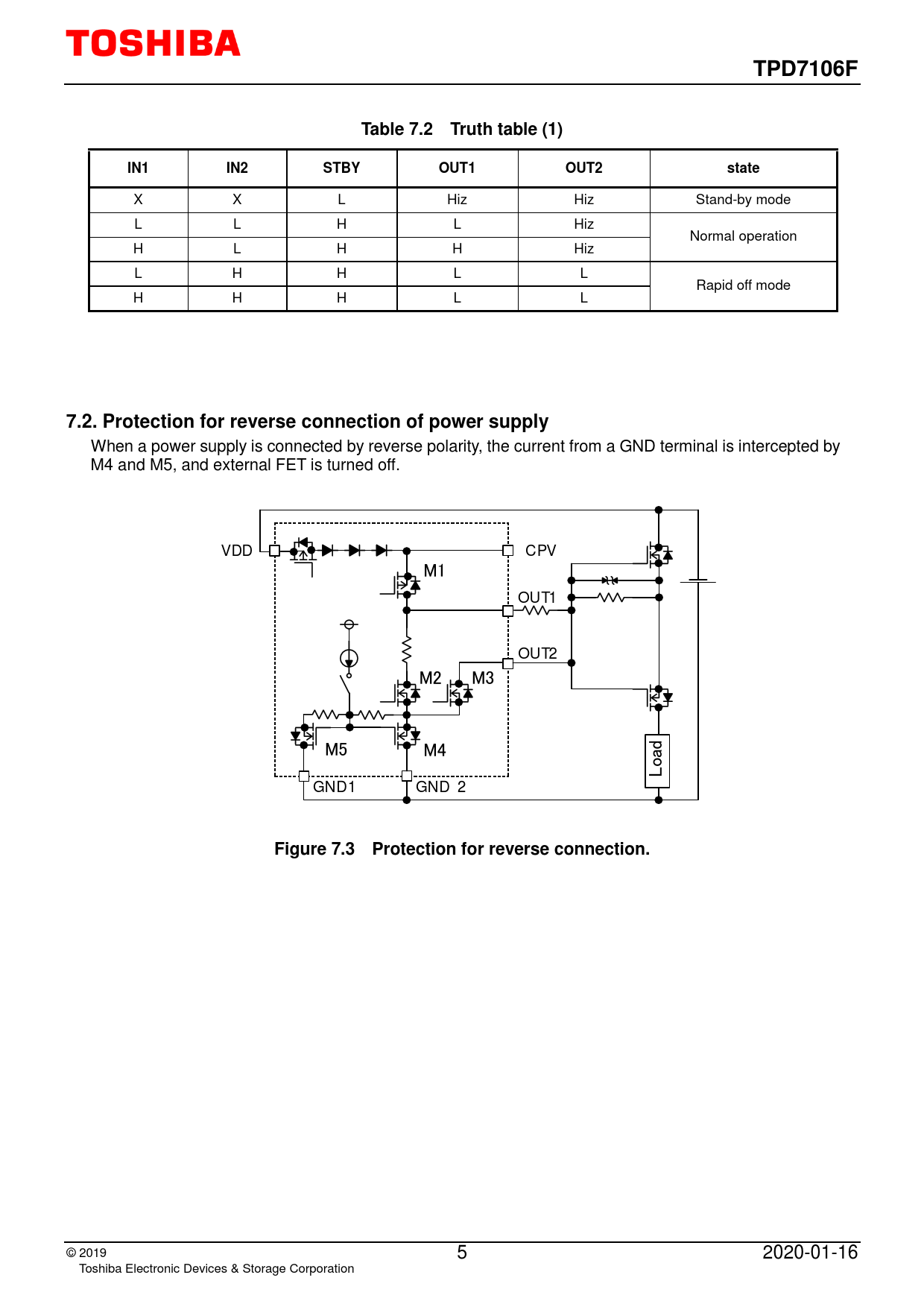

TPD7106F. Table 7.2 Truth table (1). IN1. IN2. STBY. OUT1. OUT2. state. 7.2. Protection for reverse connection of power supply
该数据表的模型线
文件文字版本
TPD7106F Table 7.2 Truth table (1) IN1 IN2 STBY OUT1 OUT2 state
X X L Hiz Hiz Stand-by mode L L H L Hiz Normal operation H L H H Hiz L H H L L Rapid off mode H H H L L
7.2. Protection for reverse connection of power supply
When a power supply is connected by reverse polarity, the current from a GND terminal is intercepted by M4 and M5, and external FET is turned off. VDD CPV M1 OUT1 OUT2 M2 M3 M5 M4 ad o L GND1 GND 2
Figure 7.3 Protection for reverse connection.
