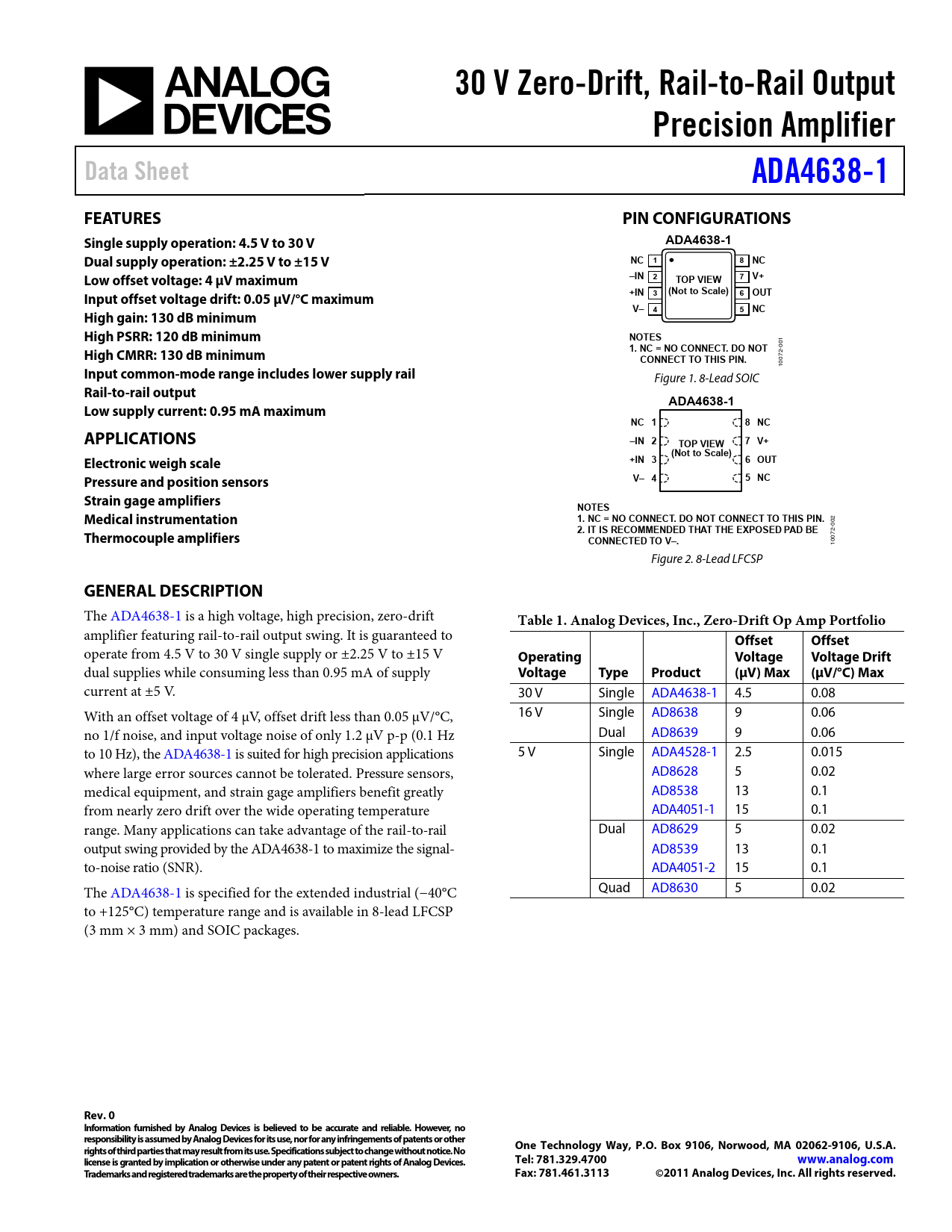

Datasheet ADA4638-1 (Analog Devices)

30 V Zero-Drift, Rail-to-Rail Output Precision Amplifier Data Sheet ADA4638-1 FEATURES PIN CONFIGURATIONS Single supply operation: 4.5 V to 30 V ADA4638-1 Dual supply operation: ±2.25 V to ±15 V NC 1 8 NC Low offset voltage: 4 μV maximum –IN 2 7 V+ TOP VIEW +IN 3 (Not to Scale) 6 OUT Input offset voltage drift: 0.05 μV/°C maximum V– 4 5 NC High gain: 130 dB minimum High PSRR: 120 dB minimum NOTES
1
1. NC = NO CONNECT. DO NOT
-00
High CMRR: 130 dB minimum
72
CONNECT TO THIS PIN.
100
Input common-mode range includes lower supply rail
Figure 1. 8-Lead SOIC
Rail-to-rail output ADA4638-1 Low supply current: 0.95 mA maximum NC 1 8 NC APPLICATIONS –IN 2 TOP VIEW 7 V+ (Not to Scale) Electronic weigh scale +IN 3 6 OUT Pressure and position sensors V– 4 5 NC Strain gage amplifiers NOTES Medical instrumentation 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
0202-
2. IT IS RECOMMENDED THAT THE EXPOSED PAD BE Thermocouple amplifiers
07
CONNECTED TO V–.
10 Figure 2. 8-Lead LFCSP
GENERAL DESCRIPTION
The ADA4638-1 is a high voltage, high precision, zero-drift
Table 1. Analog Devices, Inc., Zero-Drift Op Amp Portfolio
amplifier featuring rail-to-rail output swing. It is guaranteed to
Offset Offset
operate from 4.5 V to 30 V single supply or ±2.25 V to ±15 V
Operating Voltage Voltage Drift
dual supplies while consuming less than 0.95 mA of supply
Voltage Type Product (μV) Max (μV/°C) Max
current at ±5 V. 30 V Single ADA4638-1 4.5 0.08 With an offset voltage of 4 μV, offset drift less than 0.05 μV/°C, 16 V Single AD8638 9 0.06 no 1/f noise, and input voltage noise of only 1.2 μV p-p (0.1 Hz Dual AD8639 9 0.06 to 10 Hz), the ADA4638-1 is suited for high precision applications 5 V Single ADA4528-1 2.5 0.015 where large error sources cannot be tolerated. Pressure sensors, AD8628 5 0.02 medical equipment, and strain gage amplifiers benefit greatly AD8538 13 0.1 from nearly zero drift over the wide operating temperature ADA4051-1 15 0.1 range. Many applications can take advantage of the rail-to-rail Dual AD8629 5 0.02 output swing provided by the ADA4638-1 to maximize the signal- AD8539 13 0.1 to-noise ratio (SNR). ADA4051-2 15 0.1 The ADA4638-1 is specified for the extended industrial (−40°C Quad AD8630 5 0.02 to +125°C) temperature range and is available in 8-lead LFCSP (3 mm × 3 mm) and SOIC packages.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2011 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—30 V OPERATION ELECTRICAL CHARACTERISTICS—10 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION DIFFERENTIATION THEORY OF OPERATION INPUT PROTECTION NO OUTPUT PHASE REVERSAL NOISE CONSIDERATIONS 1/f Noise COMPARATOR OPERATION PRECISION LOW-SIDE CURRENT SHUNT SENSOR PRINTED CIRCUIT BOARD LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
