Datasheet AD8574-EP (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Zero-Drift, Single-Supply, Rail-to-Rail I/O Quad, Operational Amplifier |
| 页数 / 页 | 14 / 5 — Enhanced Product. AD8574-EP. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 310 Kb |
| 文件语言 | 英语 |

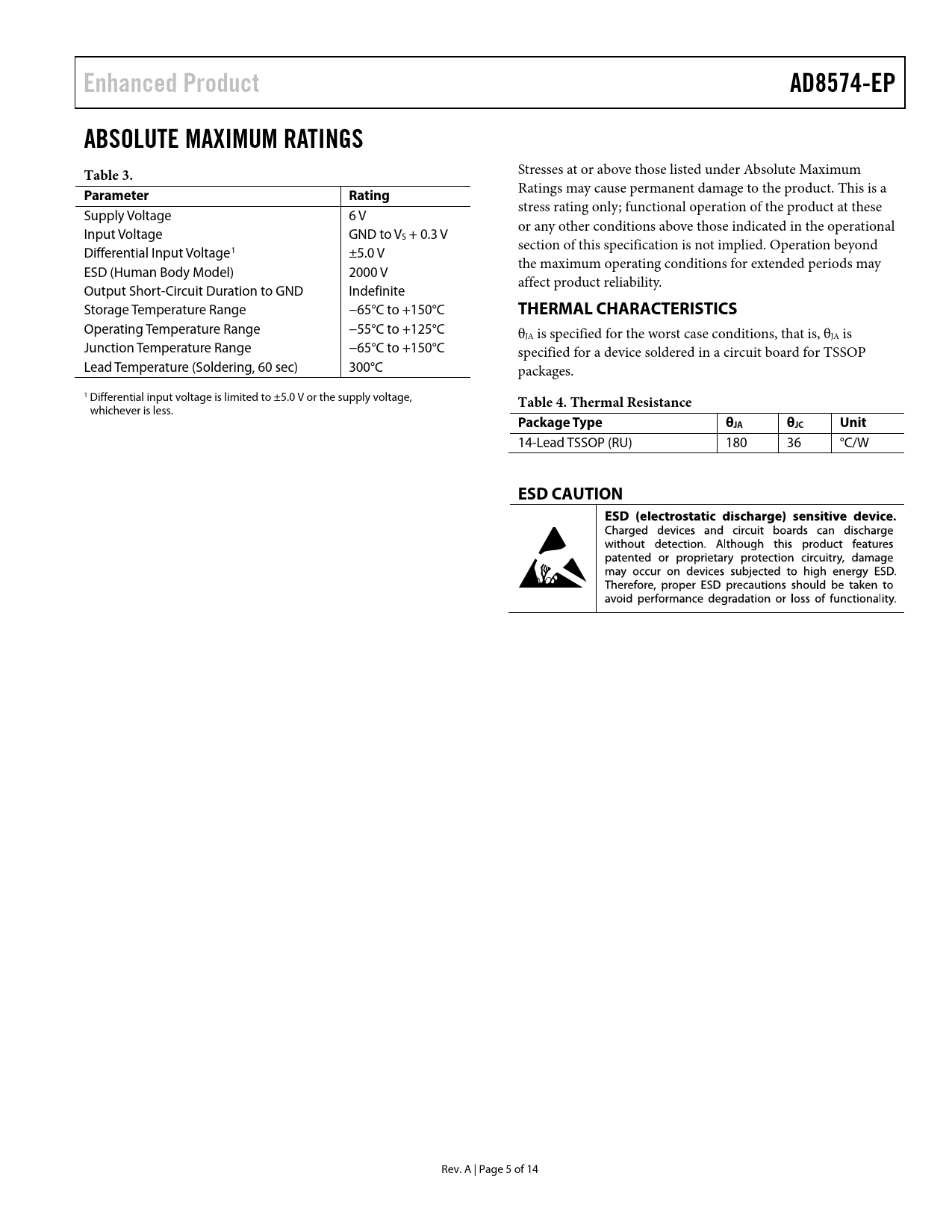

Enhanced Product. AD8574-EP. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. THERMAL CHARACTERISTICS
该数据表的模型线
文件文字版本
Enhanced Product AD8574-EP ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage 6 V stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational Input Voltage GND to VS + 0.3 V section of this specification is not implied. Operation beyond Differential Input Voltage1 ±5.0 V the maximum operating conditions for extended periods may ESD (Human Body Model) 2000 V affect product reliability. Output Short-Circuit Duration to GND Indefinite Storage Temperature Range −65°C to +150°C
THERMAL CHARACTERISTICS
Operating Temperature Range −55°C to +125°C θJA is specified for the worst case conditions, that is, θJA is Junction Temperature Range −65°C to +150°C specified for a device soldered in a circuit board for TSSOP Lead Temperature (Soldering, 60 sec) 300°C packages. 1 Differential input voltage is limited to ±5.0 V or the supply voltage,
Table 4. Thermal Resistance
whichever is less.
Package Type θJA θJC Unit
14-Lead TSSOP (RU) 180 36 °C/W
ESD CAUTION
Rev. A | Page 5 of 14 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Table of Contents Revision History Specifications 5 V Electrical Characteristics 2.7 V Electrical Characteristics Absolute Maximum Ratings Thermal Characteristics ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
