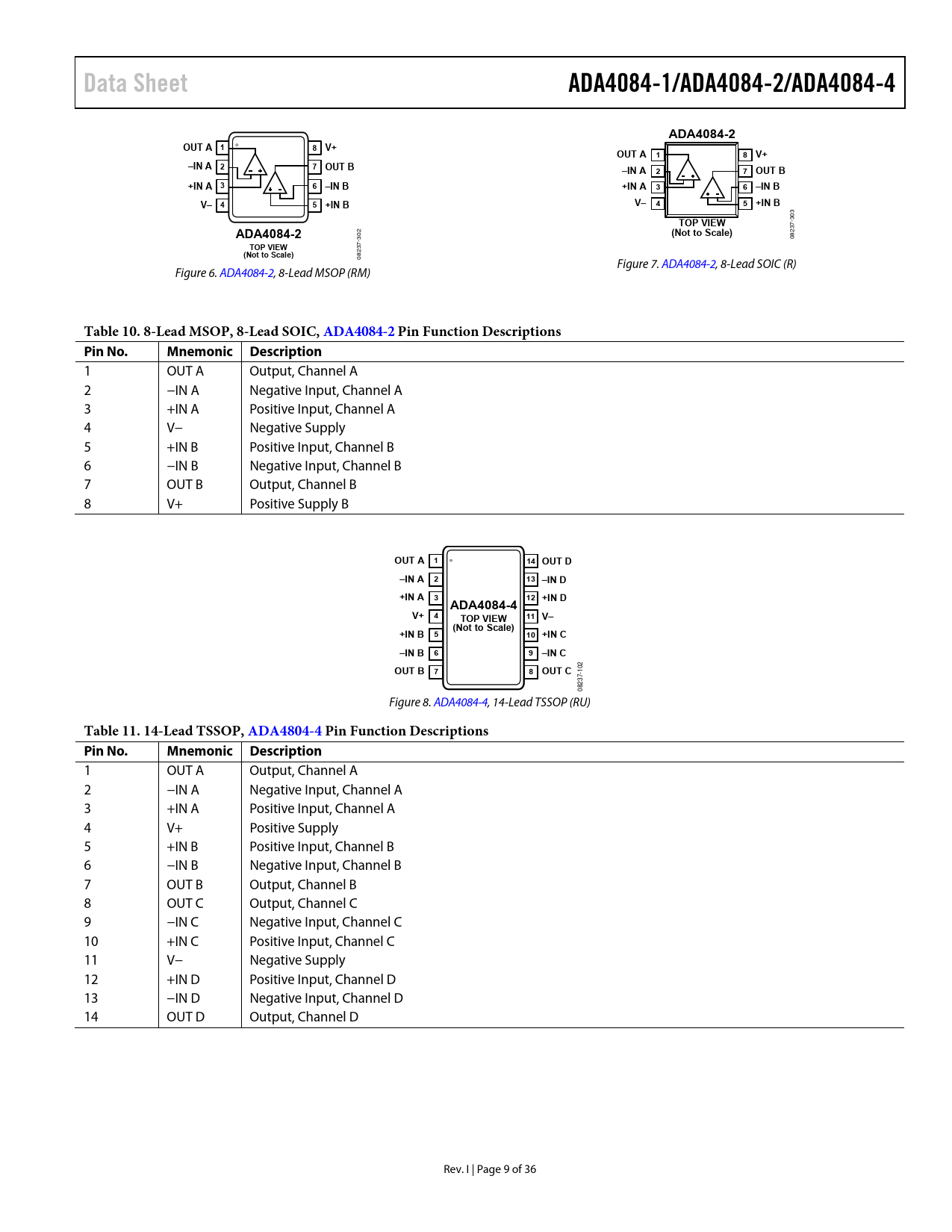

Data SheetADA4084-1/ADA4084-2/ADA4084-4ADA4084-2OUT A 18 V+OUT A 18 V+–IN A 27 OUT B–IN A 27 OUT B+IN A 36 –IN B+IN A 36 –IN BV– 45 +IN BV– 45 +IN B 03 3 TOP VIEW 7- ADA4084-2 23 (Not to Scale) 302 08 TOP VIEW 8237- (Not to Scale) 0 Figure 7. ADA4084-2, 8-Lead SOIC (R) Figure 6. ADA4084-2, 8-Lead MSOP (RM) Table 10. 8-Lead MSOP, 8-Lead SOIC, ADA4084-2 Pin Function Descriptions Pin No.MnemonicDescription 1 OUT A Output, Channel A 2 −IN A Negative Input, Channel A 3 +IN A Positive Input, Channel A 4 V− Negative Supply 5 +IN B Positive Input, Channel B 6 −IN B Negative Input, Channel B 7 OUT B Output, Channel B 8 V+ Positive Supply B OUT A 114 OUT D–IN A 213 –IN D+IN A 312 +IN DADA4084-4V+ 411 V–TOP VIEW(Not to Scale)+IN B 510 +IN C–IN B 69–IN C 2 OUT B 78OUT C 10 37- 82 0 Figure 8. ADA4084-4, 14-Lead TSSOP (RU) Table 11. 14-Lead TSSOP, ADA4804-4 Pin Function Descriptions Pin No.MnemonicDescription 1 OUT A Output, Channel A 2 −IN A Negative Input, Channel A 3 +IN A Positive Input, Channel A 4 V+ Positive Supply 5 +IN B Positive Input, Channel B 6 −IN B Negative Input, Channel B 7 OUT B Output, Channel B 8 OUT C Output, Channel C 9 −IN C Negative Input, Channel C 10 +IN C Positive Input, Channel C 11 V− Negative Supply 12 +IN D Positive Input, Channel D 13 −IN D Negative Input, Channel D 14 OUT D Output, Channel D Rev. I | Page 9 of 36 Document Outline FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS ±1.5 V CHARACTERISTICS ±5 V CHARACTERISTICS ±15 V CHARACTERISTICS APPLICATIONS INFORMATION FUNCTIONAL DESCRIPTION START-UP CHARACTERISTICS INPUT PROTECTION OUTPUT PHASE REVERSAL DESIGNING LOW NOISE CIRCUITS IN SINGLE-SUPPLY APPLICATIONS COMPARATOR OPERATION LONG-TERM DRIFT TEMPERATURE HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
