Datasheet AD8011 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 300 MHz Current Feedback Amplifier |
| 页数 / 页 | 16 / 5 — Typical Performance Characteristics–AD8011. 20mV. 5ns. 4V STEP. 2V STEP. … |
| 修订版 | C |
| 文件格式/大小 | PDF / 224 Kb |
| 文件语言 | 英语 |
Typical Performance Characteristics–AD8011. 20mV. 5ns. 4V STEP. 2V STEP. 800mV. 10ns. 6.5. G = +2. 6.4. VIN = 100mV p-p. RL = 1k. 6.3. RF = 1k
该数据表的模型线
文件文字版本

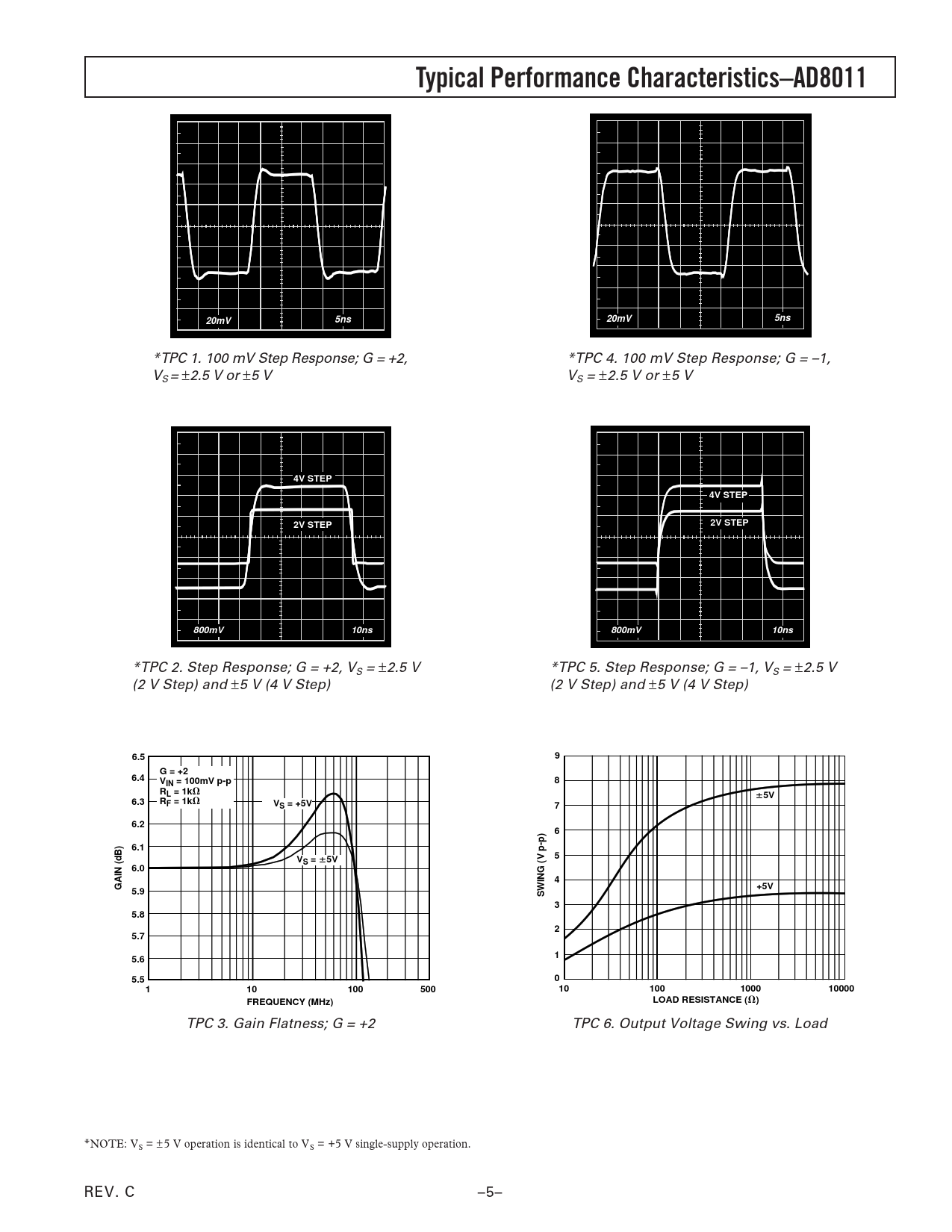

Typical Performance Characteristics–AD8011 20mV 5ns 20mV 5ns
*TPC 1. 100 mV Step Response; G = +2, *TPC 4. 100 mV Step Response; G = –1, VS = ±2.5 V or ±5 V VS = ±2.5 V or ±5 V
4V STEP 4V STEP 2V STEP 2V STEP 800mV 10ns 800mV 10ns
*TPC 2. Step Response; G = +2, VS = ±2.5 V *TPC 5. Step Response; G = –1, VS = ±2.5 V (2 V Step) and ±5 V (4 V Step) (2 V Step) and ±5 V (4 V Step)
6.5 9 G = +2 6.4 VIN = 100mV p-p 8 RL = 1k
⍀ ⴞ
5V 6.3 RF = 1k
⍀
VS = +5V 7 6.2 6 6.1 V 5 S =
ⴞ
5V 6.0 4 GAIN (dB) +5V 5.9 SWING (V p-p) 3 5.8 2 5.7 5.6 1 5.5 0 1 10 100 500 10 100 1000 10000 FREQUENCY (MHz) LOAD RESISTANCE (
⍀
)
TPC 3. Gain Flatness; G = +2 TPC 6. Output Voltage Swing vs. Load *NOTE: VS = ± 5 V operation is identical to VS = +5 V single-supply operation. REV. C –5– Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ORDERING GUIDE Typical Performance Characteristics THEORY OF OPERATION DC GAIN CHARACTERISTICS AC TRANSFER CHARACTERISTICS DRIVING CAPACITIVE LOADS OPTIMIZING FLATNESS INCREASING BW AT HIGH GAINS DRIVING A SINGLE-SUPPLY A/D CONVERTER LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS Revision History
