Datasheet OP200 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Dual Low Offset, Low Power Operational Amplifier |
| 页数 / 页 | 16 / 6 — OP200. Data Sheet. 1/2. 1 20V p-p @ 10Hz. 50Ω. CHANNEL SEPARATION = 20 … |
| 修订版 | G |
| 文件格式/大小 | PDF / 363 Kb |
| 文件语言 | 英语 |

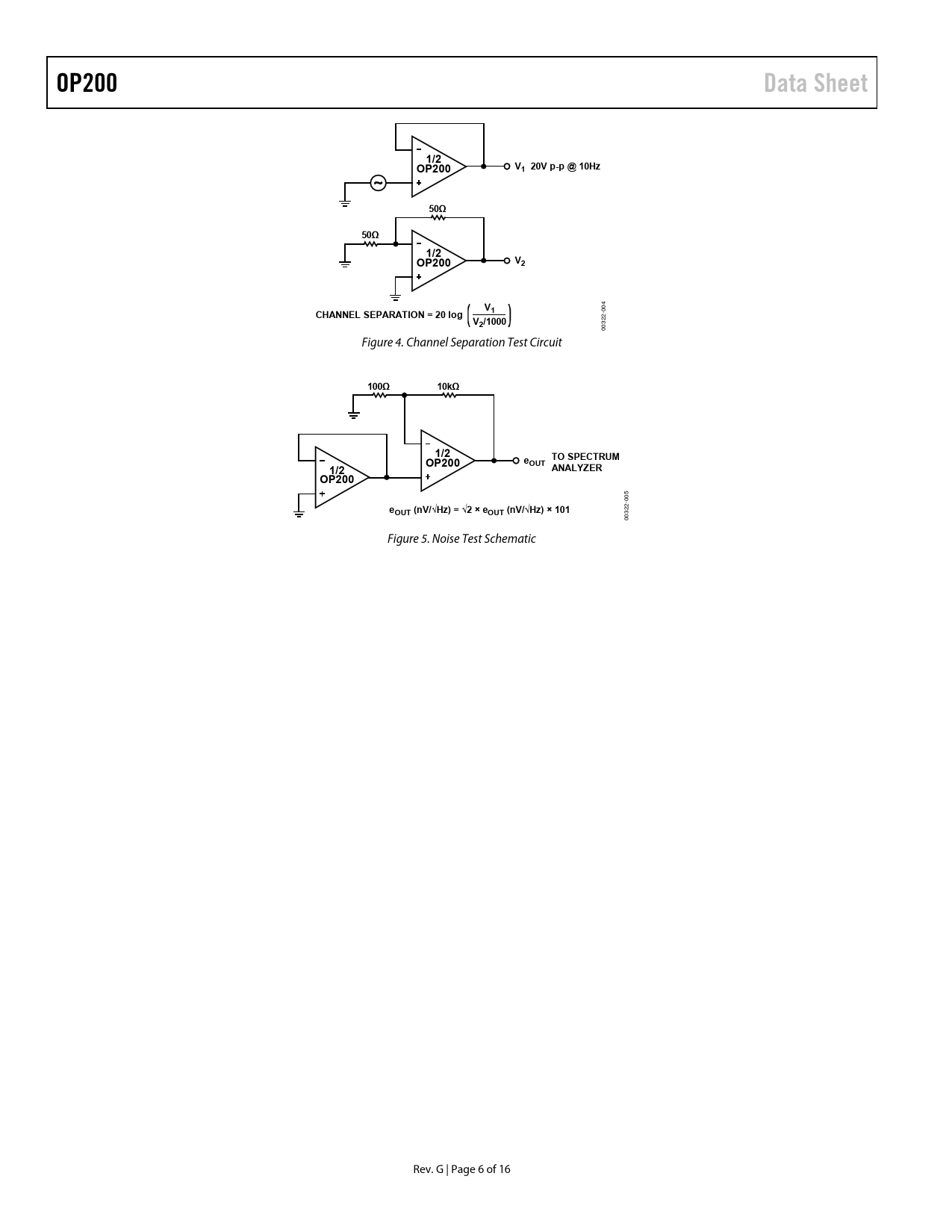

OP200. Data Sheet. 1/2. 1 20V p-p @ 10Hz. 50Ω. CHANNEL SEPARATION = 20 log V. 2/1000. 100Ω. 10kΩ. TO SPECTRUM. OUT ANALYZER
该数据表的模型线
文件文字版本
OP200 Data Sheet 1/2 V OP200 1 20V p-p @ 10Hz 50Ω 50Ω 1/2 V OP200 2
4
V1
-00
CHANNEL SEPARATION = 20 log V
322
2/1000
00 Figure 4. Channel Separation Test Circuit
100Ω 10kΩ 1/2 OP200 e TO SPECTRUM OUT ANALYZER 1/2 OP200
05 0 2-
e
32
OUT (nV/√Hz) = √2 × eOUT (nV/√Hz) × 101
00 Figure 5. Noise Test Schematic Rev. G | Page 6 of 16 Document Outline FEATURES PIN CONNECTIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION DUAL LOW POWER INSTRUMENTATION AMPLIFIER PRECISION ABSOLUTE VALUE AMPLIFIER PRECISION CURRENT PUMP DUAL 12-BIT VOLTAGE OUTPUT DAC DUAL PRECISION VOLTAGE REFERENCE PROGRAMMABLE HIGH RESOLUTION WINDOW COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
