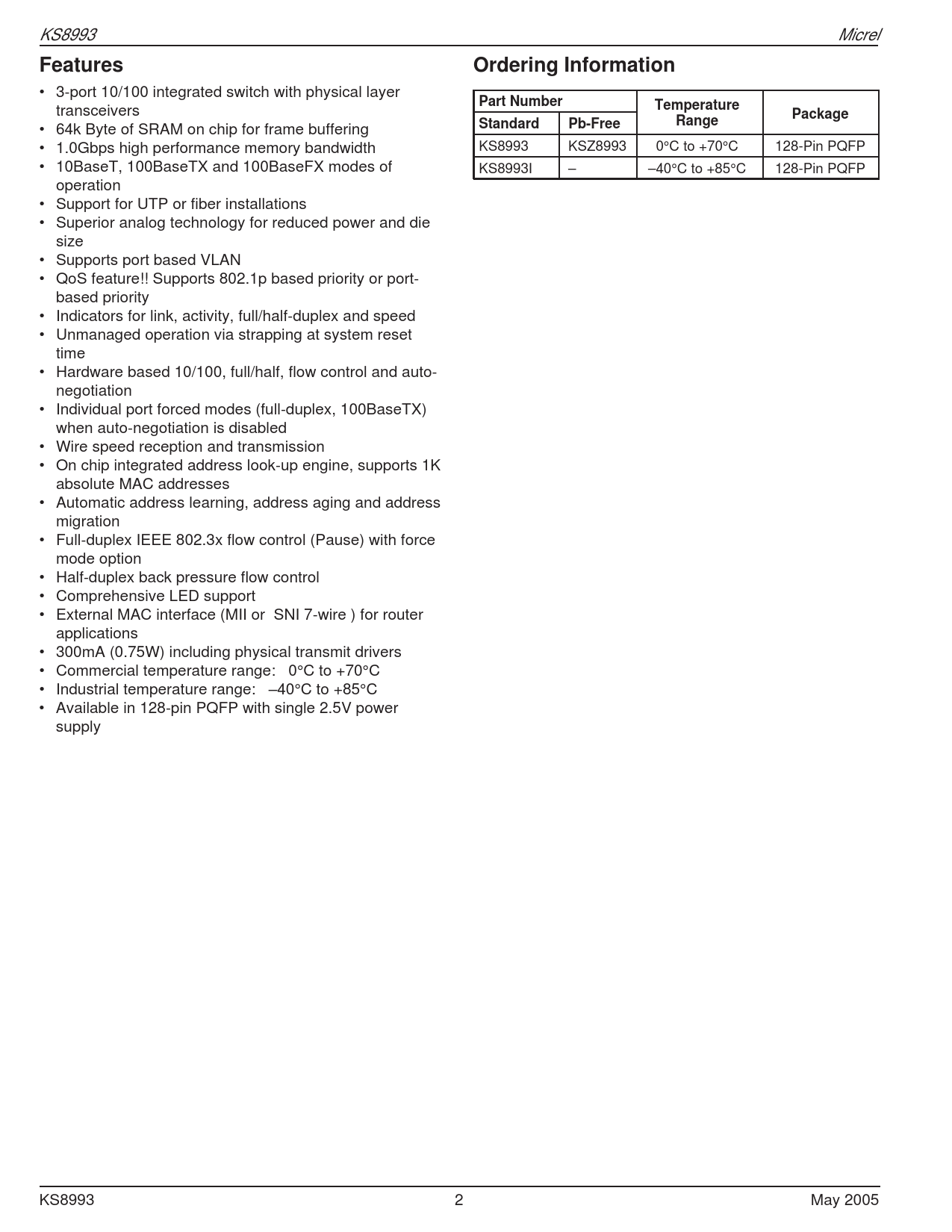

KS8993 Micrel
Features Ordering Information
• 3-port 10/100 integrated switch with physical layer
Part Number Temperature
transceivers
Package Standard Pb-Free Range
• 64k Byte of SRAM on chip for frame buffering • 1.0Gbps high performance memory bandwidth KS8993 KSZ8993 0°C to +70°C 128-Pin PQFP • 10BaseT, 100BaseTX and 100BaseFX modes of KS8993I – –40°C to +85°C 128-Pin PQFP operation • Support for UTP or fiber installations • Superior analog technology for reduced power and die size • Supports port based VLAN • QoS feature!! Supports 802.1p based priority or port- based priority • Indicators for link, activity, full/half-duplex and speed • Unmanaged operation via strapping at system reset time • Hardware based 10/100, full/half, flow control and auto- negotiation • Individual port forced modes (full-duplex, 100BaseTX) when auto-negotiation is disabled • Wire speed reception and transmission • On chip integrated address look-up engine, supports 1K absolute MAC addresses • Automatic address learning, address aging and address migration • Full-duplex IEEE 802.3x flow control (Pause) with force mode option • Half-duplex back pressure flow control • Comprehensive LED support • External MAC interface (MII or SNI 7-wire ) for router applications • 300mA (0.75W) including physical transmit drivers • Commercial temperature range: 0°C to +70°C • Industrial temperature range: –40°C to +85°C • Available in 128-pin PQFP with single 2.5V power supply KS8993 2 May 2005
