Datasheet LT3001 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 36V 4W No-Opto Isolated Flyback Converter |
| 页数 / 页 | 10 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| 文件格式/大小 | PDF / 626 Kb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
该数据表的模型线
文件文字版本
LT3001

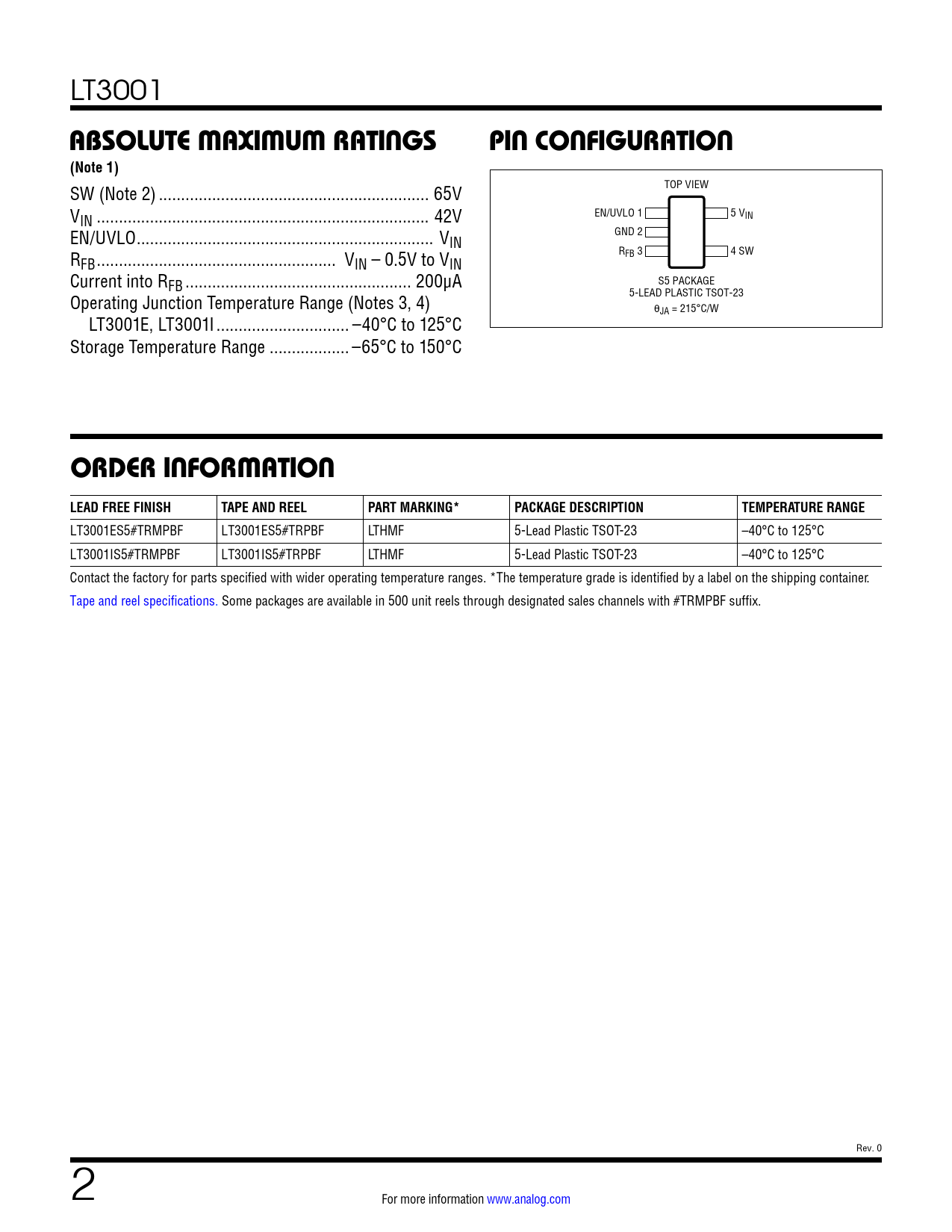

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SW (Note 2) ... 65V TOP VIEW VIN ... 42V EN/UVLO 1 5 VIN EN/UVLO ... V GND 2 IN R RFB 3 4 SW FB .. VIN – 0.5V to VIN Current into RFB ... 200µA S5 PACKAGE Operating Junction Temperature Range (Notes 3, 4) 5-LEAD PLASTIC TSOT-23 θJA = 215°C/W LT3001E, LT3001I .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3001ES5#TRMPBF LT3001ES5#TRPBF LTHMF 5-Lead Plastic TSOT-23 –40°C to 125°C LT3001IS5#TRMPBF LT3001IS5#TRPBF LTHMF 5-Lead Plastic TSOT-23 –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Operation Applications Information Package Description
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SW (Note 2) ... 65V TOP VIEW VIN ... 42V EN/UVLO 1 5 VIN EN/UVLO ... V GND 2 IN R RFB 3 4 SW FB .. VIN – 0.5V to VIN Current into RFB ... 200µA S5 PACKAGE Operating Junction Temperature Range (Notes 3, 4) 5-LEAD PLASTIC TSOT-23 θJA = 215°C/W LT3001E, LT3001I .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3001ES5#TRMPBF LT3001ES5#TRPBF LTHMF 5-Lead Plastic TSOT-23 –40°C to 125°C LT3001IS5#TRMPBF LT3001IS5#TRPBF LTHMF 5-Lead Plastic TSOT-23 –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Operation Applications Information Package Description
