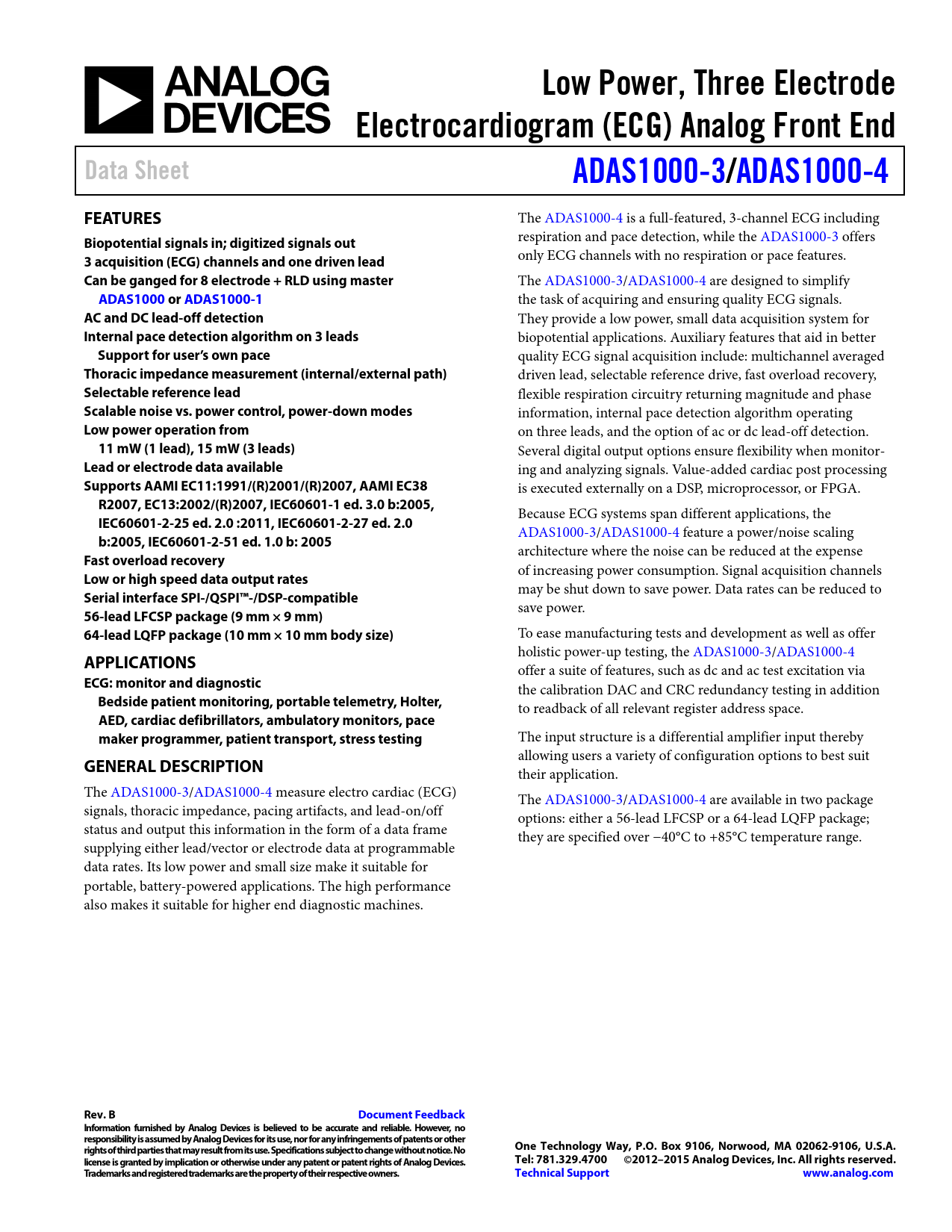

Low Power, Three Electrode. Electrocardiogram (ECG) Analog Front End. Data Sheet. ADAS1000-3/. ADAS1000-. FEATURES
该数据表的模型线
文件文字版本
Low Power, Three Electrode Electrocardiogram (ECG) Analog Front End Data Sheet ADAS1000-3/ ADAS1000- 4 FEATURES
The ADAS1000-4 is a full-featured, 3-channel ECG including
Biopotential signals in; digitized signals out
respiration and pace detection, while the ADAS1000-3 offers
3 acquisition (ECG) channels and one driven lead
only ECG channels with no respiration or pace features.
Can be ganged for 8 electrode + RLD using master
The ADAS1000-3/ADAS1000-4 are designed to simplify
ADAS1000 or ADAS1000-1
the task of acquiring and ensuring quality ECG signals.
AC and DC lead-off detection
They provide a low power, small data acquisition system for
Internal pace detection algorithm on 3 leads
biopotential applications. Auxiliary features that aid in better
Support for user’s own pace
quality ECG signal acquisition include: multichannel averaged
Thoracic impedance measurement (internal/external path)
driven lead, selectable reference drive, fast overload recovery,
Selectable reference lead
flexible respiration circuitry returning magnitude and phase
Scalable noise vs. power control, power-down modes
information, internal pace detection algorithm operating
Low power operation from
on three leads, and the option of ac or dc lead-off detection.
11 mW (1 lead), 15 mW (3 leads)
Several digital output options ensure flexibility when monitor-
Lead or electrode data available
ing and analyzing signals. Value-added cardiac post processing
Supports AAMI EC11:1991/(R)2001/(R)2007, AAMI EC38
is executed external y on a DSP, microprocessor, or FPGA.
R2007, EC13:2002/(R)2007, IEC60601-1 ed. 3.0 b:2005,
Because ECG systems span different applications, the
IEC60601-2-25 ed. 2.0 :2011, IEC60601-2-27 ed. 2.0
ADAS1000-3/ADAS1000-4 feature a power/noise scaling
b:2005, IEC60601-2-51 ed. 1.0 b: 2005
architecture where the noise can be reduced at the expense
Fast overload recovery
of increasing power consumption. Signal acquisition channels
Low or high speed data output rates
may be shut down to save power. Data rates can be reduced to
Serial interface SPI-/QSPI™-/DSP-compatible
save power.
56-lead LFCSP package (9 mm × 9 mm) 64-lead LQFP package (10 mm × 10 mm body size)
To ease manufacturing tests and development as well as offer holistic power-up testing, the ADAS1000-3/ADAS1000-4
APPLICATIONS
offer a suite of features, such as dc and ac test excitation via
ECG: monitor and diagnostic
the calibration DAC and CRC redundancy testing in addition
Bedside patient monitoring, portable telemetry, Holter,
to readback of all relevant register address space.
AED, cardiac defibrillators, ambulatory monitors, pace maker programmer, patient transport, stress testing
The input structure is a differential amplifier input thereby allowing users a variety of configuration options to best suit
GENERAL DESCRIPTION
their application. The ADAS1000-3/ADAS1000-4 measure electro cardiac (ECG) The ADAS1000-3/ADAS1000-4 are available in two package signals, thoracic impedance, pacing artifacts, and lead-on/off options: either a 56-lead LFCSP or a 64-lead LQFP package; status and output this information in the form of a data frame they are specified over −40°C to +85°C temperature range. supplying either lead/vector or electrode data at programmable data rates. Its low power and small size make it suitable for portable, battery-powered applications. The high performance also makes it suitable for higher end diagnostic machines.
