Datasheet TGM-NS, TDM-NE (HALO)
| 制造商 | HALO |
| 描述 | 1.5kVrms DC/DC Converter. 6 Pin SMD or DIL Isolation Modules |
| 页数 / 页 | 3 / 1 — Conflict. FREE. SMD. DIL. Turns Ratio (±3%). PRI LL. PRI OCL. PRI DCR. ET … |
| 文件格式/大小 | PDF / 603 Kb |
| 文件语言 | 英语 |
Conflict. FREE. SMD. DIL. Turns Ratio (±3%). PRI LL. PRI OCL. PRI DCR. ET Constant. Part Number. PRI : SEC. (µH Typ.). (Ω Max.). (V-µs Min.)
该数据表的模型线
文件文字版本

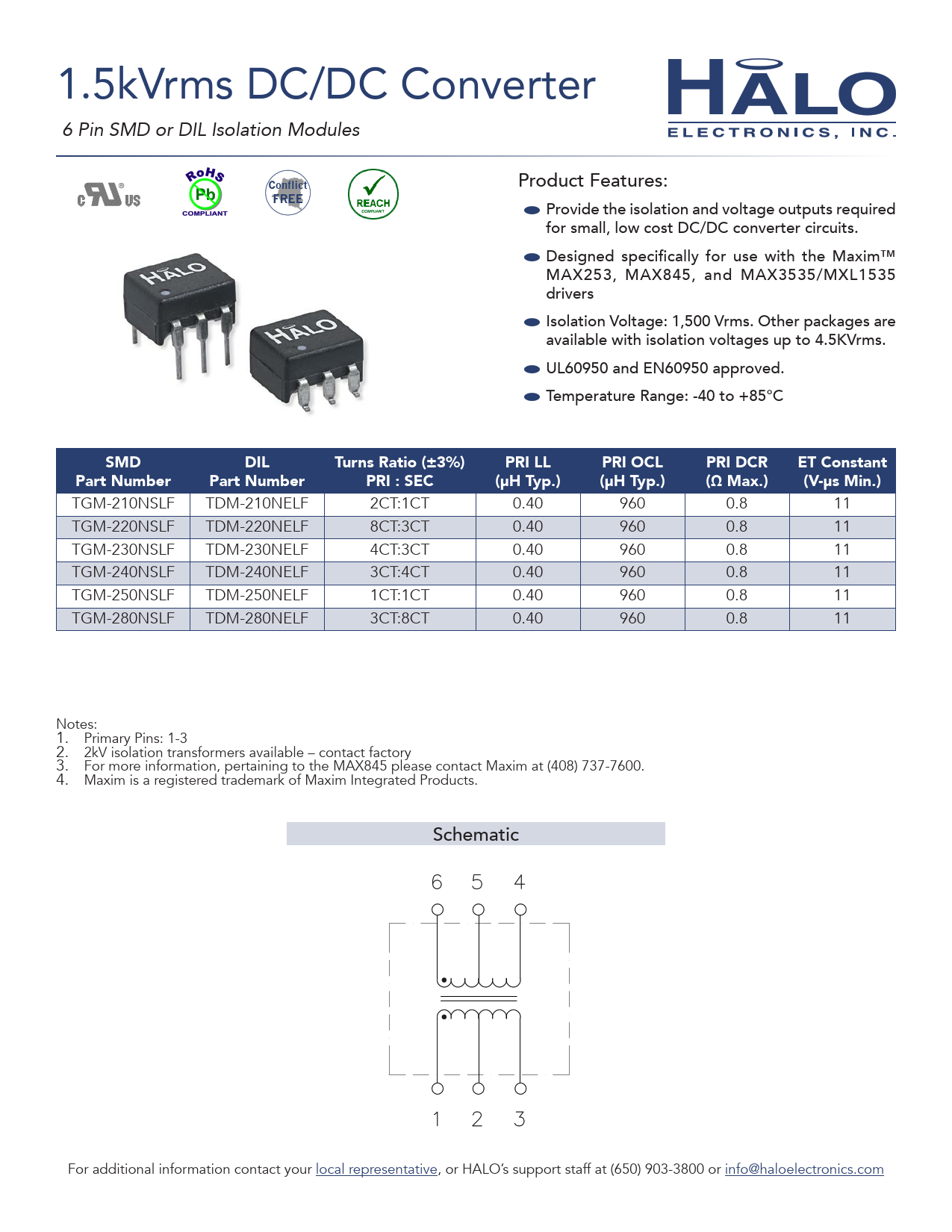

1.5kVrms DC/DC Converter 6 Pin SMD or DIL Isolation Modules
Conflict
Product Features:
FREE
Pr ovide the isolation and voltage outputs required for small, low cost DC/DC converter circuits. D esigned specifical y for use with the Maxim™ MAX253, MAX845, and MAX3535/MXL1535 drivers Isolation Voltage: 1,500 Vrms. Other packages are available with isolation voltages up to 4.5KVrms. UL60950 and EN60950 appr oved. T emperature Range: -40 to +85°C
SMD DIL Turns Ratio (±3%) PRI LL PRI OCL PRI DCR ET Constant Part Number Part Number PRI : SEC (µH Typ.) (µH Typ.) (Ω Max.) (V-µs Min.)
TGM-210NSLF TDM-210NELF 2CT:1CT 0.40 960 0.8 11 TGM-220NSLF TDM-220NELF 8CT:3CT 0.40 960 0.8 11 TGM-230NSLF TDM-230NELF 4CT:3CT 0.40 960 0.8 11 TGM-240NSLF TDM-240NELF 3CT:4CT 0.40 960 0.8 11 TGM-250NSLF TDM-250NELF 1CT:1CT 0.40 960 0.8 11 TGM-280NSLF TDM-280NELF 3CT:8CT 0.40 960 0.8 11 Notes: 1. Primary Pins: 1-3 2. 2kV isolation transformers available – contact factory 3. For more information, pertaining to the MAX845 please contact Maxim at (408) 737-7600. 4. Maxim is a registered trademark of Maxim Integrated Products. Schematic For additional information contact your local representative, or HALO’s support staff at (650) 903-3800 or info@haloelectronics.com
Conflict
Product Features:
FREE
Pr ovide the isolation and voltage outputs required for small, low cost DC/DC converter circuits. D esigned specifical y for use with the Maxim™ MAX253, MAX845, and MAX3535/MXL1535 drivers Isolation Voltage: 1,500 Vrms. Other packages are available with isolation voltages up to 4.5KVrms. UL60950 and EN60950 appr oved. T emperature Range: -40 to +85°C
SMD DIL Turns Ratio (±3%) PRI LL PRI OCL PRI DCR ET Constant Part Number Part Number PRI : SEC (µH Typ.) (µH Typ.) (Ω Max.) (V-µs Min.)
TGM-210NSLF TDM-210NELF 2CT:1CT 0.40 960 0.8 11 TGM-220NSLF TDM-220NELF 8CT:3CT 0.40 960 0.8 11 TGM-230NSLF TDM-230NELF 4CT:3CT 0.40 960 0.8 11 TGM-240NSLF TDM-240NELF 3CT:4CT 0.40 960 0.8 11 TGM-250NSLF TDM-250NELF 1CT:1CT 0.40 960 0.8 11 TGM-280NSLF TDM-280NELF 3CT:8CT 0.40 960 0.8 11 Notes: 1. Primary Pins: 1-3 2. 2kV isolation transformers available – contact factory 3. For more information, pertaining to the MAX845 please contact Maxim at (408) 737-7600. 4. Maxim is a registered trademark of Maxim Integrated Products. Schematic For additional information contact your local representative, or HALO’s support staff at (650) 903-3800 or info@haloelectronics.com
