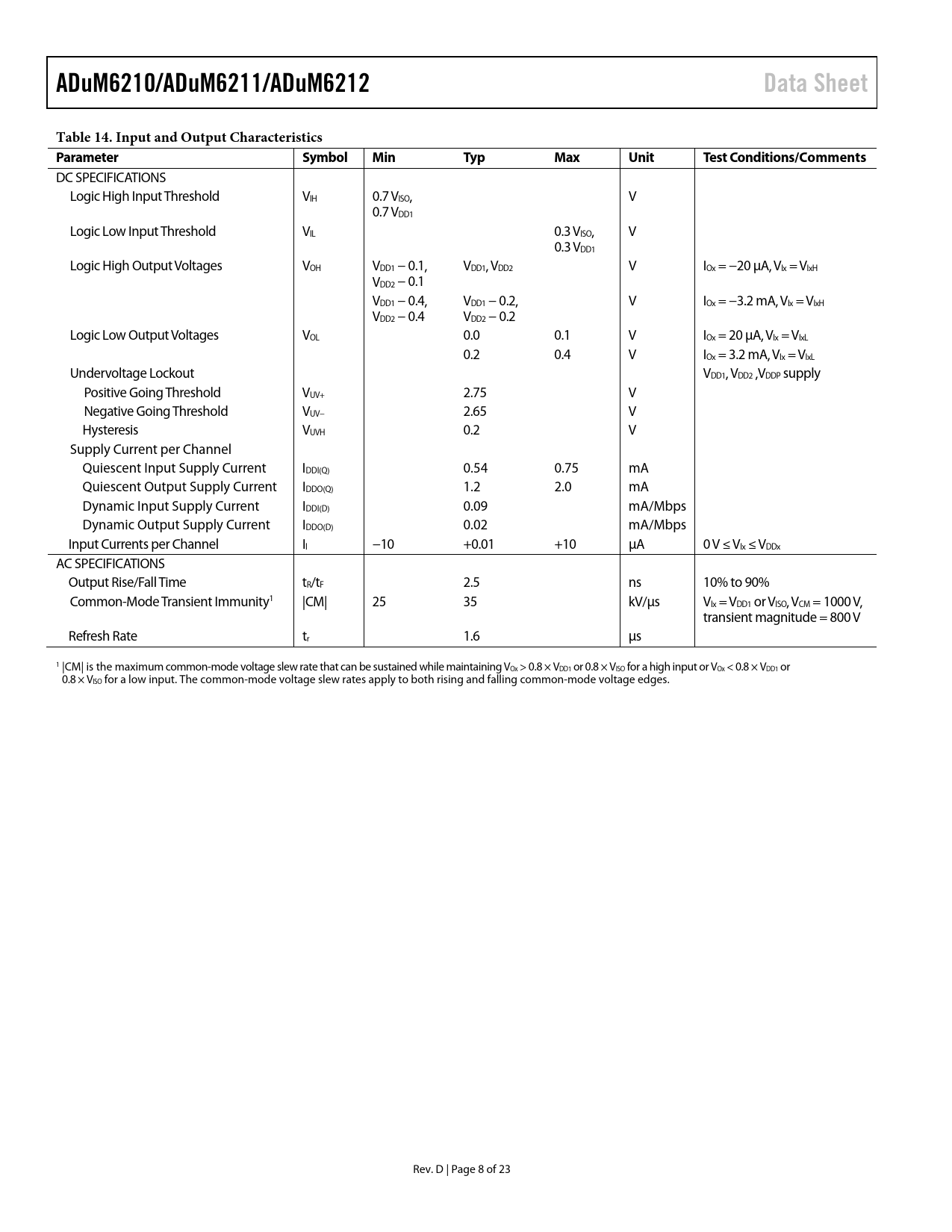

ADuM6210/ADuM6211/ADuM6212 Data Sheet Table 14. Input and Output Characteristics Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC SPECIFICATIONS Logic High Input Threshold VIH 0.7 VISO, V 0.7 VDD1 Logic Low Input Threshold VIL 0.3 VISO, V 0.3 VDD1 Logic High Output Voltages VOH VDD1 − 0.1, VDD1, VDD2 V IOx = −20 μA, VIx = VIxH VDD2 − 0.1 VDD1 − 0.4, VDD1 − 0.2, V IOx = −3.2 mA, VIx = VIxH VDD2 − 0.4 VDD2 − 0.2 Logic Low Output Voltages VOL 0.0 0.1 V IOx = 20 μA, VIx = VIxL 0.2 0.4 V IOx = 3.2 mA, VIx = VIxL Undervoltage Lockout VDD1, VDD2 ,VDDP supply Positive Going Threshold VUV+ 2.75 V Negative Going Threshold VUV− 2.65 V Hysteresis VUVH 0.2 V Supply Current per Channel Quiescent Input Supply Current IDDI(Q) 0.54 0.75 mA Quiescent Output Supply Current IDDO(Q) 1.2 2.0 mA Dynamic Input Supply Current IDDI(D) 0.09 mA/Mbps Dynamic Output Supply Current IDDO(D) 0.02 mA/Mbps Input Currents per Channel II −10 +0.01 +10 μA 0 V ≤ VIx ≤ VDDx AC SPECIFICATIONS Output Rise/Fall Time tR/tF 2.5 ns 10% to 90% Common-Mode Transient Immunity1 |CM| 25 35 kV/μs VIx = VDD1 or VISO, VCM = 1000 V, transient magnitude = 800 V Refresh Rate tr 1.6 μs 1 |CM| is the maximum common-mode voltage slew rate that can be sustained while maintaining VOx > 0.8 × VDD1 or 0.8 × VISO for a high input or VOx < 0.8 × VDD1 or 0.8 × VISO for a low input. The common-mode voltage slew rates apply to both rising and falling common-mode voltage edges. Rev. D | Page 8 of 23 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY PACKAGE CHARACTERISTICS REGULATORY APPROVALS INSULATION AND SAFETY-RELATED SPECIFICATIONS DIN V VDE V 0884-10 (VDE V 0884-10) INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLES TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION PCB LAYOUT THERMAL ANALYSIS PROPAGATION DELAY PARAMETERS EMI CONSIDERATIONS DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY POWER CONSUMPTION INSULATION LIFETIME OUTLINE DIMENSIONS ORDERING GUIDE
