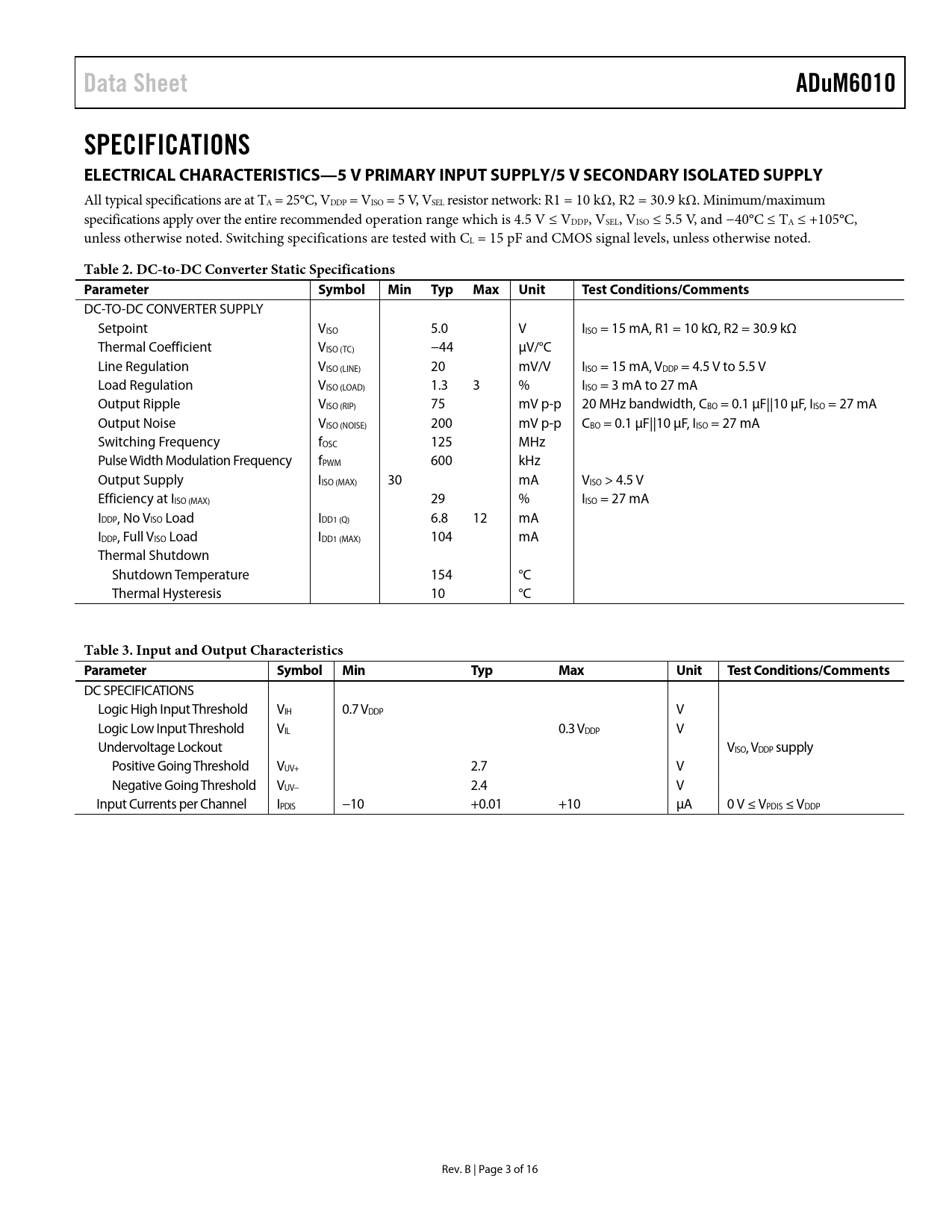

Data Sheet. ADuM6010. SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY

Data Sheet ADuM6010 SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY

该数据表的模型线

文件文字版本

Data Sheet ADuM6010 SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY
All typical specifications are at TA = 25°C, VDDP = VISO = 5 V, VSEL resistor network: R1 = 10 kΩ, R2 = 30.9 kΩ. Minimum/maximum specifications apply over the entire recommended operation range which is 4.5 V ≤ VDDP, VSEL, VISO ≤ 5.5 V, and −40°C ≤ TA ≤ +105°C, unless otherwise noted. Switching specifications are tested with CL = 15 pF and CMOS signal levels, unless otherwise noted.
Table 2. DC-to-DC Converter Static Specifications Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC-TO-DC CONVERTER SUPPLY Setpoint VISO 5.0 V IISO = 15 mA, R1 = 10 kΩ, R2 = 30.9 kΩ Thermal Coefficient VISO (TC) −44 μV/°C Line Regulation VISO (LINE) 20 mV/V IISO = 15 mA, VDDP = 4.5 V to 5.5 V Load Regulation VISO (LOAD) 1.3 3 % IISO = 3 mA to 27 mA Output Ripple VISO (RIP) 75 mV p-p 20 MHz bandwidth, CBO = 0.1 µF||10 µF, IISO = 27 mA Output Noise VISO (NOISE) 200 mV p-p CBO = 0.1 µF||10 µF, IISO = 27 mA Switching Frequency fOSC 125 MHz Pulse Width Modulation Frequency fPWM 600 kHz Output Supply IISO (MAX) 30 mA VISO > 4.5 V Efficiency at IISO (MAX) 29 % IISO = 27 mA IDDP, No VISO Load IDD1 (Q) 6.8 12 mA IDDP, Full VISO Load IDD1 (MAX) 104 mA Thermal Shutdown Shutdown Temperature 154 °C Thermal Hysteresis 10 °C
Table 3. Input and Output Characteristics Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC SPECIFICATIONS Logic High Input Threshold VIH 0.7 VDDP V Logic Low Input Threshold VIL 0.3 VDDP V Undervoltage Lockout VISO, VDDP supply Positive Going Threshold VUV+ 2.7 V Negative Going Threshold VUV− 2.4 V Input Currents per Channel IPDIS −10 +0.01 +10 µA 0 V ≤ VPDIS ≤ VDDP Rev. B | Page 3 of 16 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Characteristics—5 V Primary Input Supply/5 V Secondary Isolated Supply Electrical Characteristics—3.3 V Primary Input Supply/3.3 V Secondary Isolated Supply Electrical Characteristics—5 V Primary Input Supply/3.3 V Secondary Isolated Supply Package Characteristics Regulatory Approvals Insulation and Safety-Related Specifications DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Truth Table Typical Performance Characteristics Applications Information PCB Layout Thermal Analysis EMI Considerations Insulation Lifetime Outline Dimensions Ordering Guide
