Datasheet ADuM5401, ADuM5402, ADuM5403, ADuM5404 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Quad-Channel, 2.5 kV Isolators with Integrated DC-to-DC Converter |
| 页数 / 页 | 29 / 5 — Data Sheet. ADuM5401/ADuM5402/ADuM5403/ADuM5404. Table 5. Input and … |
| 修订版 | E |
| 文件格式/大小 | PDF / 457 Kb |
| 文件语言 | 英语 |

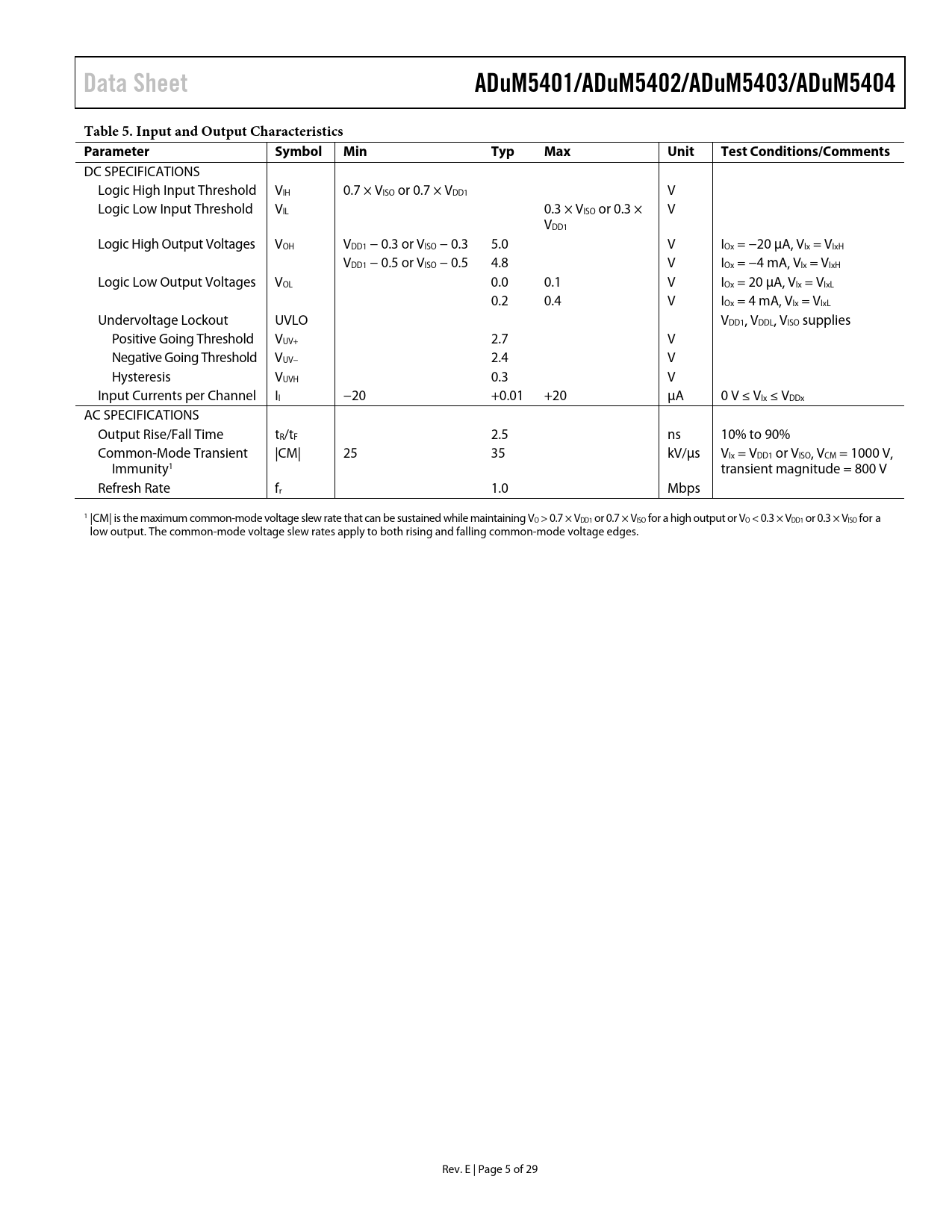

Data Sheet. ADuM5401/ADuM5402/ADuM5403/ADuM5404. Table 5. Input and Output Characteristics Parameter Symbol. Min Typ. Max. Unit
该数据表的模型线
- ADUM5401ARWZ ADUM5401ARWZ-RL ADUM5401CRWZ ADUM5401CRWZ-RL ADUM5401WCRWZ ADUM5401WCRWZ-1 ADUM5401WCRWZ-1RL ADUM5401WCRWZ-RL
- ADUM5402ARWZ ADUM5402ARWZ-RL ADUM5402CRWZ ADUM5402CRWZ-RL ADUM5402WCRWZ ADUM5402WCRWZ-1 ADUM5402WCRWZ-1RL ADUM5402WCRWZ-RL
文件文字版本
Data Sheet ADuM5401/ADuM5402/ADuM5403/ADuM5404 Table 5. Input and Output Characteristics Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC SPECIFICATIONS Logic High Input Threshold VIH 0.7 × VISO or 0.7 × VDD1 V Logic Low Input Threshold VIL 0.3 × VISO or 0.3 × V VDD1 Logic High Output Voltages VOH VDD1 − 0.3 or VISO − 0.3 5.0 V IOx = −20 μA, VIx = VIxH VDD1 − 0.5 or VISO − 0.5 4.8 V IOx = −4 mA, VIx = VIxH Logic Low Output Voltages VOL 0.0 0.1 V IOx = 20 μA, VIx = VIxL 0.2 0.4 V IOx = 4 mA, VIx = VIxL Undervoltage Lockout UVLO VDD1, VDDL, VISO supplies Positive Going Threshold VUV+ 2.7 V Negative Going Threshold VUV− 2.4 V Hysteresis VUVH 0.3 V Input Currents per Channel II −20 +0.01 +20 μA 0 V ≤ VIx ≤ VDDx AC SPECIFICATIONS Output Rise/Fall Time tR/tF 2.5 ns 10% to 90% Common-Mode Transient |CM| 25 35 kV/μs VIx = VDD1 or VISO, VCM = 1000 V, Immunity1 transient magnitude = 800 V Refresh Rate fr 1.0 Mbps 1 |CM| is the maximum common-mode voltage slew rate that can be sustained while maintaining VO > 0.7 × VDD1 or 0.7 × VISO for a high output or VO < 0.3 × VDD1 or 0.3 × VISO for a low output. The common-mode voltage slew rates apply to both rising and falling common-mode voltage edges. Rev. E | Page 5 of 29 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY PACKAGE CHARACTERISTICS REGULATORY INFORMATION INSULATION AND SAFETY-RELATED SPECIFICATIONS IEC 60747-5-2 (VDE 0884, PART 2):2003-01 INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS INFORMATION PCB LAYOUT THERMAL ANALYSIS PROPAGATION DELAY-RELATED PARAMETERS START-UP BEHAVIOR EMI CONSIDERATIONS DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY POWER CONSUMPTION POWER CONSIDERATIONS INCREASING AVAILABLE POWER INSULATION LIFETIME OUTLINE DIMENSIONS ORDERING GUIDE NOTES NOTES
DC SPECIFICATIONS Logic High Input Threshold VIH 0.7 × VISO or 0.7 × VDD1 V Logic Low Input Threshold VIL 0.3 × VISO or 0.3 × V VDD1 Logic High Output Voltages VOH VDD1 − 0.3 or VISO − 0.3 5.0 V IOx = −20 μA, VIx = VIxH VDD1 − 0.5 or VISO − 0.5 4.8 V IOx = −4 mA, VIx = VIxH Logic Low Output Voltages VOL 0.0 0.1 V IOx = 20 μA, VIx = VIxL 0.2 0.4 V IOx = 4 mA, VIx = VIxL Undervoltage Lockout UVLO VDD1, VDDL, VISO supplies Positive Going Threshold VUV+ 2.7 V Negative Going Threshold VUV− 2.4 V Hysteresis VUVH 0.3 V Input Currents per Channel II −20 +0.01 +20 μA 0 V ≤ VIx ≤ VDDx AC SPECIFICATIONS Output Rise/Fall Time tR/tF 2.5 ns 10% to 90% Common-Mode Transient |CM| 25 35 kV/μs VIx = VDD1 or VISO, VCM = 1000 V, Immunity1 transient magnitude = 800 V Refresh Rate fr 1.0 Mbps 1 |CM| is the maximum common-mode voltage slew rate that can be sustained while maintaining VO > 0.7 × VDD1 or 0.7 × VISO for a high output or VO < 0.3 × VDD1 or 0.3 × VISO for a low output. The common-mode voltage slew rates apply to both rising and falling common-mode voltage edges. Rev. E | Page 5 of 29 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY PACKAGE CHARACTERISTICS REGULATORY INFORMATION INSULATION AND SAFETY-RELATED SPECIFICATIONS IEC 60747-5-2 (VDE 0884, PART 2):2003-01 INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS INFORMATION PCB LAYOUT THERMAL ANALYSIS PROPAGATION DELAY-RELATED PARAMETERS START-UP BEHAVIOR EMI CONSIDERATIONS DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY POWER CONSUMPTION POWER CONSIDERATIONS INCREASING AVAILABLE POWER INSULATION LIFETIME OUTLINE DIMENSIONS ORDERING GUIDE NOTES NOTES
