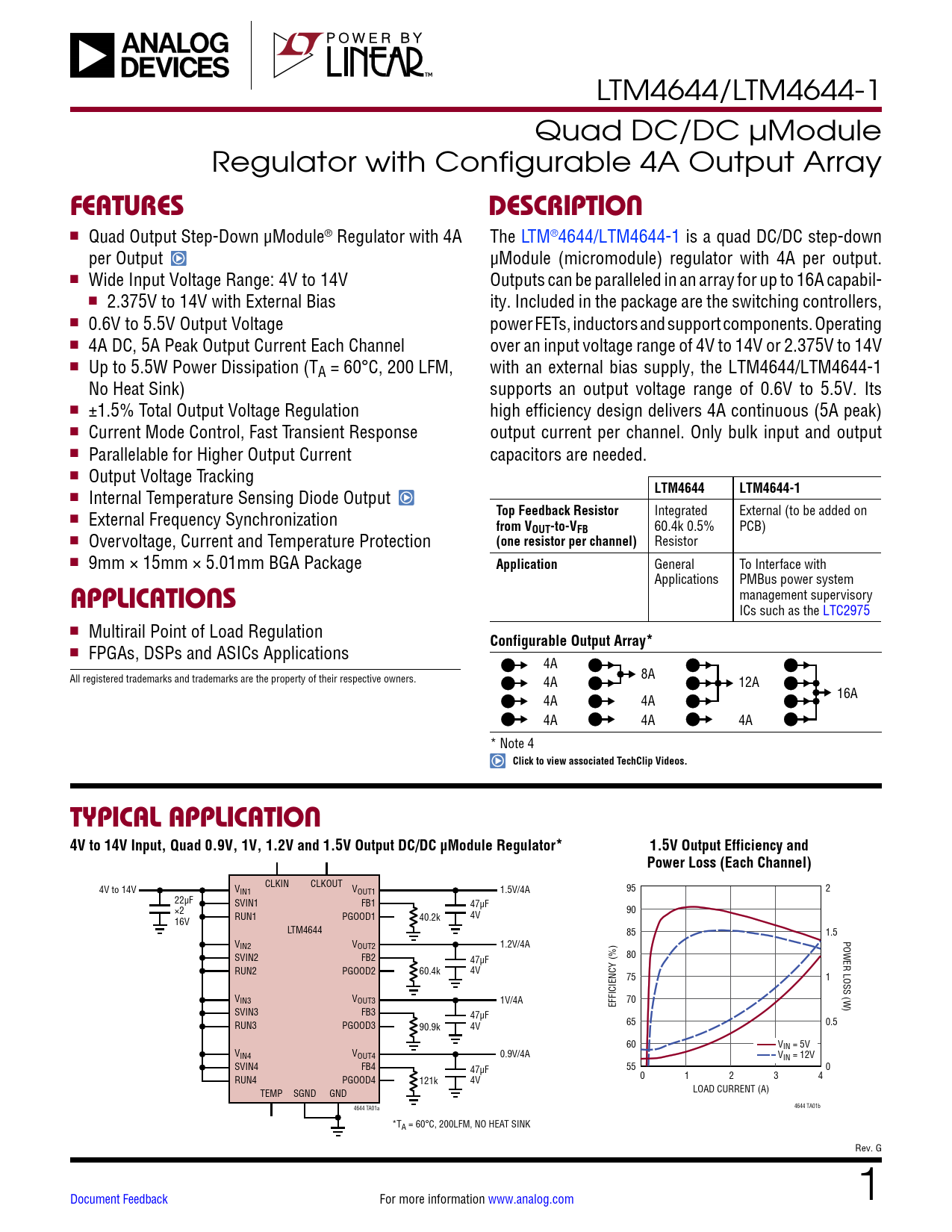

LTM4644/LTM4644-1 Quad DC/DC µModule Regulator with Configurable 4A Output Array
FEATURES DESCRIPTION
n Quad Output Step-Down µModule® Regulator with 4A The LTM®4644/LTM4644-1 is a quad DC/DC step-down per Output µModule (micromodule) regulator with 4A per output. n Wide Input Voltage Range: 4V to 14V Outputs can be paralleled in an array for up to 16A capabil- n 2.375V to 14V with External Bias ity. Included in the package are the switching controllers, n 0.6V to 5.5V Output Voltage power FETs, inductors and support components. Operating n 4A DC, 5A Peak Output Current Each Channel over an input voltage range of 4V to 14V or 2.375V to 14V n Up to 5.5W Power Dissipation (TA = 60°C, 200 LFM, with an external bias supply, the LTM4644/LTM4644-1 No Heat Sink) supports an output voltage range of 0.6V to 5.5V. Its n ±1.5% Total Output Voltage Regulation high efficiency design delivers 4A continuous (5A peak) n Current Mode Control, Fast Transient Response output current per channel. Only bulk input and output n Parallelable for Higher Output Current capacitors are needed. n Output Voltage Tracking
LTM4644 LTM4644-1
n Internal Temperature Sensing Diode Output
Top Feedback Resistor
Integrated External (to be added on n External Frequency Synchronization
from VOUT-to-VFB
60.4k 0.5% PCB) n Overvoltage, Current and Temperature Protection
(one resistor per channel)
Resistor n 9mm × 15mm × 5.01mm BGA Package
Application
General To Interface with Applications PMBus power system management supervisory
APPLICATIONS
ICs such as the LTC2975 n Multirail Point of Load Regulation
Configurable Output Array*
n FPGAs, DSPs and ASICs Applications 4A All registered trademarks and trademarks are the property of their respective owners. 4A 8A 12A 4A 4A 16A 4A 4A 4A * Note 4
Click to view associated TechClip Videos. TYPICAL APPLICATION 4V to 14V Input, Quad 0.9V, 1V, 1.2V and 1.5V Output DC/DC µModule Regulator* 1.5V Output Efficiency and Power Loss (Each Channel)
