Datasheet LTM8025 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 36V, 3A Step-Down µModule Regulator |
| 页数 / 页 | 22 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| 修订版 | D |
| 文件格式/大小 | PDF / 974 Kb |
| 文件语言 | 英语 |

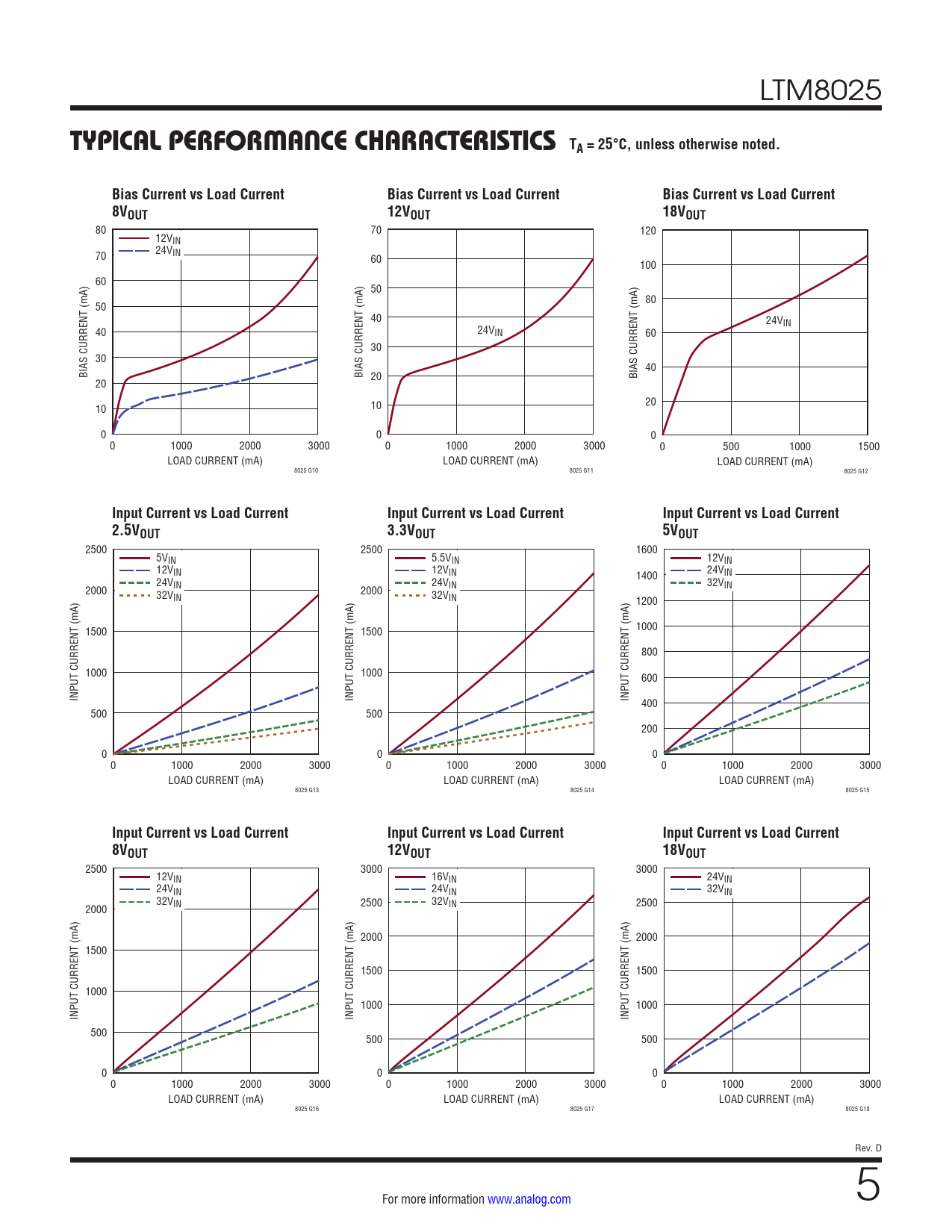

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Bias Current vs Load Current. 8VOUT. 12VOUT. 18VOUT
该数据表的模型线
文件文字版本
LTM8025
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Bias Current vs Load Current Bias Current vs Load Current Bias Current vs Load Current 8VOUT 12VOUT 18VOUT
80 70 120 12VIN 70 24VIN 60 100 60 50 80 50 40 24VIN 40 24VIN 60 30 30 40 BIAS CURRENT (mA) BIAS CURRENT (mA) 20 BIAS CURRENT (mA) 20 20 10 10 0 0 0 0 1000 2000 3000 0 1000 2000 3000 0 500 1000 1500 LOAD CURRENT (mA) LOAD CURRENT (mA) LOAD CURRENT (mA) 8025 G10 8025 G11 8025 G12
Input Current vs Load Current Input Current vs Load Current Input Current vs Load Current 2.5VOUT 3.3VOUT 5VOUT
2500 2500 1600 5VIN 5.5VIN 12VIN 12VIN 12VIN 24VIN 1400 24VIN 24V 32V 2000 IN IN 32V 2000 IN 32VIN 1200 1500 1500 1000 800 1000 1000 600 INPUT CURRENT (mA) INPUT CURRENT (mA) INPUT CURRENT (mA) 400 500 500 200 0 0 0 0 1000 2000 3000 0 1000 2000 3000 0 1000 2000 3000 LOAD CURRENT (mA) LOAD CURRENT (mA) LOAD CURRENT (mA) 8025 G13 8025 G14 8025 G15
Input Current vs Load Current Input Current vs Load Current Input Current vs Load Current 8VOUT 12VOUT 18VOUT
2500 3000 3000 12VIN 16VIN 24VIN 24VIN 24VIN 32VIN 32VIN 2500 32V 2500 2000 IN 2000 2000 1500 1500 1500 1000 1000 1000 INPUT CURRENT (mA) INPUT CURRENT (mA) INPUT CURRENT (mA) 500 500 500 0 0 0 0 1000 2000 3000 0 1000 2000 3000 0 1000 2000 3000 LOAD CURRENT (mA) LOAD CURRENT (mA) LOAD CURRENT (mA) 8025 G16 8025 G17 8025 G18 Rev. D For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Package Photography Typical Application Related Parts
