Datasheet LTC4368 (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | 100V UV/OV and Reverse Protection Controller with Bidirectional Circuit Breaker |
| 页数 / 页 | 22 / 8 — BLOCK DIAGRAM |
| 修订版 | B |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
BLOCK DIAGRAM
该数据表的模型线
- LTC4368CDD-1#PBF LTC4368CDD-1#TRPBF LTC4368CDD-2#PBF LTC4368CDD-2#TRPBF LTC4368CMS-1#PBF LTC4368CMS-1#TRPBF LTC4368CMS-2#PBF LTC4368CMS-2#TRPBF LTC4368HDD-1#PBF LTC4368HDD-1#TRPBF LTC4368HDD-2#PBF LTC4368HDD-2#TRPBF LTC4368HMS-1#PBF LTC4368HMS-1#TRPBF LTC4368HMS-1#WPBF LTC4368HMS-1#WTRPBF LTC4368HMS-2#PBF LTC4368HMS-2#TRPBF LTC4368HMS-2#WPBF LTC4368HMS-2#WTRPBF LTC4368IDD-1#PBF LTC4368IDD-1#TRPBF LTC4368IDD-2#PBF LTC4368IDD-2#TRPBF LTC4368IMS-1#PBF LTC4368IMS-1#TRPBF LTC4368IMS-1#WPBF LTC4368IMS-1#WTRPBF LTC4368IMS-2#PBF LTC4368IMS-2#TRPBF LTC4368IMS-2#WPBF LTC4368IMS-2#WTRPBF
文件文字版本
LTC4368

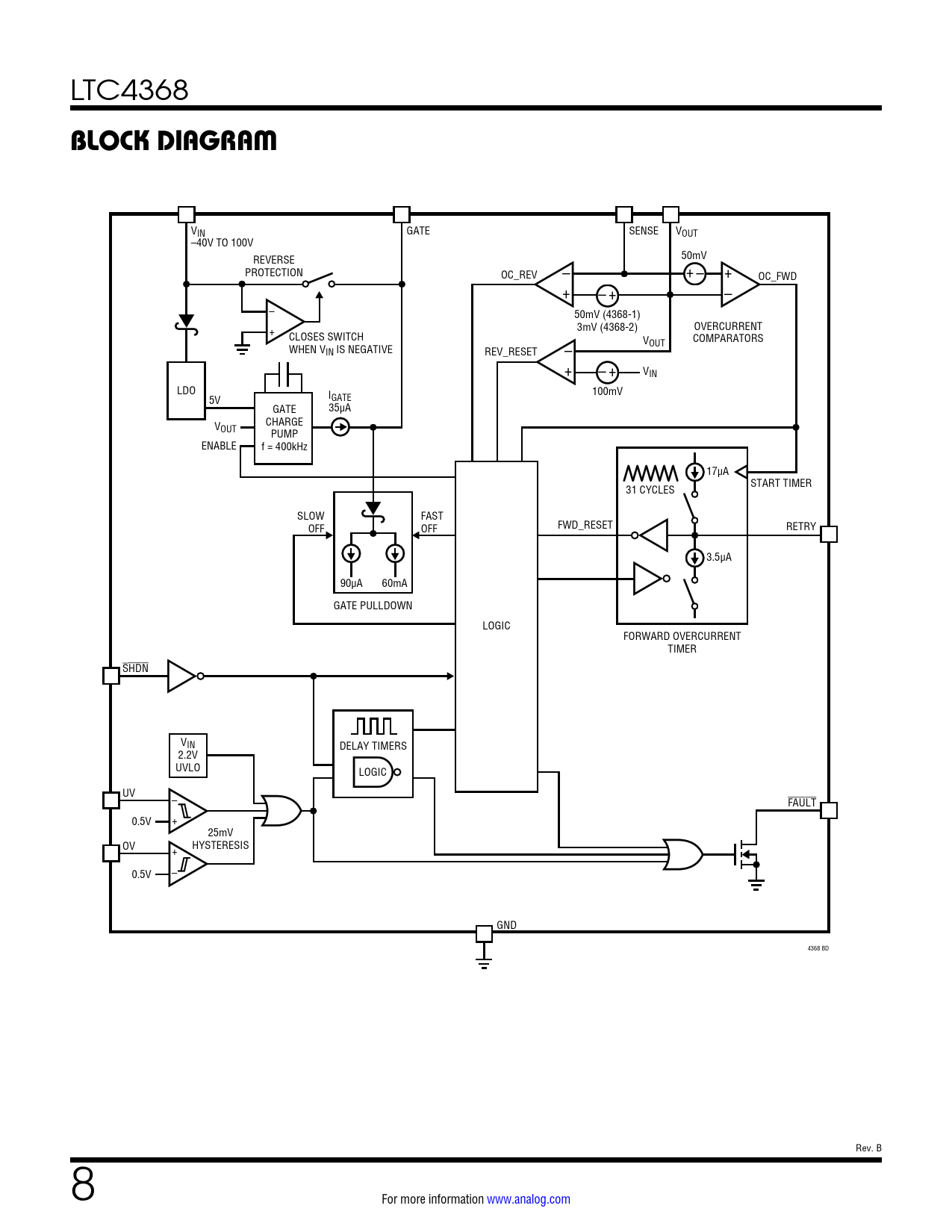

BLOCK DIAGRAM
VIN GATE SENSE VOUT –40V TO 100V REVERSE – + – 50mV PROTECTION OC_REV + OC_FWD + – + – – 50mV (4368-1) + 3mV (4368-2) OVERCURRENT CLOSES SWITCH V COMPARATORS – WHEN V OUT IN IS NEGATIVE REV_RESET + – + VIN LDO 100mV 5V IGATE GATE 35µA V CHARGE OUT PUMP ENABLE f = 400kHz 17µA START TIMER 31 CYCLES SLOW FAST OFF OFF FWD_RESET RETRY 3.5µA 90µA 60mA GATE PULLDOWN LOGIC FORWARD OVERCURRENT TIMER SHDN VIN DELAY TIMERS 2.2V UVLO LOGIC UV – FAULT 0.5V + 25mV OV HYSTERESIS + 0.5V – GND 4368 BD Rev. B 8 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Pin Functions Block Diagram Applications Information Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
