Cree PLCC6 3 in 1 SMD LED. CV94D-FCC. MECHANICAL DIMENSIONS. Cree Huizhou Solid State Lighting. Company Limited. NOTES
该数据表的模型线
文件文字版本

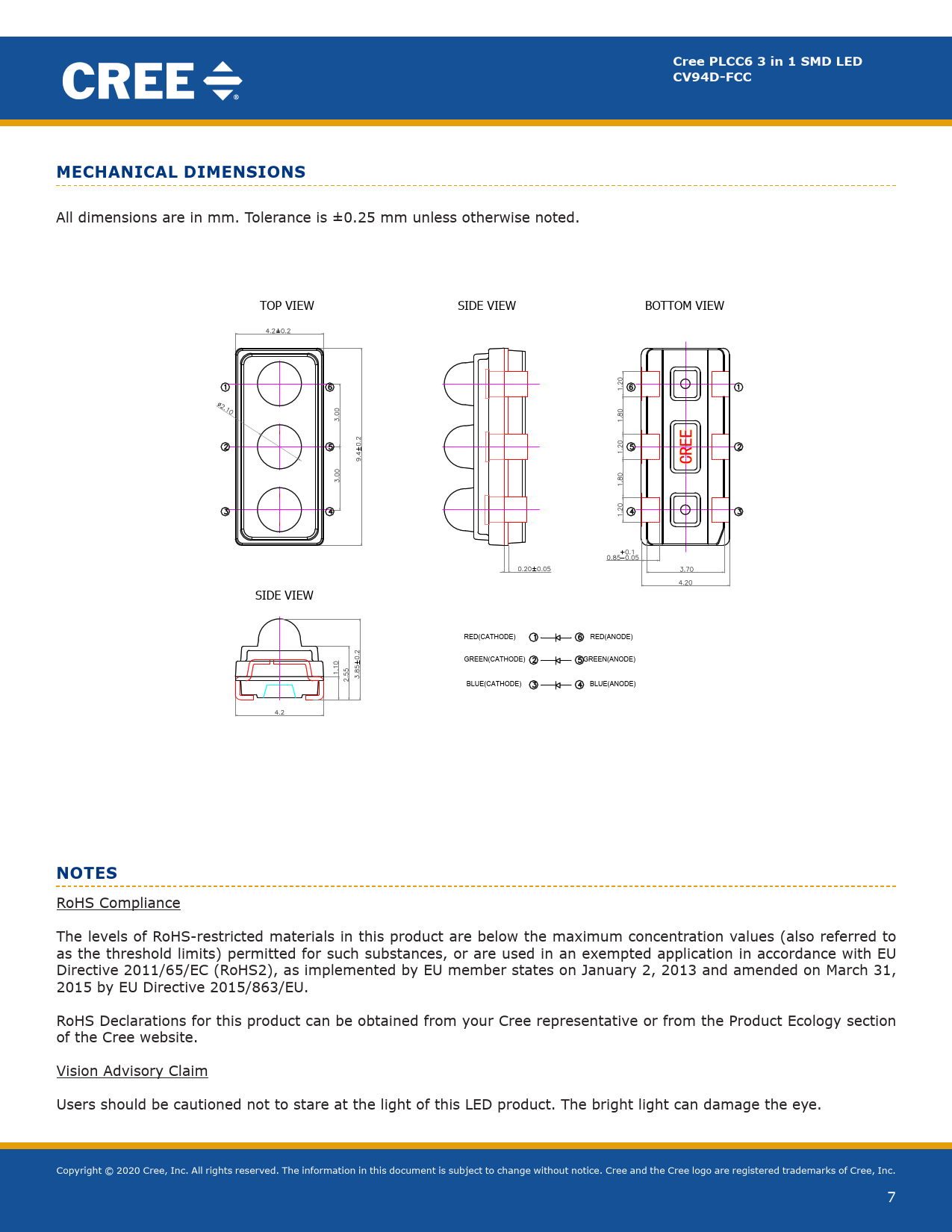

Cree PLCC6 3 in 1 SMD LED CV94D-FCC MECHANICAL DIMENSIONS
All dimensions are in mm. Tolerance is ±0.25 mm unless otherwise noted. TOP VIEW SIDE VIEW BOTTOM VIEW SIDE VIEW RED(CATHODE) RED(ANODE) GREEN(CATHODE) GREEN(ANODE) BLUE(CATHODE) BLUE(ANODE)
Cree Huizhou Solid State Lighting Company Limited
CV94D-FCC lamp drawing
NOTES
RoHS Compliance The levels of RoHS-restricted materials in this product are below the maximum concentration values (also referred to as the threshold limits) permitted for such substances, or are used in an exempted application in accordance with EU Directive 2011/65/EC (RoHS2), as implemented by EU member states on January 2, 2013 and amended on March 31, 2015 by EU Directive 2015/863/EU. RoHS Declarations for this product can be obtained from your Cree representative or from the Product Ecology section of the Cree website. Vision Advisory Claim Users should be cautioned not to stare at the light of this LED product. The bright light can damage the eye. Copyright © 2010 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree, the Cree logo and XLamp are registered trademarks of Cree, Inc. Copyright © 2020 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the Cree logo are registered trademarks of Cree, Inc. 7
