Datasheet GP2Y0A41SK0F (Sharp) - 3
| 制造商 | Sharp |
| 描述 | Distance Measuring Sensor Unit Measuring distance: 4 to 30 cm Analog output type |
| 页数 / 页 | 9 / 3 — GP2Y0A41SK0F. Absolute maximum ratings. Operating supply voltage. … |
| 文件格式/大小 | PDF / 1.8 Mb |
| 文件语言 | 英语 |
GP2Y0A41SK0F. Absolute maximum ratings. Operating supply voltage. Electro-optical Characteristics. Timing Chart
该数据表的模型线
文件文字版本

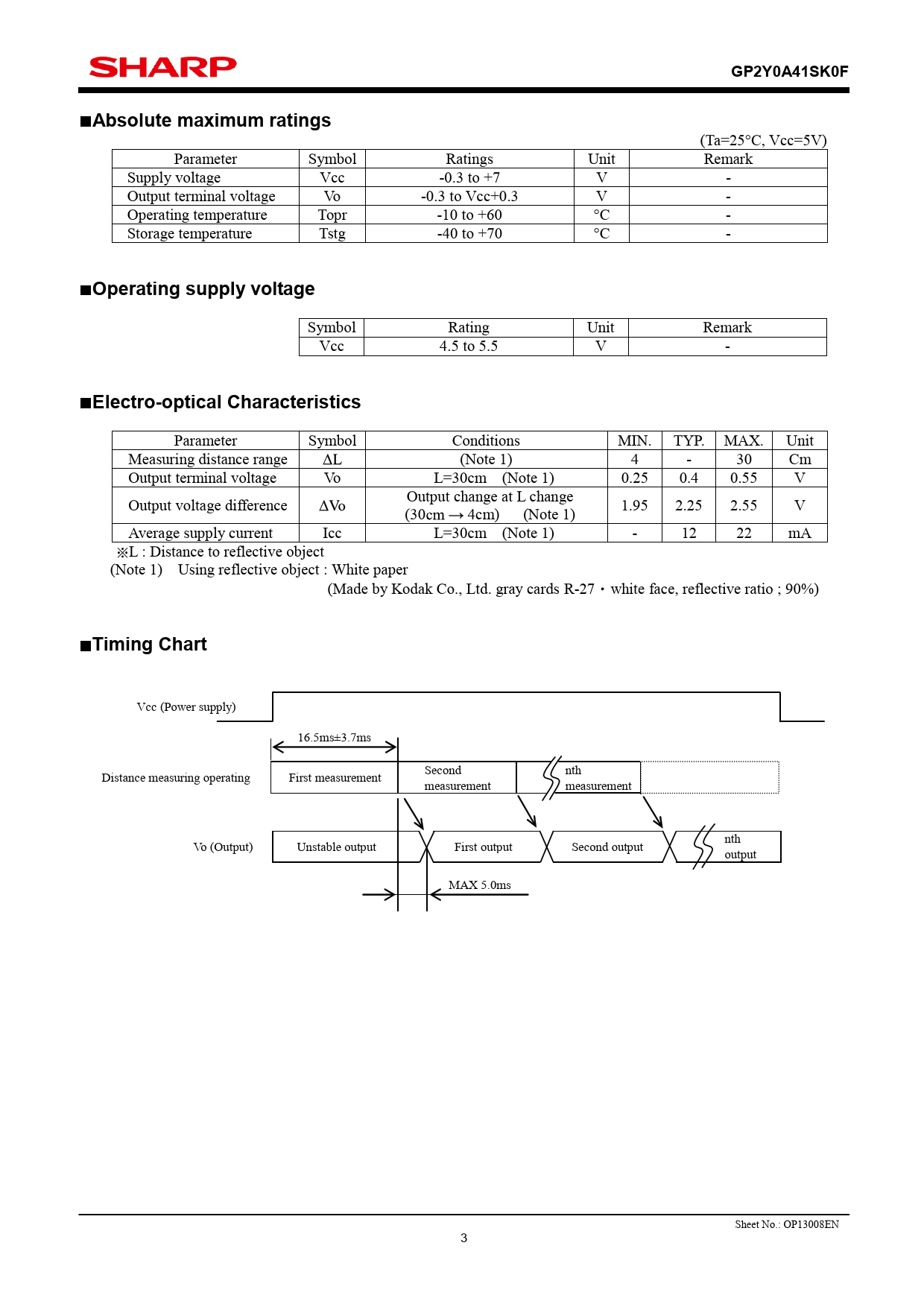

GP2Y0A41SK0F Absolute maximum ratings
(Ta=25°C, Vcc=5V) Parameter Symbol Ratings Unit Remark Supply voltage Vcc -0.3 to +7 V - Output terminal voltage Vo -0.3 to Vcc+0.3 V - Operating temperature Topr -10 to +60 °C - Storage temperature Tstg -40 to +70 °C -
Operating supply voltage
Symbol Rating Unit Remark Vcc 4.5 to 5.5 V -
Electro-optical Characteristics
Parameter Symbol Conditions MIN. TYP. MAX. Unit Measuring distance range (Note 1) 4 - 30 Cm Output terminal voltage Vo L=30cm (Note 1) 0.25 0.4 0.55 V Output change at L change Output voltage difference 1.95 2.25 2.55 V (30 4cm) (Note 1) Average supply current Icc L=30cm (Note 1) - 12 22 mA L : Distance to reflective object (Note 1) Using reflective object : White paper (Made by Kodak Co., Ltd. gray cards R-27 white face, reflective ratio ; 90%)
Timing Chart
Vcc (Power supply) 16.5ms±3.7ms Second nth Distance measuring operating First measurement measurement measurement nth Vo (Output) Unstable output First output Second output output MAX 5.0ms Sheet No.: OP13008EN 3
(Ta=25°C, Vcc=5V) Parameter Symbol Ratings Unit Remark Supply voltage Vcc -0.3 to +7 V - Output terminal voltage Vo -0.3 to Vcc+0.3 V - Operating temperature Topr -10 to +60 °C - Storage temperature Tstg -40 to +70 °C -
Operating supply voltage
Symbol Rating Unit Remark Vcc 4.5 to 5.5 V -
Electro-optical Characteristics
Parameter Symbol Conditions MIN. TYP. MAX. Unit Measuring distance range (Note 1) 4 - 30 Cm Output terminal voltage Vo L=30cm (Note 1) 0.25 0.4 0.55 V Output change at L change Output voltage difference 1.95 2.25 2.55 V (30 4cm) (Note 1) Average supply current Icc L=30cm (Note 1) - 12 22 mA L : Distance to reflective object (Note 1) Using reflective object : White paper (Made by Kodak Co., Ltd. gray cards R-27 white face, reflective ratio ; 90%)
Timing Chart
Vcc (Power supply) 16.5ms±3.7ms Second nth Distance measuring operating First measurement measurement measurement nth Vo (Output) Unstable output First output Second output output MAX 5.0ms Sheet No.: OP13008EN 3
