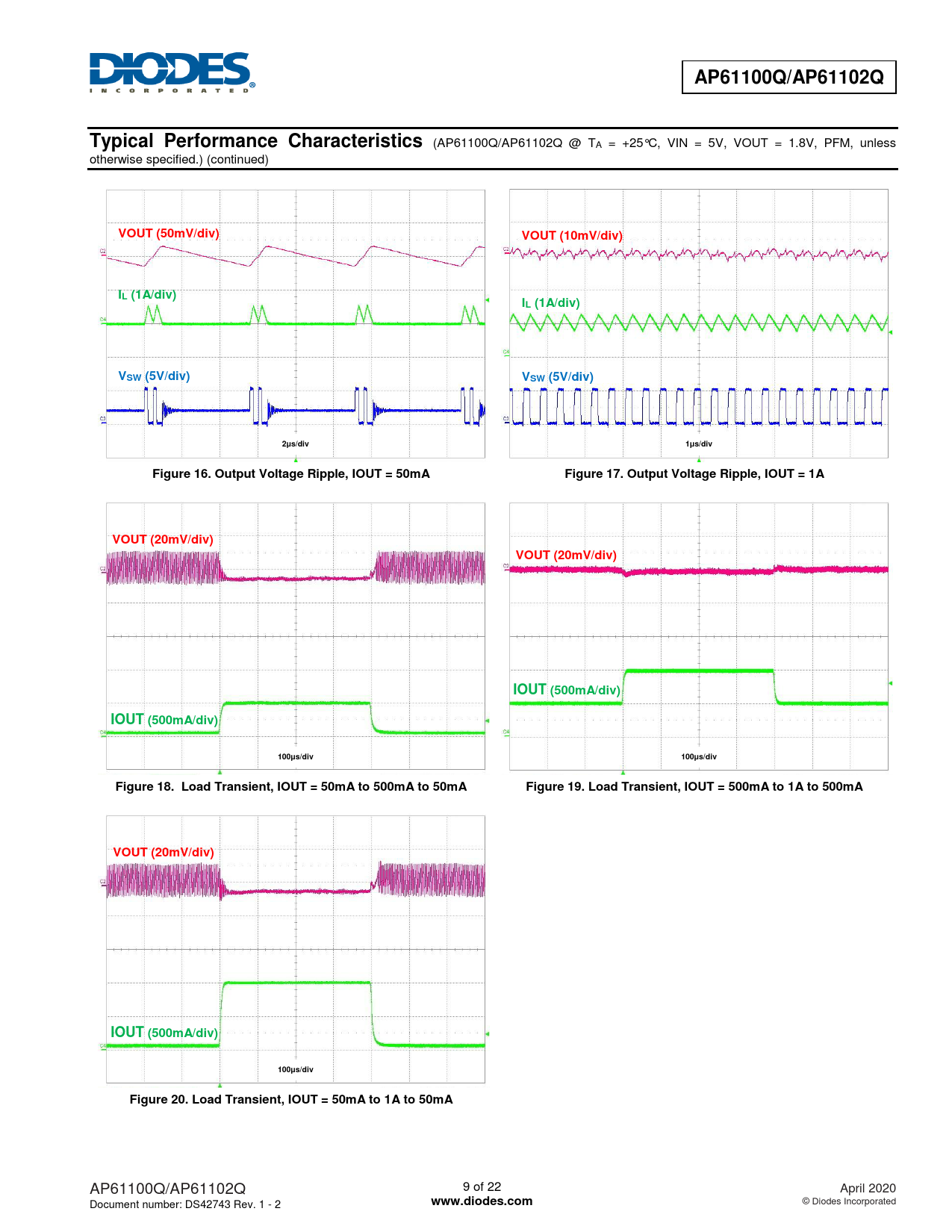

AP61100Q/AP61102Q Typical Performance Characteristics
(AP61100Q/AP61102Q @ TA = +25°C, VIN = 5V, VOUT = 1.8V, PFM, unless otherwise specified.) (continued)
VOUT (50mV/div) VOUT (10mV/div) IL (1A/div) IL (1A/div) VSW (5V/div) VSW (5V/div) 2μs/div 1μs/div Figure 16. Output Voltage Ripple, IOUT = 50mA Figure 17. Output Voltage Ripple, IOUT = 1A VOUT (20mV/div) VOUT (20mV/div) IOUT (500mA/div) IOUT (500mA/div) 100μs/div 100μs/div Figure 18. Load Transient, IOUT = 50mA to 500mA to 50mA Figure 19. Load Transient, IOUT = 500mA to 1A to 500mA VOUT (20mV/div) IOUT (500mA/div) 100μs/div Figure 20. Load Transient, IOUT = 50mA to 1A to 50mA
AP61100Q/AP61102Q 9 of 22 April 2020 Document number: DS42743 Rev. 1 - 2
