BLF978P. HF / VHF power LDMOS transistor. 8. Test. information. 8.1 Ruggedness in class-AB operation. 8.2 Impedance information
该数据表的模型线
文件文字版本

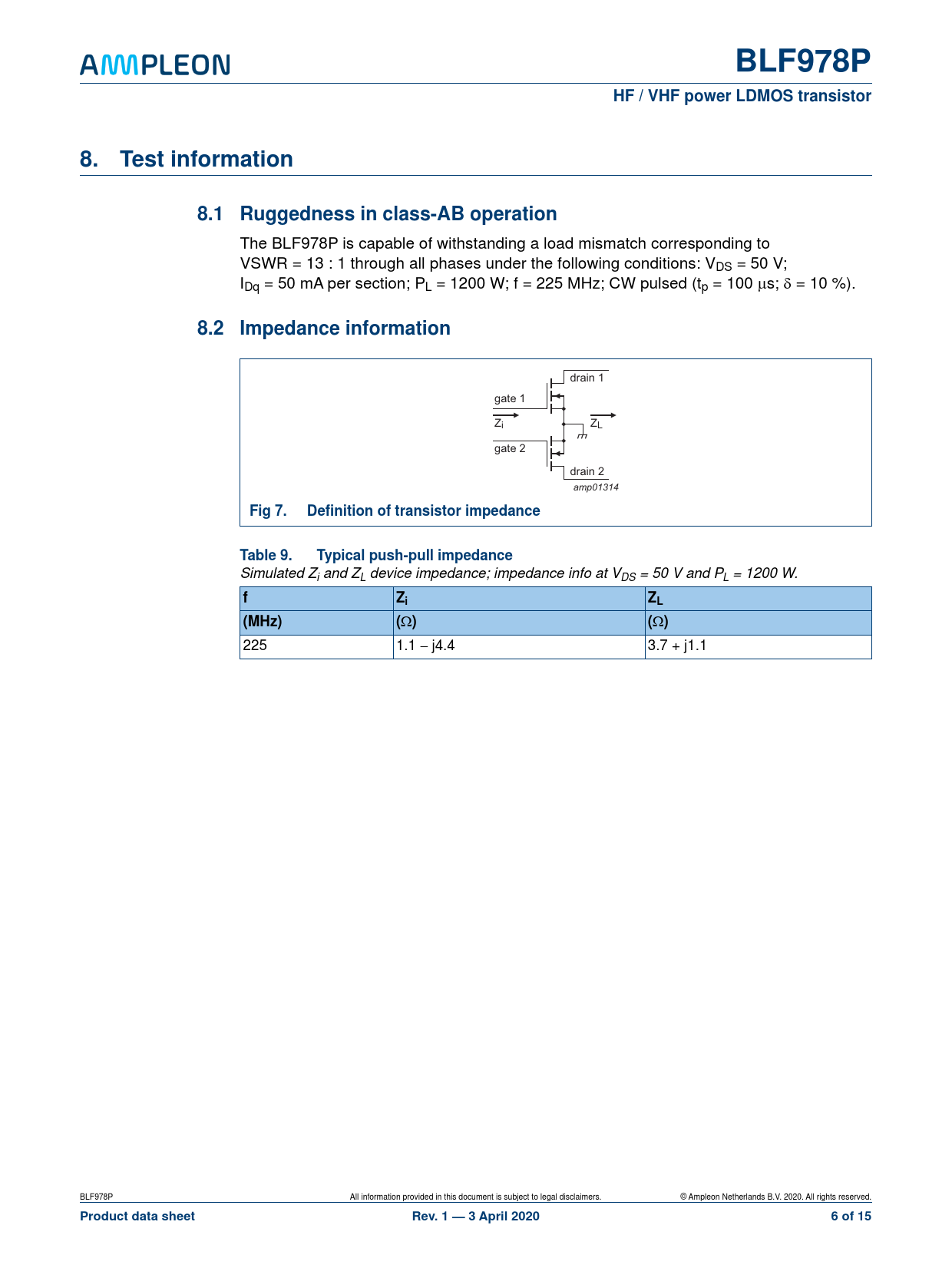

BLF978P HF / VHF power LDMOS transistor 8. Test information 8.1 Ruggedness in class-AB operation
The BLF978P is capable of withstanding a load mismatch corresponding to VSWR = 13 : 1 through all phases under the following conditions: VDS = 50 V; IDq = 50 mA per section; PL = 1200 W; f = 225 MHz; CW pulsed (tp = 100 s; = 10 %).
8.2 Impedance information
drain 1 gate 1 Z Z i L gate 2 drain 2 amp01314
Fig 7. Definition of transistor impedance Table 9. Typical push-pull impedance
Simulated Zi and ZL device impedance; impedance info at VDS = 50 V and PL = 1200 W.
f Zi ZL (MHz) ( ) ( )
225 1.1 j4.4 3.7 + j1.1 BLF978P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 3 April 2020 6 of 15
