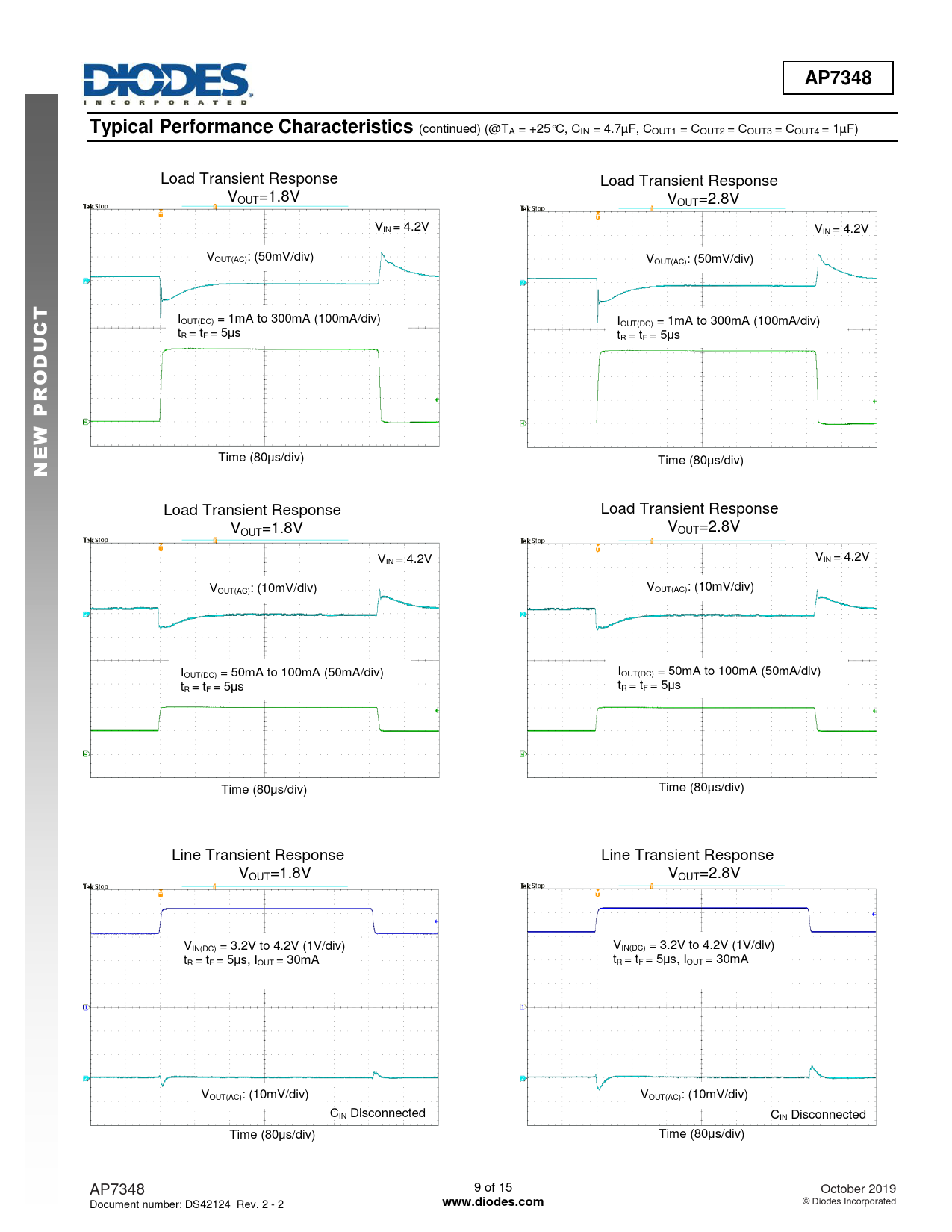

AP7348 Typical Performance Characteristics
(continued) (@TA = +25°C, CIN = 4.7µF, COUT1 = COUT2 = COUT3 = COUT4 = 1µF) Load Transient Response Load Transient Response VOUT=1.8V VOUT=2.8V VIN = 4.2V VIN = 4.2V VOUT(AC): (50mV/div) VOUT(AC): (50mV/div)
T C
IOUT(DC) = 1mA to 300mA (100mA/div) IOUT(DC) = 1mA to 300mA (100mA/div)
U
tR = tF = 5μs tR = tF = 5μs
D O R P W E N
Time (80μs/div) Time (80μs/div) Load Transient Response Load Transient Response V V OUT=1.8V OUT=2.8V V V IN = 4.2V IN = 4.2V V V OUT(AC): (10mV/div) OUT(AC): (10mV/div) I I OUT(DC) = 50mA to 100mA (50mA/div) OUT(DC) = 50mA to 100mA (50mA/div) t t R = tF = 5μs R = tF = 5μs Time (80μs/div) Time (80μs/div) Line Transient Response Line Transient Response VOUT=1.8V VOUT=2.8V VIN(DC) = 3.2V to 4.2V (1V/div) VIN(DC) = 3.2V to 4.2V (1V/div) tR = tF = 5μs, IOUT = 30mA tR = tF = 5μs, IOUT = 30mA VOUT(AC): (10mV/div) VOUT(AC): (10mV/div) CIN Disconnected CIN Disconnected Time (80μs/div) Time (80μs/div) AP7348 9 of 15 October 2019 Document number: DS42124 Rev. 2 - 2
