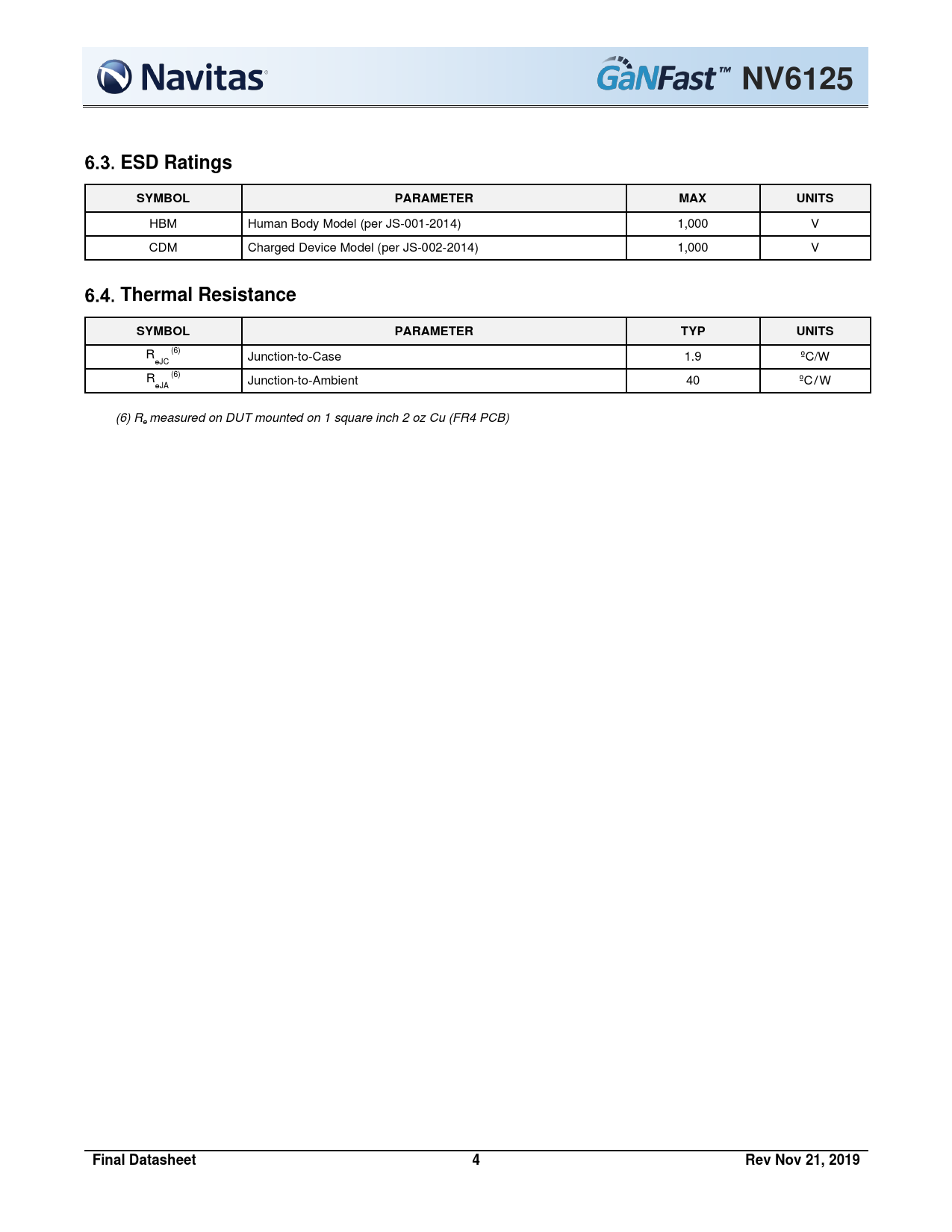

NV6125. ESD Ratings. SYMBOL. PARAMETER. MAX. UNITS. Thermal Resistance. TYP. Final Datasheet. Rev Nov 21, 2019
该数据表的模型线
文件文字版本
NV6125 NV6125 ESD Ratings SYMBOL PARAMETER MAX UNITS
HBM Human Body Model (per JS-001-2014) 1,000 V CDM Charged Device Model (per JS-002-2014) 1,000 V
Thermal Resistance SYMBOL PARAMETER TYP UNITS
R (6) Junction-to-Case 1.9 ºC/W ɵJC R (6) Junction-to-Ambient 40 ºC/W ɵJA (6) Rɵ measured on DUT mounted on 1 square inch 2 oz Cu (FR4 PCB)
Final Datasheet 4 Rev Nov 21, 2019
