Datasheet NV6125 (Navitas Semiconductor) - 9
| 制造商 | Navitas Semiconductor |
| 描述 | 650 V GaNFast Power IC |
| 页数 / 页 | 23 / 9 — NV6125. Characteristic Graphs (Cont.). Final Datasheet. Rev Nov 21, 2019 |
| 文件格式/大小 | PDF / 2.3 Mb |
| 文件语言 | 英语 |
NV6125. Characteristic Graphs (Cont.). Final Datasheet. Rev Nov 21, 2019
该数据表的模型线
文件文字版本
NV6125 NV6125 Characteristic Graphs (Cont.)

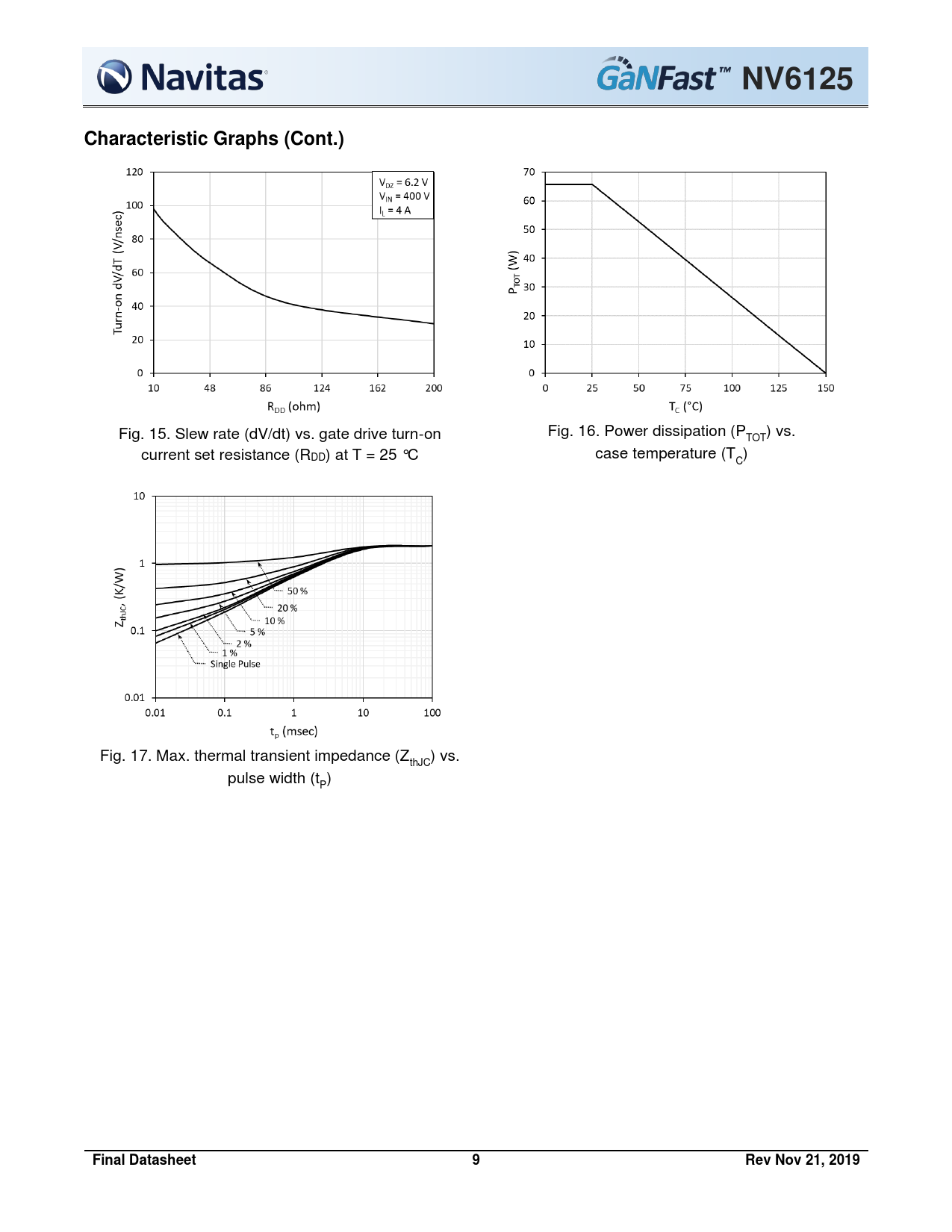

Fig. 15. Slew rate (dV/dt) vs. gate drive turn-on Fig. 16. Power dissipation (P ) vs. TOT current set resistance (RDD) at T = 25 °C case temperature (T ) C Fig. 17. Max. thermal transient impedance (Z ) vs. thJC pulse width (t ) P
Final Datasheet 9 Rev Nov 21, 2019
Fig. 15. Slew rate (dV/dt) vs. gate drive turn-on Fig. 16. Power dissipation (P ) vs. TOT current set resistance (RDD) at T = 25 °C case temperature (T ) C Fig. 17. Max. thermal transient impedance (Z ) vs. thJC pulse width (t ) P
Final Datasheet 9 Rev Nov 21, 2019
