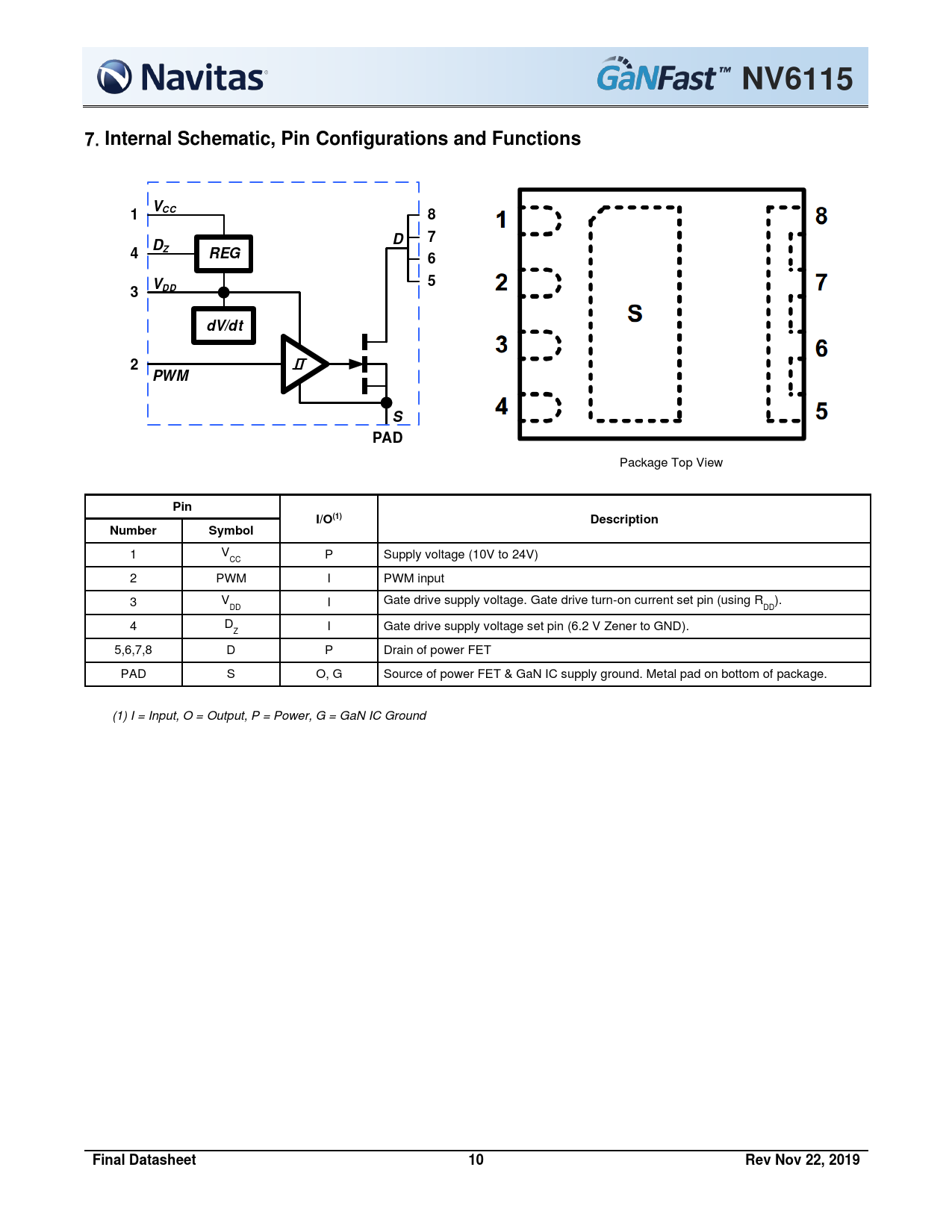

NV6115Internal Schematic, Pin Configurations and FunctionsV1CC87DD4ZREG6V5DD3dV/dt2 PWMSPAD Package Top View PinI/O(1)DescriptionNumberSymbol 1 V P Supply voltage (10V to 24V) CC 2 PWM I PWM input 3 V I Gate drive supply voltage. Gate drive turn-on current set pin (using R ). DD DD 4 D I Gate drive supply voltage set pin (6.2 V Zener to GND). Z 5,6,7,8 D P Drain of power FET PAD S O, G Source of power FET & GaN IC supply ground. Metal pad on bottom of package. (1) I = Input, O = Output, P = Power, G = GaN IC Ground Final Datasheet10Rev Nov 22, 2019
