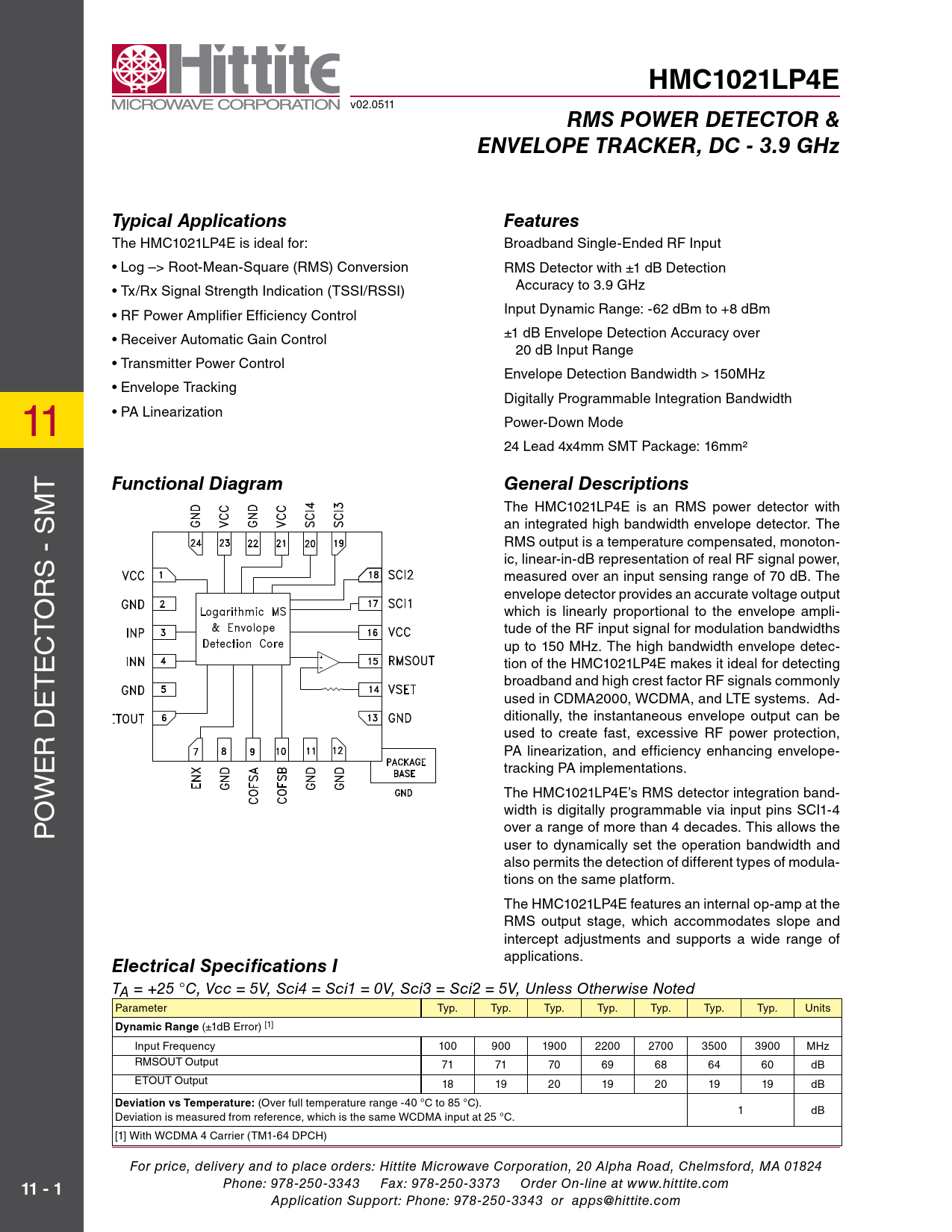

HMC1021LP4E
v02.0511
RMS POWER DETECTOR & ENVELOPE TRACKER, DC - 3.9 GHz Typical Applications Features
the HMc1021LP4e is ideal for: Broadband single-ended rF Input • Log –> Root-Mean-Square (RMS) Conversion rMs Detector with ±1 dB Detection Accuracy to 3.9 GHz • Tx/Rx Signal Strength Indication (TSSI/RSSI) Input Dynamic range: -62 dBm to +8 dBm • RF Power Amplifier Efficiency Control ±1 dB envelope Detection Accuracy over • Receiver Automatic Gain Control 20 dB Input range • Transmitter Power Control envelope Detection Bandwidth > 150MHz • Envelope Tracking 11 Digital y Programmable Integration Bandwidth • PA Linearization Power-Down Mode 24 Lead 4x4mm sMt Package: 16mm² t
Functional Diagram General Descriptions
M the HMc1021LP4e is an rMs power detector with s an integrated high bandwidth envelope detector. the - rMs output is a temperature compensated, monoton- ic, linear-in-dB representation of real rF signal power, rs measured over an input sensing range of 70 dB. the o envelope detector provides an accurate voltage output t which is linearly proportional to the envelope ampli- tude of the rF input signal for modulation bandwidths c up to 150 MHz. the high bandwidth envelope detec- e tion of the HMc1021LP4e makes it ideal for detecting t broadband and high crest factor rF signals commonly e used in cDMA2000, wcDMA, and Lte systems. Ad- D ditional y, the instantaneous envelope output can be r used to create fast, excessive rF power protection, e PA linearization, and efficiency enhancing envelope- tracking PA implementations. w the HMc1021LP4e’s rMs detector integration band- o width is digital y programmable via input pins scI1-4 P over a range of more than 4 decades. this al ows the user to dynamical y set the operation bandwidth and also permits the detection of different types of modula- tions on the same platform. the HMc1021LP4e features an internal op-amp at the rMs output stage, which accommodates slope and intercept adjustments and supports a wide range of applications.
Electrical Specifications I
TA = +25 °C, Vcc = 5V, Sci4 = Sci1 = 0V, Sci3 = Sci2 = 5V, Unless Otherwise Noted Parameter typ. typ. typ. typ. typ. typ. typ. Units
Dynamic Range
(±1dB Error) [1] Input Frequency 100 900 1900 2200 2700 3500 3900 MHz rMsoUt output 71 71 70 69 68 64 60 dB etoUt output 18 19 20 19 20 19 19 dB
Deviation vs Temperature:
(Over full temperature range -40 °C to 85 °C). 1 dB Deviation is measured from reference, which is the same WCDMA input at 25 °C. [1] With WCDMA 4 Carrier (TM1-64 DPCH) For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
11 - 1
