HMC1010LP4E. RMS POWER DETECTOR. DC - 3.9 GHz. Typical Applications. Features. Functional Diagram. General Description

Datasheet HMC1010LP4E Analog Devices

该数据表的模型线

文件文字版本

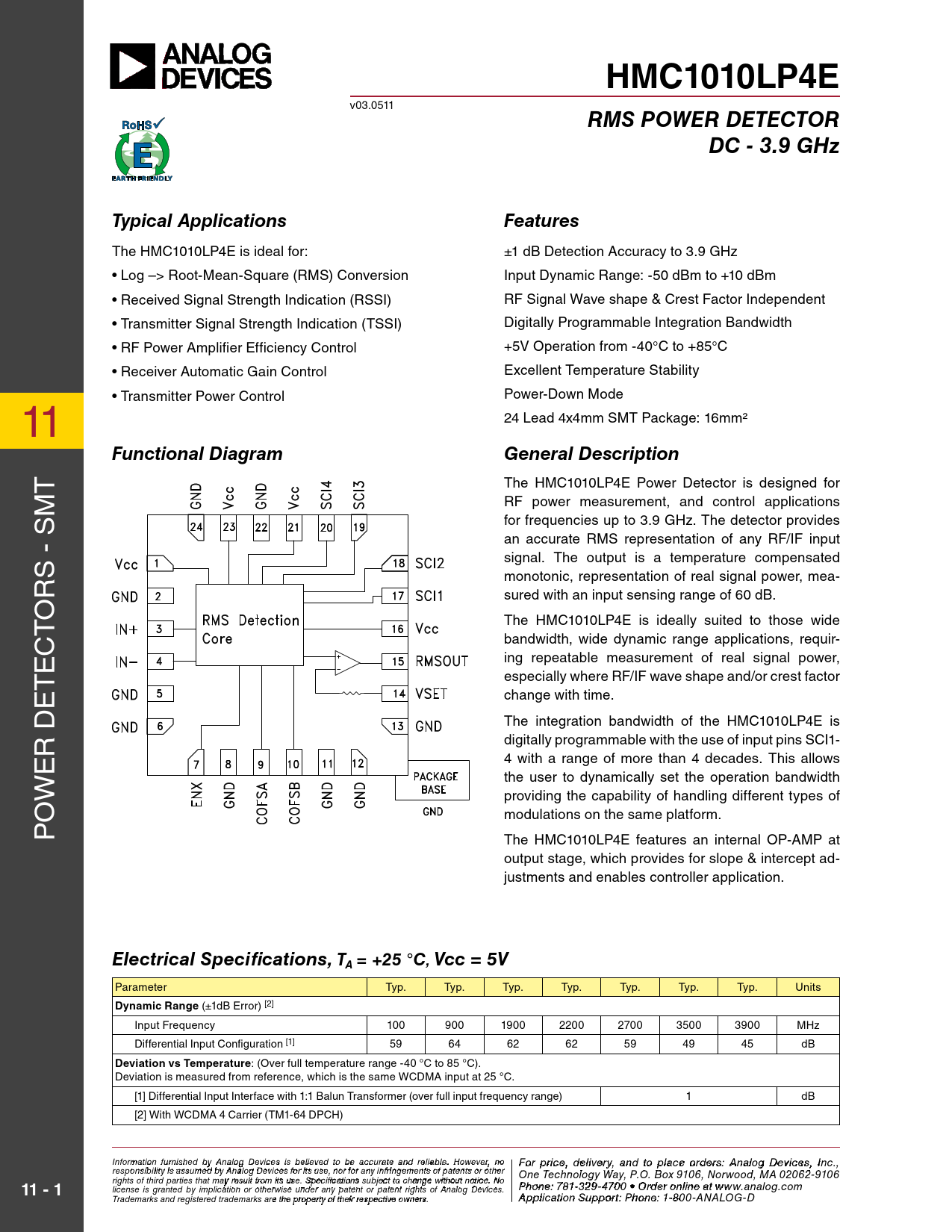

HMC1010LP4E
v03.0511
RMS POWER DETECTOR DC - 3.9 GHz Typical Applications Features
the HMc1010LP4e is ideal for: ±1 dB Detection Accuracy to 3.9 GHz • Log –> Root-Mean-Square (RMS) Conversion Input Dynamic range: -50 dBm to +10 dBm • Received Signal Strength Indication (RSSI) rF signal wave shape & crest Factor Independent • Transmitter Signal Strength Indication (TSSI) Digital y Programmable Integration Bandwidth • RF Power Amplifier Efficiency Control +5V operation from -40°c to +85°c • Receiver Automatic Gain Control excellent temperature stability • Transmitter Power Control Power-Down Mode 11 24 Lead 4x4mm sMt Package: 16mm²
Functional Diagram General Description
t the HMc1010LP4e Power Detector is designed for M rF power measurement, and control applications s for frequencies up to 3.9 GHz. the detector provides - an accurate rMs representation of any rF/IF input signal. the output is a temperature compensated rs monotonic, representation of real signal power, mea- o sured with an input sensing range of 60 dB. t the HMc1010LP4e is ideal y suited to those wide c bandwidth, wide dynamic range applications, requir- e ing repeatable measurement of real signal power, t especial y where rF/IF wave shape and/or crest factor e change with time. D the integration bandwidth of the HMc1010LP4e is r digital y programmable with the use of input pins scI1- e 4 with a range of more than 4 decades. this al ows w the user to dynamical y set the operation bandwidth providing the capability of handling different types of o modulations on the same platform. P the HMc1010LP4e features an internal oP-AMP at output stage, which provides for slope & intercept ad- justments and enables control er application.
Electrical Specifications, TA = +25 °C, Vcc = 5V
Parameter typ. typ. typ. typ. typ. typ. typ. Units
Dynamic Range
(±1dB Error) [2] Input Frequency 100 900 1900 2200 2700 3500 3900 MHz Differential Input Configuration [1] 59 64 62 62 59 49 45 dB
Deviation vs Temperature
: (Over full temperature range -40 °C to 85 °C). Deviation is measured from reference, which is the same wcDMA input at 25 °c. [1] Differential Input Interface with 1:1 Balun Transformer (over full input frequency range) 1 dB [2] With WCDMA 4 Carrier (TM1-64 DPCH) Info F rmoatr p ion rfiurcne is , d hed ebly ivAe n r al y a og D n evd t ice o p s is bla eli c eve o ed t rd o b e e ras: H ccuratite tiatne M d reli iac bl reo . w Ho av wev e C er, n o o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rporation, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
11 - 1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
