Datasheet AD8362 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 50 Hz to 3.8 GHz 65d dB TruPwr Detector |
| 页数 / 页 | 33 / 7 — Data Sheet. AD8362. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| 修订版 | F |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |
Data Sheet. AD8362. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
该数据表的模型线
文件文字版本

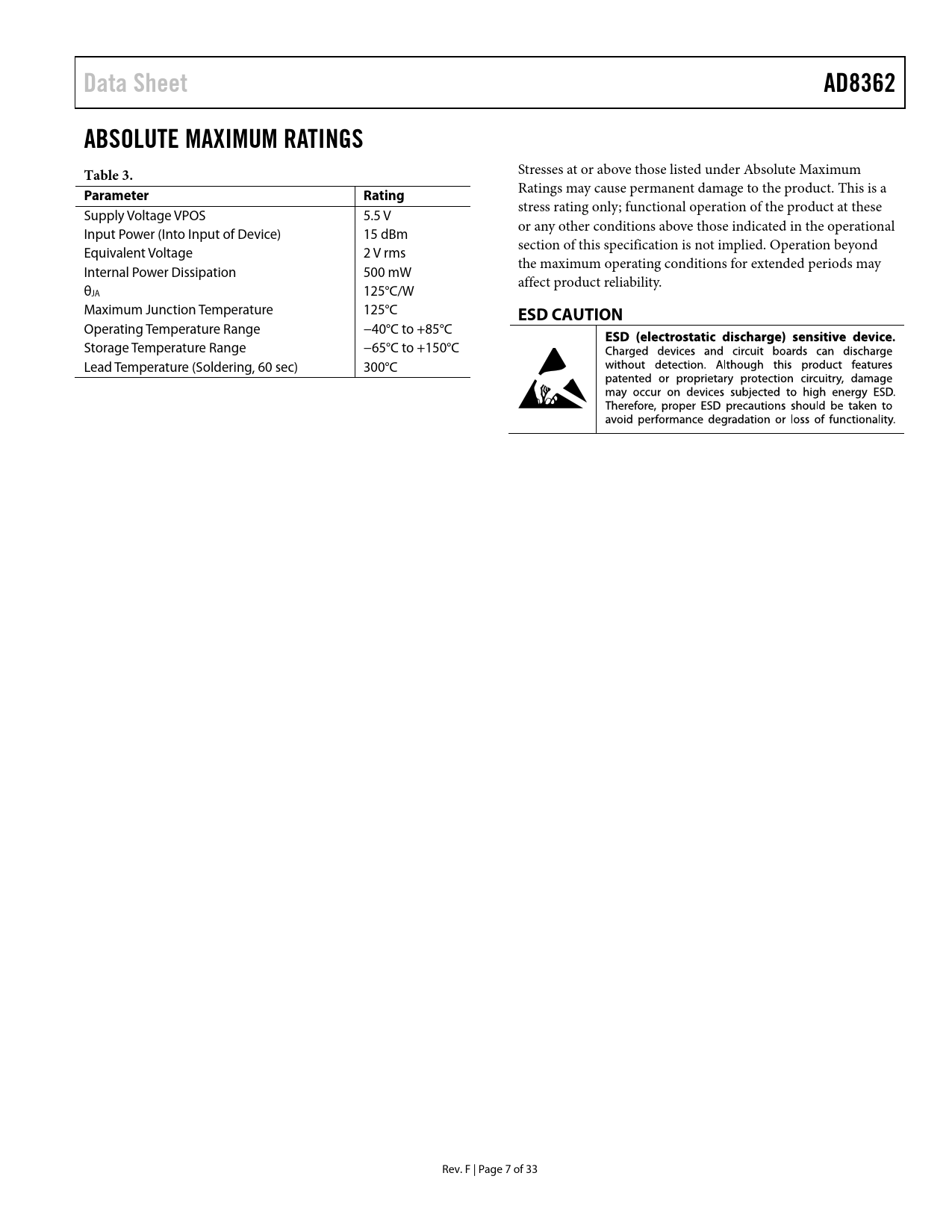

Data Sheet AD8362 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage VPOS 5.5 V stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational Input Power (Into Input of Device) 15 dBm section of this specification is not implied. Operation beyond Equivalent Voltage 2 V rms the maximum operating conditions for extended periods may Internal Power Dissipation 500 mW affect product reliability. θJA 125°C/W Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Rev. F | Page 7 of 33 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS CHARACTERIZATION SETUP EQUIPMENT ANALYSIS CIRCUIT DESCRIPTION SQUARE LAW DETECTION VOLTAGE vs. POWER CALIBRATION OFFSET ELIMINATION TIME-DOMAIN RESPONSE OF THE CLOSED LOOP OPERATION IN RF MEASUREMENT MODE BASIC CONNECTIONS DEVICE DISABLE RECOMMENDED INPUT COUPLING Choosing Input Coupling Capacitors Single-Ended Input Drive OPERATION AT LOW FREQUENCIES CHOOSING A VALUE FOR CHPF CHOOSING A VALUE FOR CLPF ADJUSTING VTGT TO ACCOMMODATE SIGNALS WITH VERY HIGH CREST FACTORS ALTERING THE SLOPE TEMPERATURE COMPENSATION AND REDUCTION OF TRANSFER FUNCTION RIPPLE TEMPERATURE COMPENSATION AT VARIOUS WiMAX FREQUENCIES UP TO 3.8 GHz OPERATION IN CONTROLLER MODE RMS VOLTMETER WITH 90 dB DYNAMIC RANGE AD8362 EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
