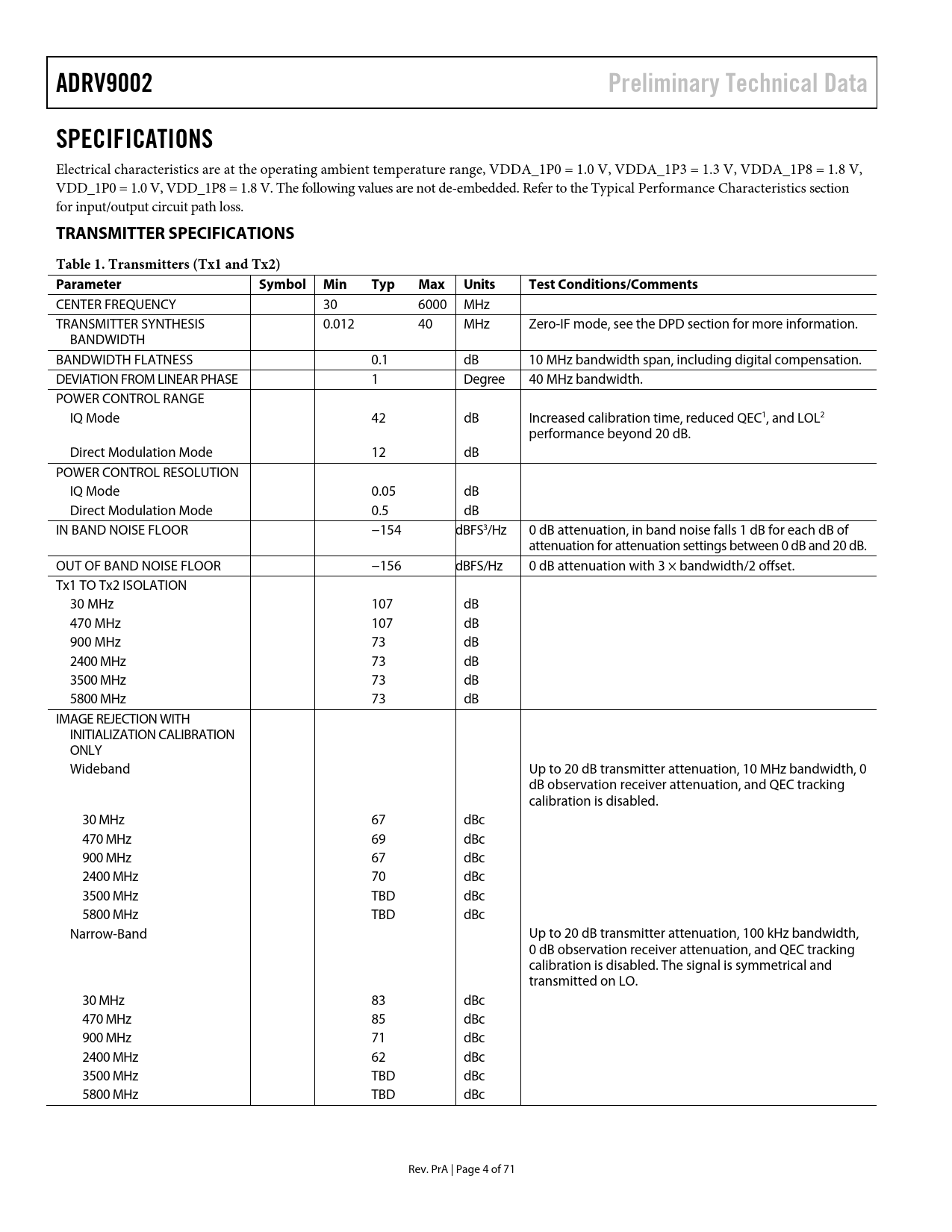

ADRV9002 Preliminary Technical Data SPECIFICATIONS
Electrical characteristics are at the operating ambient temperature range, VDDA_1P0 = 1.0 V, VDDA_1P3 = 1.3 V, VDDA_1P8 = 1.8 V, VDD_1P0 = 1.0 V, VDD_1P8 = 1.8 V. The following values are not de-embedded. Refer to the Typical Performance Characteristics section for input/output circuit path loss.
TRANSMITTER SPECIFICATIONS Table 1. Transmitters (Tx1 and Tx2) Parameter Symbol Min Typ Max Units Test Conditions/Comments
CENTER FREQUENCY 30 6000 MHz TRANSMITTER SYNTHESIS 0.012 40 MHz Zero-IF mode, see the DPD section for more information. BANDWIDTH BANDWIDTH FLATNESS 0.1 dB 10 MHz bandwidth span, including digital compensation. DEVIATION FROM LINEAR PHASE 1 Degree 40 MHz bandwidth. POWER CONTROL RANGE IQ Mode 42 dB Increased calibration time, reduced QEC1, and LOL2 performance beyond 20 dB. Direct Modulation Mode 12 dB POWER CONTROL RESOLUTION IQ Mode 0.05 dB Direct Modulation Mode 0.5 dB IN BAND NOISE FLOOR −154 dBFS3/Hz 0 dB attenuation, in band noise falls 1 dB for each dB of attenuation for attenuation settings between 0 dB and 20 dB. OUT OF BAND NOISE FLOOR −156 dBFS/Hz 0 dB attenuation with 3 × bandwidth/2 offset. Tx1 TO Tx2 ISOLATION 30 MHz 107 dB 470 MHz 107 dB 900 MHz 73 dB 2400 MHz 73 dB 3500 MHz 73 dB 5800 MHz 73 dB IMAGE REJECTION WITH INITIALIZATION CALIBRATION ONLY Wideband Up to 20 dB transmitter attenuation, 10 MHz bandwidth, 0 dB observation receiver attenuation, and QEC tracking calibration is disabled. 30 MHz 67 dBc 470 MHz 69 dBc 900 MHz 67 dBc 2400 MHz 70 dBc 3500 MHz TBD dBc 5800 MHz TBD dBc Narrow-Band Up to 20 dB transmitter attenuation, 100 kHz bandwidth, 0 dB observation receiver attenuation, and QEC tracking calibration is disabled. The signal is symmetrical and transmitted on LO. 30 MHz 83 dBc 470 MHz 85 dBc 900 MHz 71 dBc 2400 MHz 62 dBc 3500 MHz TBD dBc 5800 MHz TBD dBc Rev. PrA | Page 4 of 71 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS TRANSMITTER SPECIFICATIONS RECEIVER SPECIFICATIONS INTERNAL LO, EXTERNAL LO, AND DEVICE CLOCK DIGITAL INTERFACES AND AUXILIARY CONVERTERS POWER SUPPLY SPECIFICATIONS CURRENT CONSUMPTION ESTIMATES (TYPICAL VALUES) Sleep Mode (Typical Values) TDD Operation (Typical Values) FDD Operation (Typical Values) TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS REFLOW PROFILE THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADRV2009 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 30 MHZ BAND 470 MHZ BAND 900 MHZ BAND 2400 MHZ BAND 3500 MHZ BAND 5800 MHZ BAND PHASE NOISE THEORY OF OPERATION TRANSMITTER RECEIVER Monitor Mode DPD Receiver as an Observation Receiver CLOCK INPUT SYNTHESIZERS RF PLL Baseband PLL (PLL) SPI INTERFACE GPIO PINS Digital GPIO Inputs/Outputs (DGPIO) Analog GPIO Inputs/Outputs (AGPIO) AUXILLARY CONVERTERS Auxiliary ADC Inputs (AUXADC_x) Auxiliary DACs Outputs (AUXDAC_x) JTAG BOUNDARY SCAN APPLICATIONS INFORMATION POWER SUPPLY SEQUENCE DIGITAL DATA INTERFACE CSSI CSSI Receive CSSI Transmit LSSI OUTLINE DIMENSIONS
