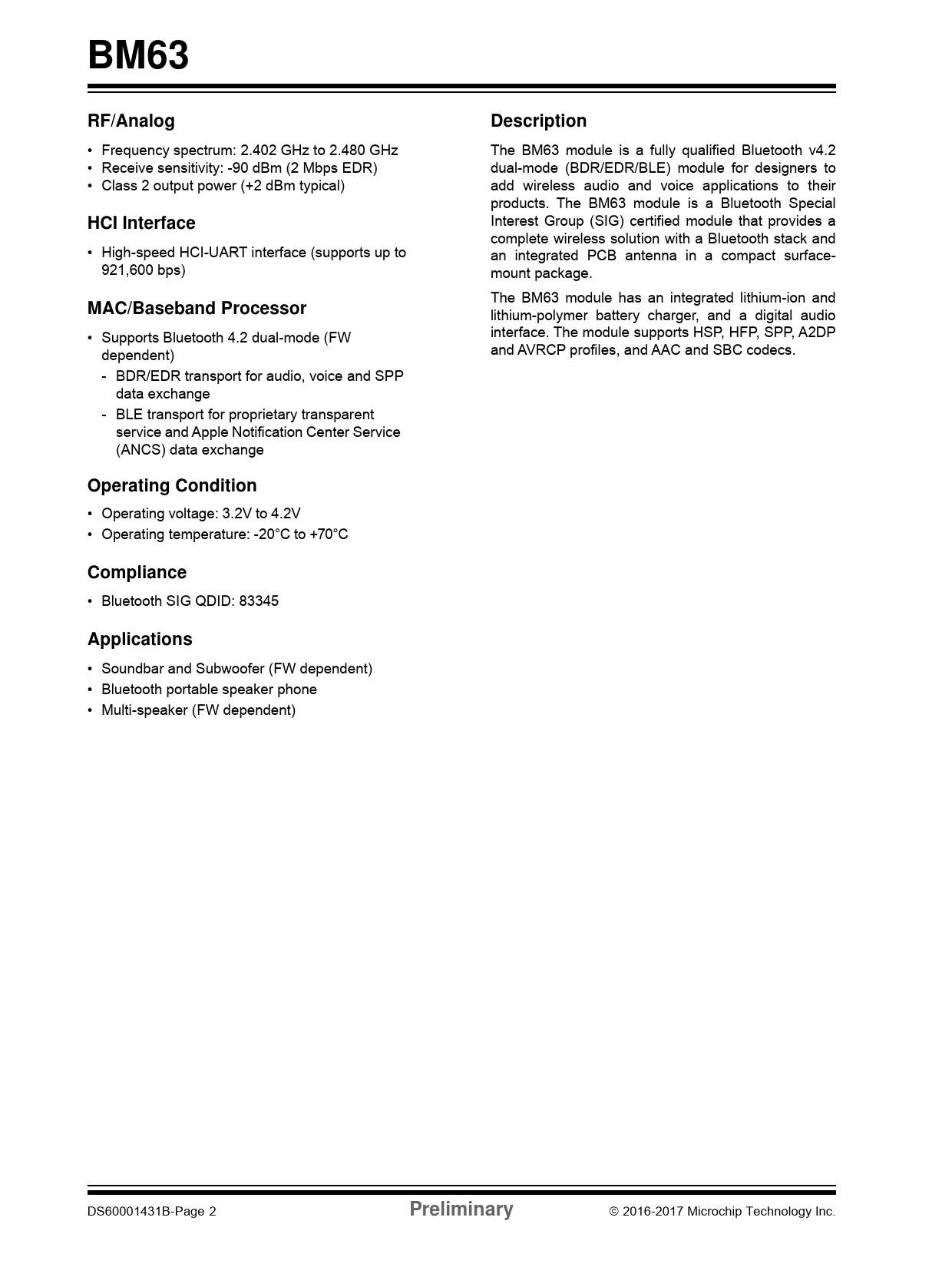

BM63. RF/Analog. Description. HCI Interface. MAC/Baseband Processor. Operating Condition. Compliance. Applications. Preliminary
该数据表的模型线
文件文字版本
BM63 RF/Analog Description
• Frequency spectrum: 2.402 GHz to 2.480 GHz The BM63 module is a fully qualified Bluetooth v4.2 • Receive sensitivity: -90 dBm (2 Mbps EDR) dual-mode (BDR/EDR/BLE) module for designers to • Class 2 output power (+2 dBm typical) add wireless audio and voice applications to their products. The BM63 module is a Bluetooth Special
HCI Interface
Interest Group (SIG) certified module that provides a complete wireless solution with a Bluetooth stack and • High-speed HCI-UART interface (supports up to an integrated PCB antenna in a compact surface- 921,600 bps) mount package. The BM63 module has an integrated lithium-ion and
MAC/Baseband Processor
lithium-polymer battery charger, and a digital audio • Supports Bluetooth 4.2 dual-mode (FW interface. The module supports HSP, HFP, SPP, A2DP dependent) and AVRCP profiles, and AAC and SBC codecs. - BDR/EDR transport for audio, voice and SPP data exchange - BLE transport for proprietary transparent service and Apple Notification Center Service (ANCS) data exchange
Operating Condition
• Operating voltage: 3.2V to 4.2V • Operating temperature: -20°C to +70°C
Compliance
• Bluetooth SIG QDID: 83345
Applications
• Soundbar and Subwoofer (FW dependent) • Bluetooth portable speaker phone • Multi-speaker (FW dependent) DS60001431B-Page 2
Preliminary
