Datasheet AS2333 (Diodes) - 8
| 制造商 | Diodes |
| 描述 | 1.8V, Micropower CMOS Zero-Drift Operational Amplifiers |
| 页数 / 页 | 14 / 8 — AS2333. Application Information. Figure 3. Capacitive Load with RNULL |
| 文件格式/大小 | PDF / 788 Kb |
| 文件语言 | 英语 |

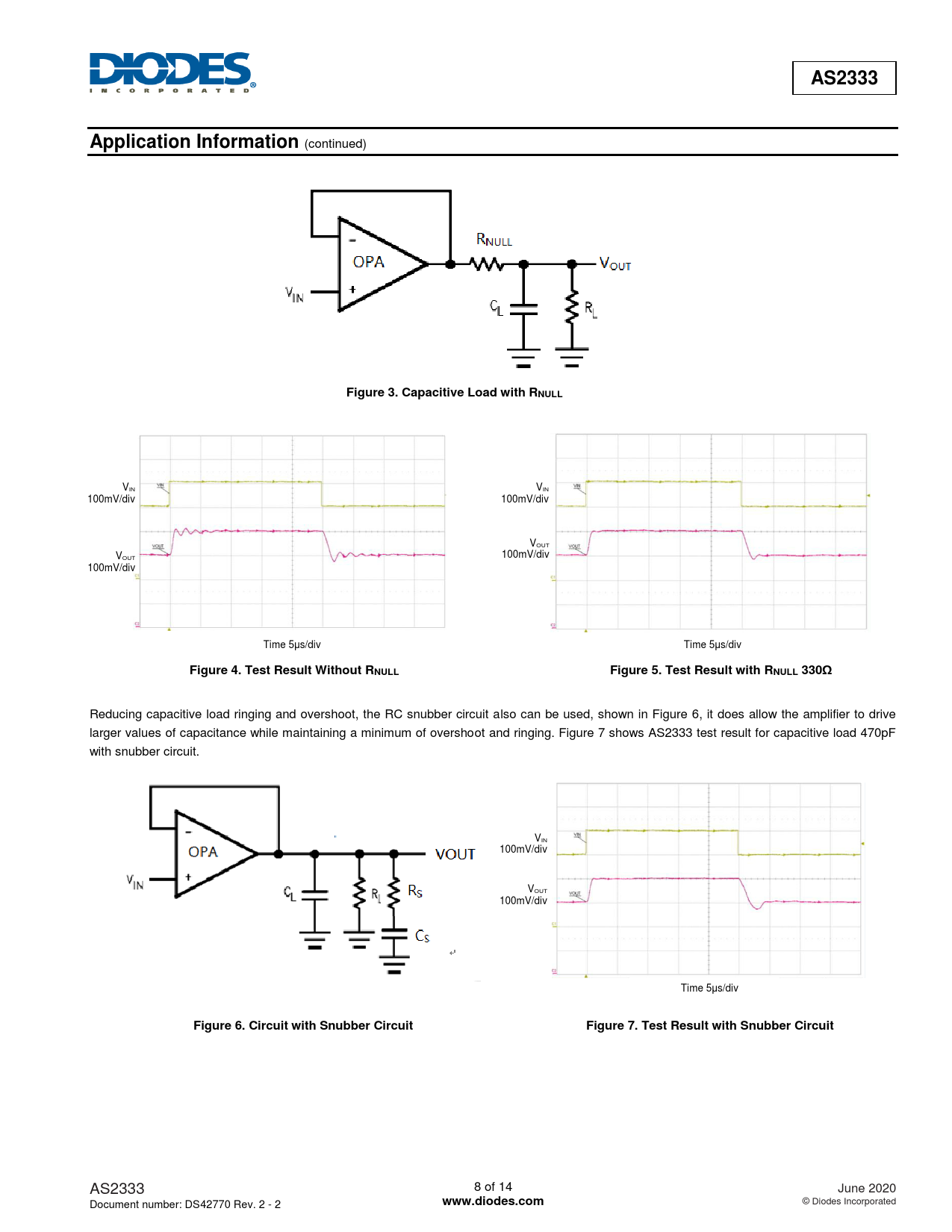

AS2333. Application Information. Figure 3. Capacitive Load with RNULL
该数据表的模型线
文件文字版本
AS2333 Application Information
(continued)
Figure 3. Capacitive Load with RNULL
VIN VIN 100mV/div 100mV/div VOUT VOUT 100mV/div 100mV/div Time 5μs/div Time 5μs/div
Figure 4. Test Result Without RNULL Figure 5. Test Result with RNULL 330Ω
Reducing capacitive load ringing and overshoot, the RC snubber circuit also can be used, shown in Figure 6, it does allow the amplifier to drive larger values of capacitance while maintaining a minimum of overshoot and ringing. Figure 7 shows AS2333 test result for capacitive load 470pF with snubber circuit. VIN 100mV/div VOUT 100mV/div Time 5μs/div
Figure 6. Circuit with Snubber Circuit Figure 7. Test Result with Snubber Circuit
AS2333 8 of 14 June 2020 Document number: DS42770 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
