Datasheet IRL540NPBF (International Rectifier) - 8

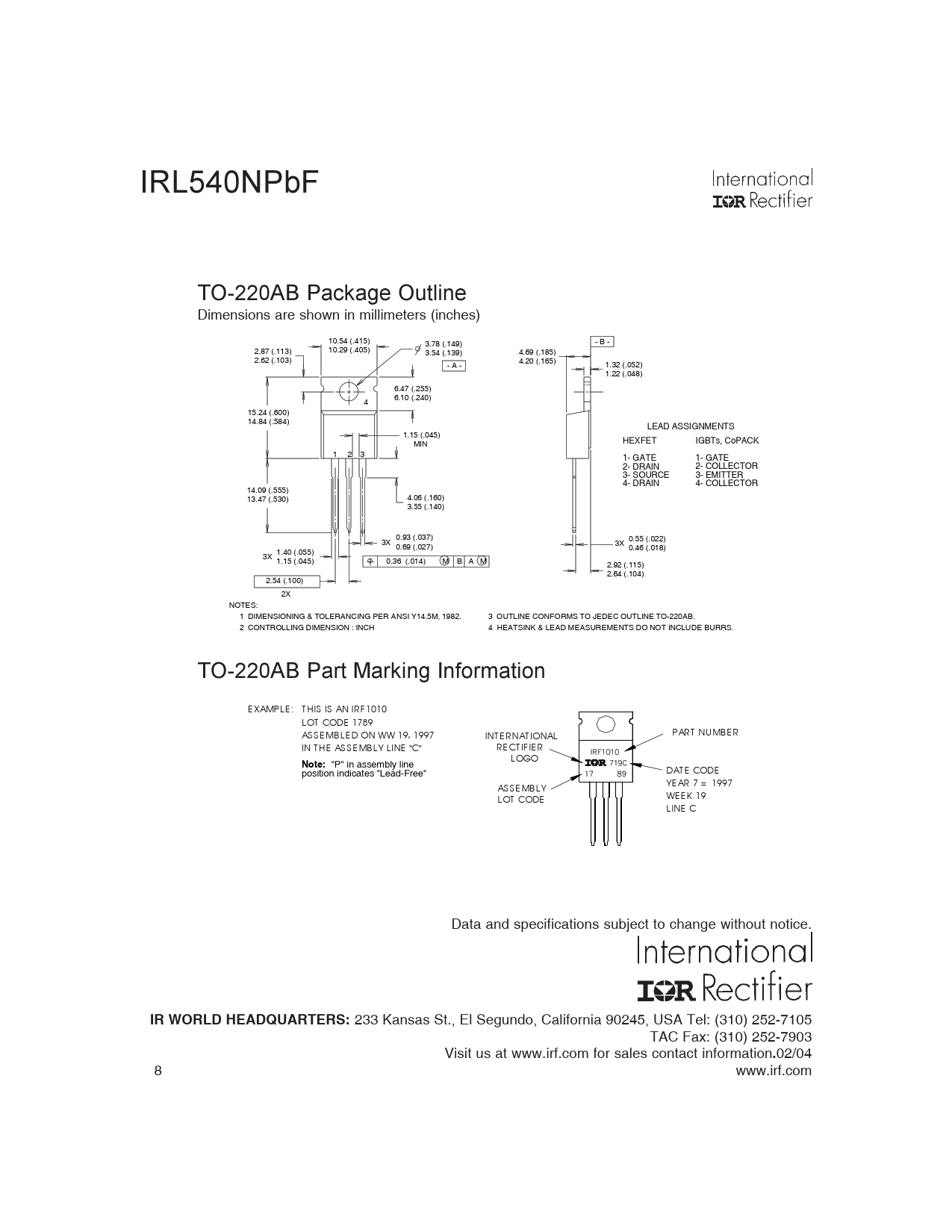

IRL540NPbF TO-220AB Package Outline Dimensions are shown in millimeters (inches) 10.54 (.415) - B - 3.78 (.149) 2.87 (.113) 10.29 (.405) 3.54 (.139) 4.69 (.185) 2.62 (.103) 4.20 (.165) - A - 1.32 (.052) 1.22 (.048) 6.47 (.255) 6.10 (.240) 4 15.24 (.600) 14.84 (.584) LEAD ASSIGNMENTS 1.15 (.045) LEAD ASSIGNMENTS MIN HEXFET IGBTs, CoPACK 1 - GATE 1 2 3 2 - DRAIN 1- GATE 1- GATE 2- 3 DRA - I S N OURCE 2- COLLECTOR 3- S O 4 - UR DR CEAIN 3- EMITTER 4- DRAIN 4- COLLECTOR 14.09 (.555) 4.06 (.160) 13.47 (.530) 3.55 (.140) 0.93 (.037) 0.55 (.022) 3X 3X 0.69 (.027) 0.46 (.018) 1.40 (.055) 3X 1.15 (.045) 0.36 (.014) M B A M 2.92 (.115) 2.64 (.104) 2.54 (.100) 2X NOTES: 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 3 OUTLINE CONFORMS TO JEDEC OUTLINE TO-220AB. 2 CONTROLLING DIMENSION : INCH 4 HEATSINK & LEAD MEASUREMENTS DO NOT INCLUDE BURRS. TO-220AB Part Marking Information E XAMPL E : T HIS IS AN IRF 1010 LOT CODE 1789 AS S E MB L E D ON WW 19, 1997 PART NU MB E R INT E RNAT IONAL IN T HE AS S E MB L Y LINE "C" RE CT IF IE R L OGO
Note:
"P" in assembly line DAT E CODE position indicates "Lead-Free" AS S E MB L Y YE AR 7 = 1997 L OT CODE WE E K 19 L INE C Data and specifications subject to change without notice.
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information
.
02/04 8 www.irf.com
