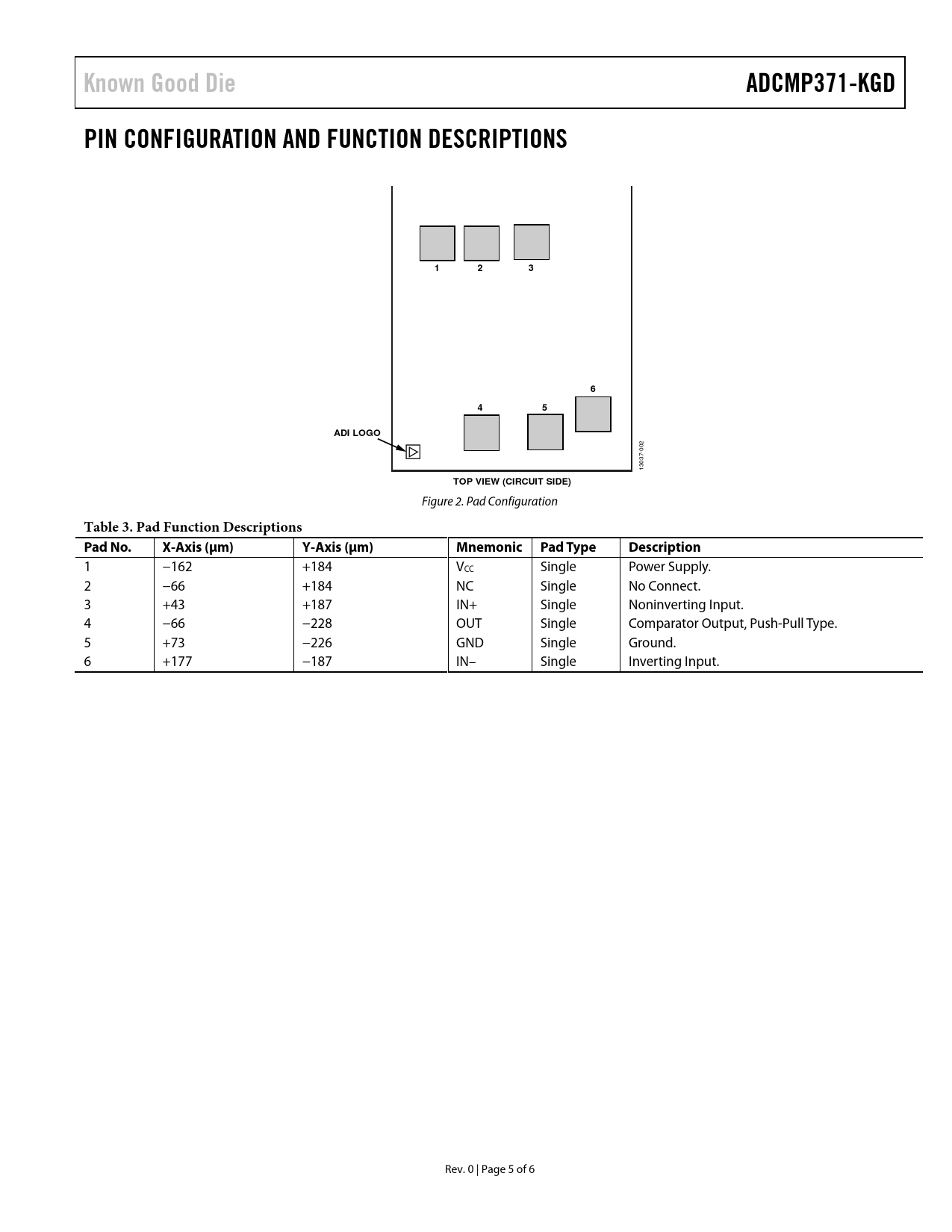

Known Good Die. ADCMP371-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. ADI LOGO. TOP VIEW (CIRCUIT SIDE)
该数据表的模型线
文件文字版本
Known Good Die ADCMP371-KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 2 3 6 4 5 ADI LOGO
002 13037-
TOP VIEW (CIRCUIT SIDE)
Figure 2. Pad Configuration
Table 3. Pad Function Descriptions Pad No. X-Axis (µm) Y-Axis (µm) Mnemonic Pad Type Description
1 −162 +184 VCC Single Power Supply. 2 −66 +184 NC Single No Connect. 3 +43 +187 IN+ Single Noninverting Input. 4 −66 −228 OUT Single Comparator Output, Push-Pull Type. 5 +73 −226 GND Single Ground. 6 +177 −187 IN– Single Inverting Input. Rev. 0 | Page 5 of 6 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
