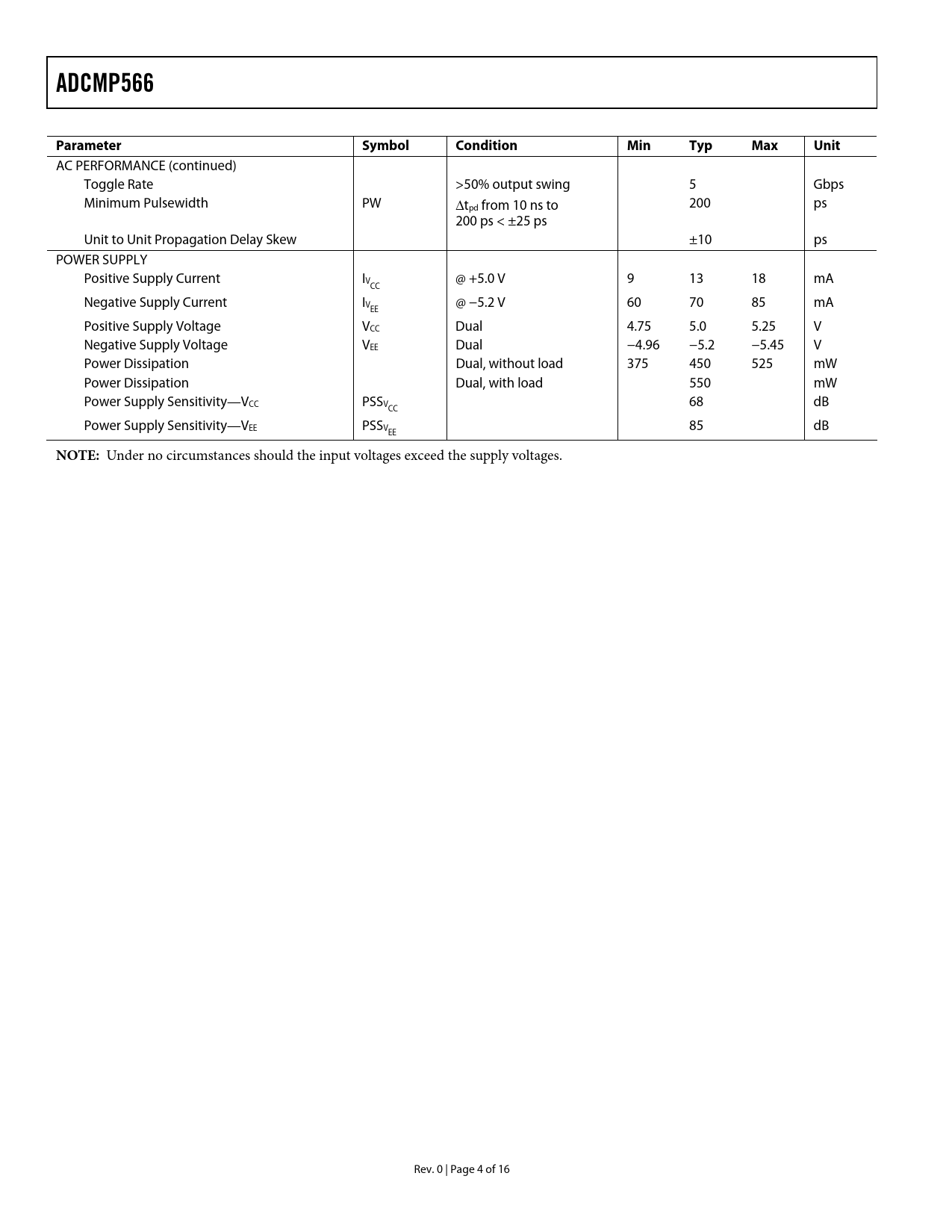

ADCMP566
Parameter Symbol Condition Min Typ Max Unit
AC PERFORMANCE (continued) Toggle Rate >50% output swing 5 Gbps Minimum Pulsewidth PW ∆tpd from 10 ns to 200 ps 200 ps < ±25 ps Unit to Unit Propagation Delay Skew ±10 ps POWER SUPPLY Positive Supply Current IV @ +5.0 V 9 13 18 mA CC Negative Supply Current IV @ −5.2 V 60 70 85 mA EE Positive Supply Voltage VCC Dual 4.75 5.0 5.25 V Negative Supply Voltage VEE Dual −4.96 −5.2 −5.45 V Power Dissipation Dual, without load 375 450 525 mW Power Dissipation Dual, with load 550 mW Power Supply Sensitivity—VCC PSSV 68 dB CC Power Supply Sensitivity—VEE PSSV 85 dB EE
NOTE:
Under no circumstances should the input voltages exceed the supply voltages. Rev. 0 | Page 4 of 16 Document Outline SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CONSIDERATIONS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TIMING INFORMATION APPLICATION INFORMATION CLOCK TIMING RECOVERY OPTIMIZING HIGH SPEED PERFORMANCE COMPARATOR PROPAGATION DELAY DISPERSION COMPARATOR HYSTERESIS MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
