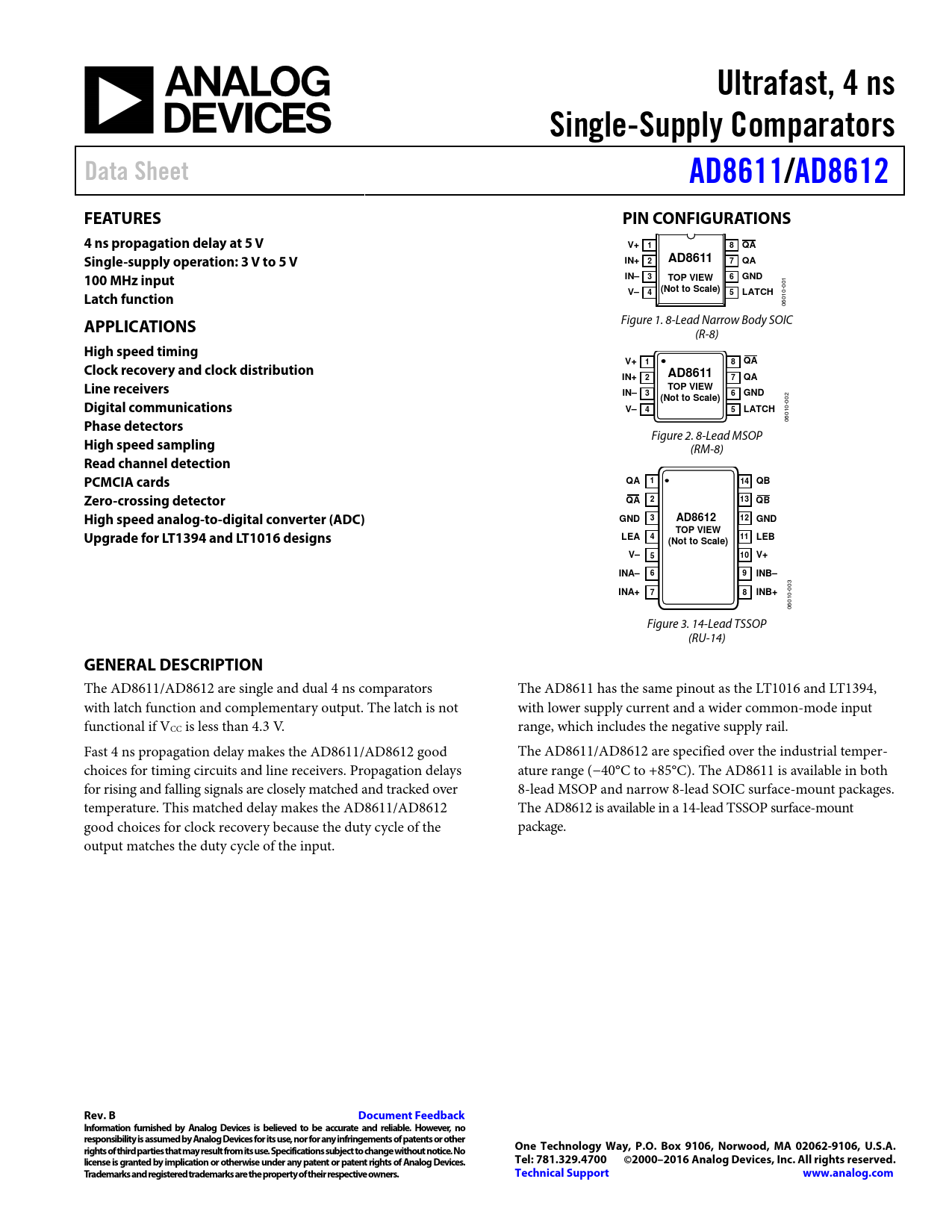

Ultrafast, 4 ns Single-Supply Comparators Data Sheet AD8611/ AD8612 FEATURES PIN CONFIGURATIONS 4 ns propagation delay at 5 V V+ 1 8 QA Single-supply operation: 3 V to 5 V IN+ 2 AD8611 7 QA 100 MHz input IN– 3 6 TOP VIEW GND (Not to Scale)
001
Latch function V– 4 5 LATCH
06010-
APPLICATIONS
Figure 1. 8-Lead Narrow Body SOIC (R-8)
High speed timing V+ 1 8 QA Clock recovery and clock distribution IN+ AD8611 2 7 QA Line receivers TOP VIEW IN– 3 6 GND (Not to Scale) Digital communications
002
V– 4 5 LATCH Phase detectors
06010- Figure 2. 8-Lead MSOP
High speed sampling
(RM-8)
Read channel detection PCMCIA cards QA 1 14 QB Zero-crossing detector QA 2 13 QB High speed analog-to-digital converter (ADC) GND 3 AD8612 12 GND Upgrade for LT1394 and LT1016 designs TOP VIEW LEA 4 11 LEB (Not to Scale) V– 5 10 V+ INA– 6 9 INB–
003
INA+ 7 8 INB+
06010- Figure 3. 14-Lead TSSOP (RU-14)
GENERAL DESCRIPTION
The AD8611/AD8612 are single and dual 4 ns comparators The AD8611 has the same pinout as the LT1016 and LT1394, with latch function and complementary output. The latch is not with lower supply current and a wider common-mode input functional if VCC is less than 4.3 V. range, which includes the negative supply rail. Fast 4 ns propagation delay makes the AD8611/AD8612 good The AD8611/AD8612 are specified over the industrial temper- choices for timing circuits and line receivers. Propagation delays ature range (−40°C to +85°C). The AD8611 is available in both for rising and fal ing signals are closely matched and tracked over 8-lead MSOP and narrow 8-lead SOIC surface-mount packages. temperature. This matched delay makes the AD8611/AD8612 The AD8612 is available in a 14-lead TSSOP surface-mount good choices for clock recovery because the duty cycle of the package. output matches the duty cycle of the input.
