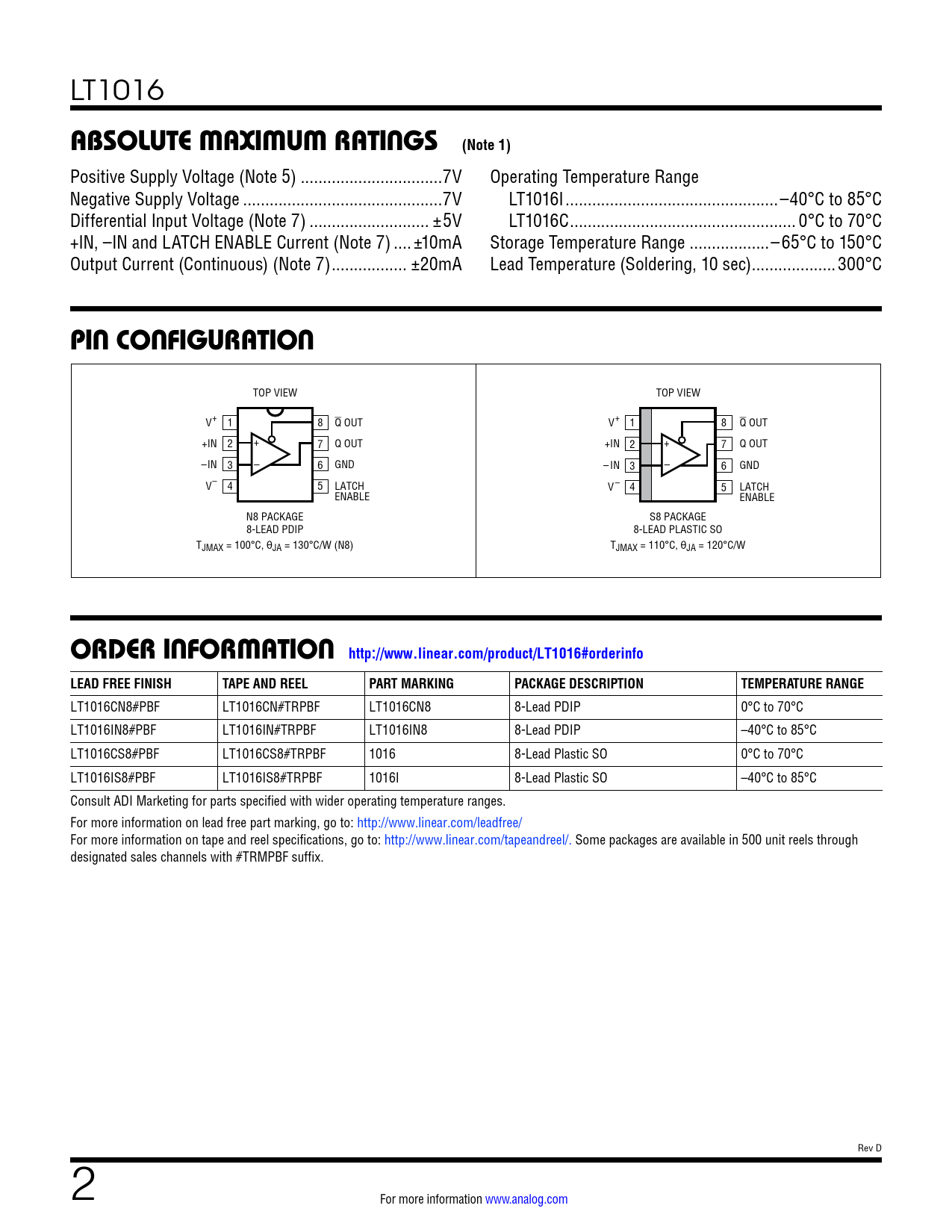

LT1016
ABSOLUTE MAXIMUM RATINGS (Note 1)
Positive Supply Voltage (Note 5) ..7V Operating Temperature Range Negative Supply Voltage ...7V LT1016I ..–40°C to 85°C Differential Input Voltage (Note 7) ... ±5V LT1016C ... 0°C to 70°C +IN, –IN and LATCH ENABLE Current (Note 7) .. ±10mA Storage Temperature Range ..–65°C to 150°C Output Current (Continuous) (Note 7) ... ±20mA Lead Temperature (Soldering, 10 sec) ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW V+ 1 8 Q OUT V+ 1 8 Q OUT +IN 2 + 7 Q OUT +IN 2 + 7 Q OUT –IN 3 – 6 GND –IN 3 – 6 GND V– 4 5 LATCH V– 4 5 LATCH ENABLE ENABLE N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO TJMAX = 100°C, θJA = 130°C/W (N8) TJMAX = 110°C, θJA = 120°C/W
ORDER INFORMATION http://www.linear.com/product/LT1016#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1016CN8#PBF LT1016CN#TRPBF LT1016CN8 8-Lead PDIP 0°C to 70°C LT1016IN8#PBF LT1016IN#TRPBF LT1016IN8 8-Lead PDIP –40°C to 85°C LT1016CS8#PBF LT1016CS8#TRPBF 1016 8-Lead Plastic SO 0°C to 70°C LT1016IS8#PBF LT1016IS8#TRPBF 1016I 8-Lead Plastic SO –40°C to 85°C Consult ADI Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev D 2 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Appendix A Package Description Revision History Applications Information Related Parts
