Datasheet LT3066 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Active Output Discharge |
| 页数 / 页 | 26 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS TJ = 25°C, unless otherwise noted. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 2.0 Mb |
| 文件语言 | 英语 |

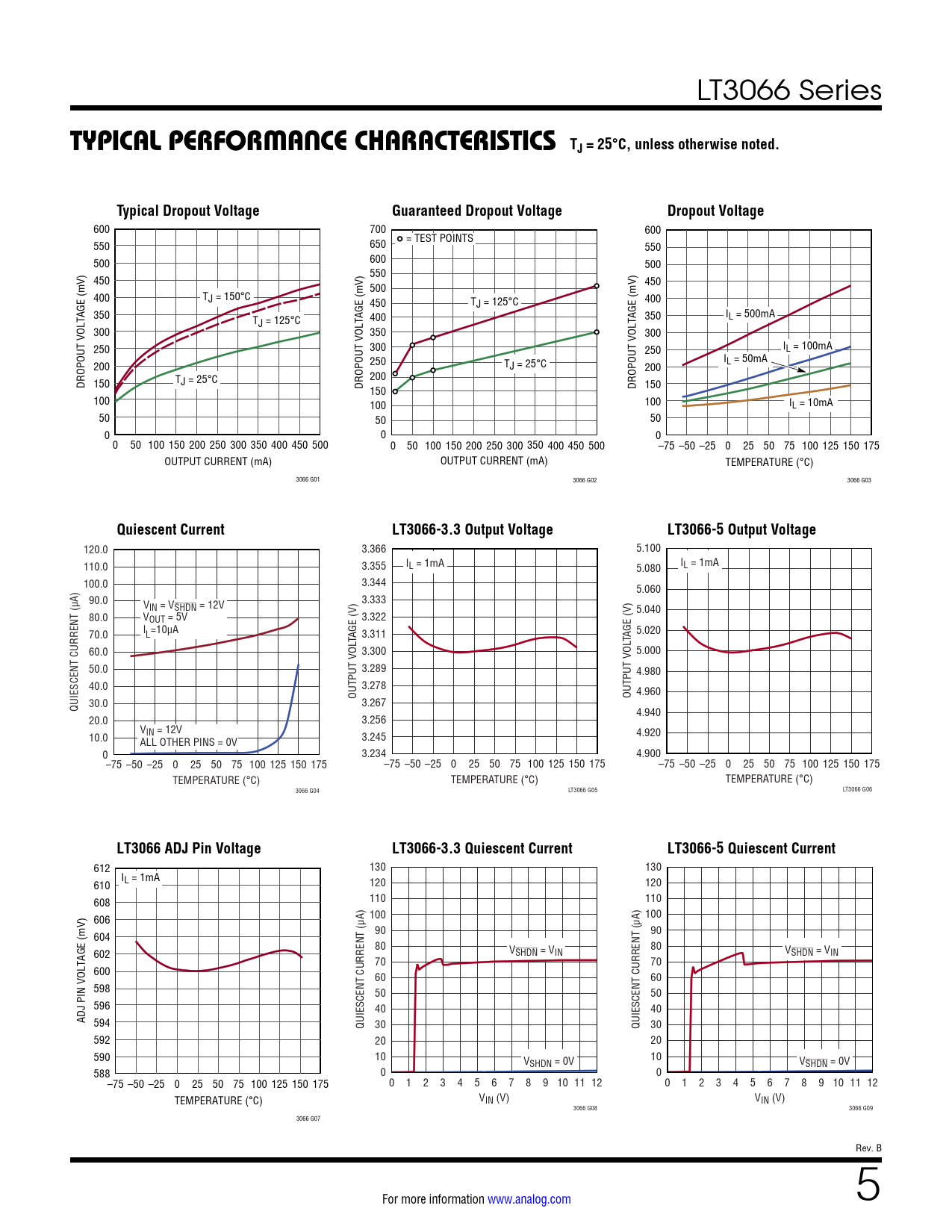

TYPICAL PERFORMANCE CHARACTERISTICS TJ = 25°C, unless otherwise noted. Typical Dropout Voltage. Guaranteed Dropout Voltage
该数据表的模型线
- LT3066EDE#PBF LT3066EDE#TRPBF LT3066EDE-3.3#PBF LT3066EDE-3.3#TRPBF LT3066EDE-5#PBF LT3066EDE-5#TRPBF LT3066EMSE#PBF LT3066EMSE#TRPBF LT3066EMSE-3.3#PBF LT3066EMSE-3.3#TRPBF LT3066EMSE-5#PBF LT3066EMSE-5#TRPBF LT3066IDE#PBF LT3066IDE#TRPBF LT3066IDE-3.3#PBF LT3066IDE-3.3#TRPBF LT3066IDE-5#PBF LT3066IDE-5#TRPBF LT3066IMSE#PBF LT3066IMSE#TRPBF LT3066IMSE-3.3#PBF LT3066IMSE-3.3#TRPBF LT3066IMSE-5#PBF LT3066IMSE-5#TRPBF
文件文字版本
LT3066 Series
TYPICAL PERFORMANCE CHARACTERISTICS TJ = 25°C, unless otherwise noted. Typical Dropout Voltage Guaranteed Dropout Voltage Dropout Voltage
600 700 600 = TEST POINTS 550 650 550 500 600 500 550 450 500 450 400 TJ = 150°C 450 TJ = 125°C 400 350 I T 350 J = 125°C 400 L = 500mA 300 350 300 250 300 250 IL = 100mA I 200 250 TJ = 25°C 200 L = 50mA 200 DROPOUT VOLTAGE (mV) 150 TJ = 25°C DROPOUT VOLTAGE (mV) 150 DROPOUT VOLTAGE (mV) 150 100 100 100 IL = 10mA 50 50 50 0 0 0 0 50 100 150 200 250 300 350 400 450 500 0 50 100 150 200 250 300 350 400 450 500 –75 –50 –25 0 25 50 75 100 125 150 175 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) TEMPERATURE (°C) 3066 G01 3066 G02 3066 G03
Quiescent Current LT3066-3.3 Output Voltage LT3066-5 Output Voltage
120.0 3.366 5.100 I 110.0 3.355 L = 1mA IL = 1mA 5.080 100.0 3.344 5.060 90.0 3.333 VIN = VSHDN = 12V 5.040 80.0 VOUT = 5V 3.322 I 70.0 L=10µA 3.311 5.020 TAGE (V) TAGE (V) 60.0 3.300 5.000 50.0 3.289 4.980 40.0 3.278 OUTPUT VOL 4.960 OUTPUT VOL 30.0 3.267 QUIESCENT CURRENT (µA) 4.940 20.0 3.256 VIN = 12V 10.0 3.245 4.920 ALL OTHER PINS = 0V 0 3.234 4.900 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 3066 G04 LT3066 G05 LT3066 G06
LT3066 ADJ Pin Voltage LT3066-3.3 Quiescent Current LT3066-5 Quiescent Current
612 130 130 I 610 L = 1mA 120 120 608 110 110 606 100 100 90 90 604 80 80 602 VSHDN = VIN VSHDN = VIN 70 70 600 60 60 598 50 50 596 40 40 ADJ PIN VOLTAGE (mV) 594 QUIESCENT CURRENT (µA) 30 QUIESCENT CURRENT (µA) 30 592 20 20 590 10 V 10 SHDN = 0V VSHDN = 0V 588 0 0 –75 –50 –25 0 25 50 75 100 125 150 175 0 1 2 3 4 5 6 7 8 9 10 11 12 0 1 2 3 4 5 6 7 8 9 10 11 12 TEMPERATURE (°C) VIN (V) VIN (V) 3066 G08 3066 G09 3066 G07 Rev. B For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
