Datasheet HMC976LP3E (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 400 mA Low Noise, High PSRR Linear Voltage Regulator |
| 页数 / 页 | 12 / 2 — HMC976LP3E. 400mA LOW NOISE, HIGH PSRR. LINEAR VOLTAGE REGULATOR. Table … |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |
HMC976LP3E. 400mA LOW NOISE, HIGH PSRR. LINEAR VOLTAGE REGULATOR. Table 1. Electrical Specifications
该数据表的模型线
文件文字版本
HMC976LP3E
v02.1112
400mA LOW NOISE, HIGH PSRR LINEAR VOLTAGE REGULATOR Table 1. Electrical Specifications

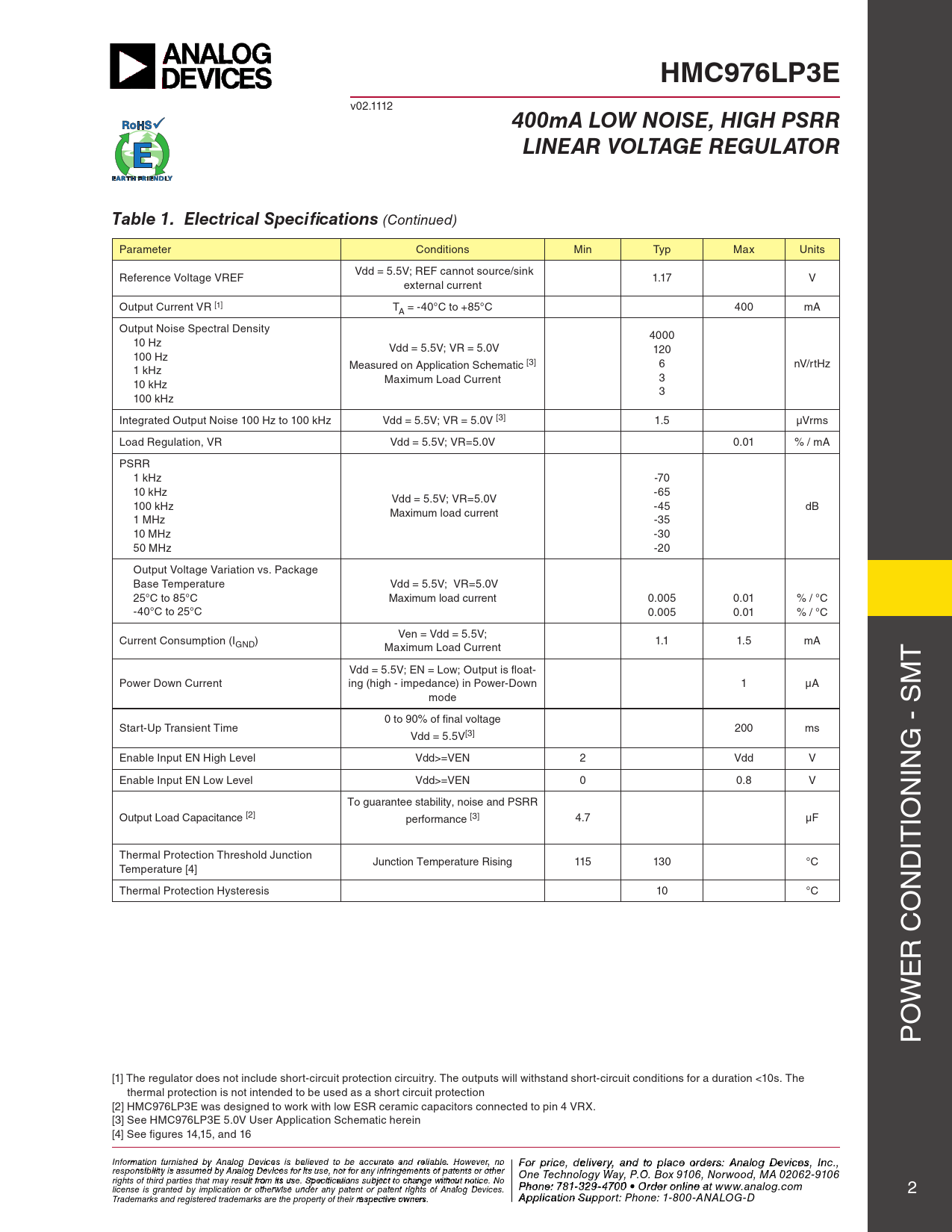

(Continued) Parameter Conditions Min Typ Max Units Vdd = 5.5V; REF cannot source/sink Reference Voltage VREF 1.17 V external current Output Current VR [1] TA = -40°C to +85°C 400 mA Output Noise Spectral Density 4000 10 Hz Vdd = 5.5V; VR = 5.0V 120 100 Hz 6 nV/rtHz 1 kHz Measured on Application Schematic [3] 3 10 kHz Maximum Load Current 3 100 kHz Integrated Output Noise 100 Hz to 100 kHz Vdd = 5.5V; VR = 5.0V [3] 1.5 µVrms Load Regulation, VR Vdd = 5.5V; VR=5.0V 0.01 % / mA PSRR 1 kHz -70 10 kHz -65 Vdd = 5.5V; VR=5.0V 100 kHz -45 dB Maximum load current 1 MHz -35 10 MHz -30 50 MHz -20 Output Voltage Variation vs. Package Base Temperature Vdd = 5.5V; VR=5.0V 25°C to 85°C Maximum load current 0.005 0.01 % / °C -40°C to 25°C 0.005 0.01 % / °C Ven = Vdd = 5.5V; Current Consumption (IGND) 1.1 1.5 mA Maximum Load Current T Vdd = 5.5V; EN = Low; Output is float- Power Down Current ing (high - impedance) in Power-Down 1 µA M mode 0 to 90% of final voltage Start-Up Transient Time 200 ms Vdd = 5.5V[3] G - S Enable Input EN High Level Vdd>=VEN 2 Vdd V IN Enable Input EN Low Level Vdd>=VEN 0 0.8 V N To guarantee stability, noise and PSRR Output Load Capacitance [2] performance [3] 4.7 µF IO IT Thermal Protection Threshold Junction Junction Temperature Rising 115 130 °C Temperature [4] D Thermal Protection Hysteresis 10 °C N O R C E W O P [1] The regulator does not include short-circuit protection circuitry. The outputs will withstand short-circuit conditions for a duration <10s. The thermal protection is not intended to be used as a short circuit protection [2] HMC976LP3E was designed to work with low ESR ceramic capacitors connected to pin 4 VRX. [3] See HMC976LP3E 5.0V User Application Schematic herein [4] See figures 14,15, and 16 InfoFro ma r p tion rfiucre nis, d he e d lbiv y e An raly a og n Ded t viceo p s is la be clie o eved rtd o e b re sa: H ccur iattti e te M and re ilicarbloew . a Ho ve C wever, onro For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other poration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 978-250-3343 tel • 978-250-3373 fax • O rights of third parties that may result from its use. Specifications subject to change without notice. No rd P e h r O one n : 7-lin 81- e a 329-t w 47 w 0 w.h 0 • O it rd teite r o .nc li o n m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. e at www.analog.com 2 Application S Trademarks and registered trademarks are the property of their respective owners. upport: apps@ A h p i p tliti c te ati .ocom n Support: Phone: 1-800-ANALOG-D
