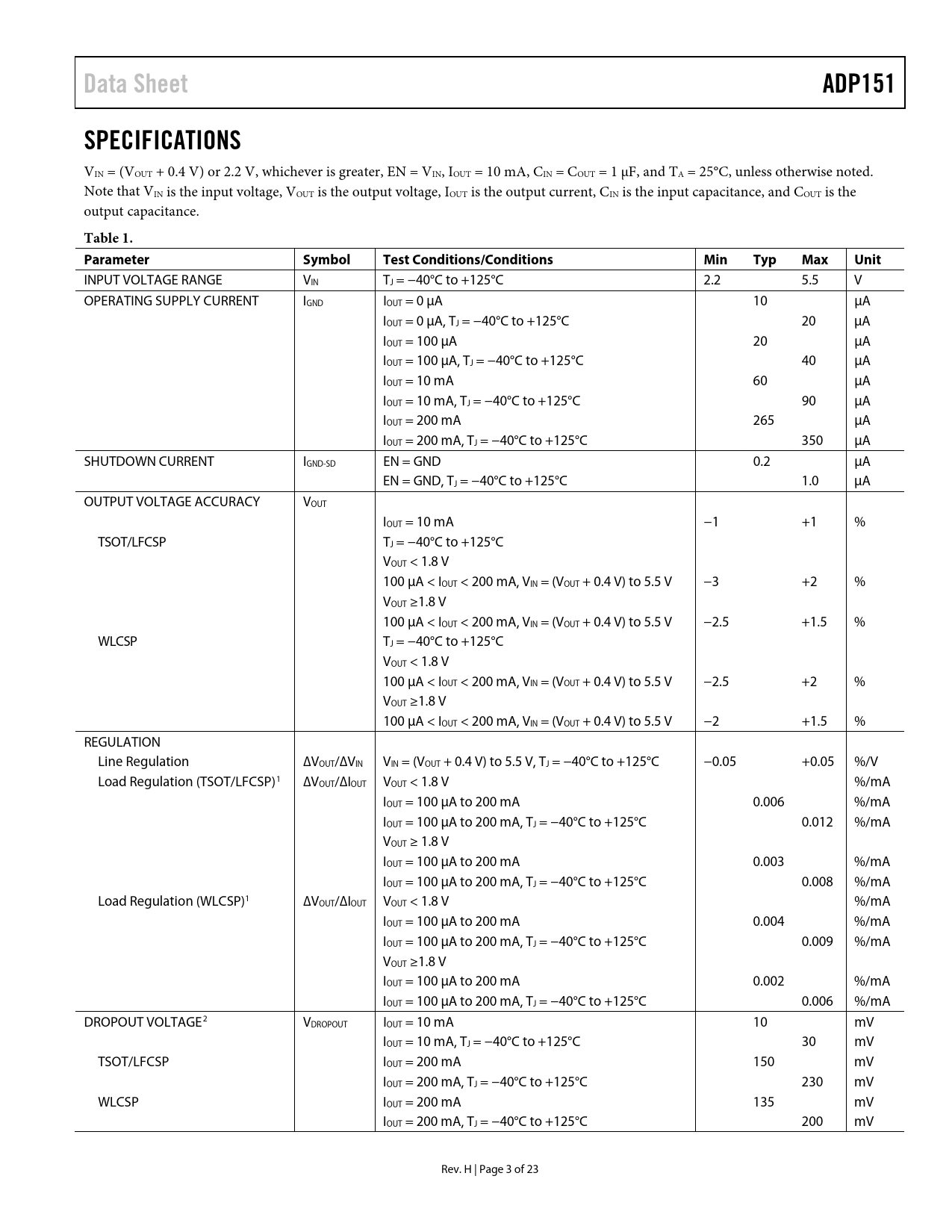

Data Sheet ADP151 SPECIFICATIONS
VIN = (VOUT + 0.4 V) or 2.2 V, whichever is greater, EN = VIN, IOUT = 10 mA, CIN = COUT = 1 µF, and TA = 25°C, unless otherwise noted. Note that VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, CIN is the input capacitance, and COUT is the output capacitance.
Table 1. Parameter Symbol Test Conditions/Conditions Min Typ Max Unit
INPUT VOLTAGE RANGE VIN TJ = −40°C to +125°C 2.2 5.5 V OPERATING SUPPLY CURRENT IGND IOUT = 0 µA 10 µA IOUT = 0 µA, TJ = −40°C to +125°C 20 µA IOUT = 100 µA 20 µA IOUT = 100 µA, TJ = −40°C to +125°C 40 µA IOUT = 10 mA 60 µA IOUT = 10 mA, TJ = −40°C to +125°C 90 µA IOUT = 200 mA 265 μA IOUT = 200 mA, TJ = −40°C to +125°C 350 μA SHUTDOWN CURRENT IGND-SD EN = GND 0.2 µA EN = GND, TJ = −40°C to +125°C 1.0 µA OUTPUT VOLTAGE ACCURACY VOUT IOUT = 10 mA −1 +1 % TSOT/LFCSP TJ = −40°C to +125°C VOUT < 1.8 V 100 µA < IOUT < 200 mA, VIN = (VOUT + 0.4 V) to 5.5 V −3 +2 % VOUT ≥1.8 V 100 µA < IOUT < 200 mA, VIN = (VOUT + 0.4 V) to 5.5 V −2.5 +1.5 % WLCSP TJ = −40°C to +125°C VOUT < 1.8 V 100 µA < IOUT < 200 mA, VIN = (VOUT + 0.4 V) to 5.5 V −2.5 +2 % VOUT ≥1.8 V 100 µA < IOUT < 200 mA, VIN = (VOUT + 0.4 V) to 5.5 V −2 +1.5 % REGULATION Line Regulation ∆VOUT/∆VIN VIN = (VOUT + 0.4 V) to 5.5 V, TJ = −40°C to +125°C −0.05 +0.05 %/V Load Regulation (TSOT/LFCSP)1 ∆VOUT/∆IOUT VOUT < 1.8 V %/mA IOUT = 100 µA to 200 mA 0.006 %/mA IOUT = 100 µA to 200 mA, TJ = −40°C to +125°C 0.012 %/mA VOUT ≥ 1.8 V IOUT = 100 µA to 200 mA 0.003 %/mA IOUT = 100 µA to 200 mA, TJ = −40°C to +125°C 0.008 %/mA Load Regulation (WLCSP)1 ∆VOUT/∆IOUT VOUT < 1.8 V %/mA IOUT = 100 µA to 200 mA 0.004 %/mA IOUT = 100 µA to 200 mA, TJ = −40°C to +125°C 0.009 %/mA VOUT ≥1.8 V IOUT = 100 µA to 200 mA 0.002 %/mA IOUT = 100 µA to 200 mA, TJ = −40°C to +125°C 0.006 %/mA DROPOUT VOLTAGE2 VDROPOUT IOUT = 10 mA 10 mV IOUT = 10 mA, TJ = −40°C to +125°C 30 mV TSOT/LFCSP IOUT = 200 mA 150 mV IOUT = 200 mA, TJ = −40°C to +125°C 230 mV WLCSP IOUT = 200 mA 135 mV IOUT = 200 mA, TJ = −40°C to +125°C 200 mV Rev. H | Page 3 of 23 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUITS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS INPUT AND OUTPUT CAPACITOR, RECOMMENDED SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL DATA THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION CAPACITOR SELECTION Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties ENABLE FEATURE ADJUSTABLE OUTPUT VOLTAGE OPERATION CURRENT-LIMIT AND THERMAL OVERLOAD PROTECTION THERMAL CONSIDERATIONS PRINTED CIRCUIT BOARD LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
