Datasheet LT3080 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Adjustable 1.1A Single Resistor Low Dropout Regulator |
| 页数 / 页 | 28 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1)(All Voltages Relative to VOUT). PIN … |
| 修订版 | D |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS (Note 1)(All Voltages Relative to VOUT). PIN CONFIGURATION. TAB IS. OUT
该数据表的模型线
- LT3080EDD#PBF LT3080EDD#TRPBF LT3080EMS8E#PBF LT3080EMS8E#TRPBF LT3080EQ#PBF LT3080EQ#TRPBF LT3080EST#PBF LT3080EST#TRPBF LT3080EST#WPBF LT3080EST#WTRPBF LT3080ET#31PBF LT3080ET#PBF LT3080IDD#PBF LT3080IDD#TRPBF LT3080IMS8E#PBF LT3080IMS8E#TRPBF LT3080IQ#PBF LT3080IQ#TRPBF LT3080IST#PBF LT3080IST#TRPBF LT3080IST#WPBF LT3080IST#WTRPBF LT3080IT#PBF
文件文字版本
LT3080

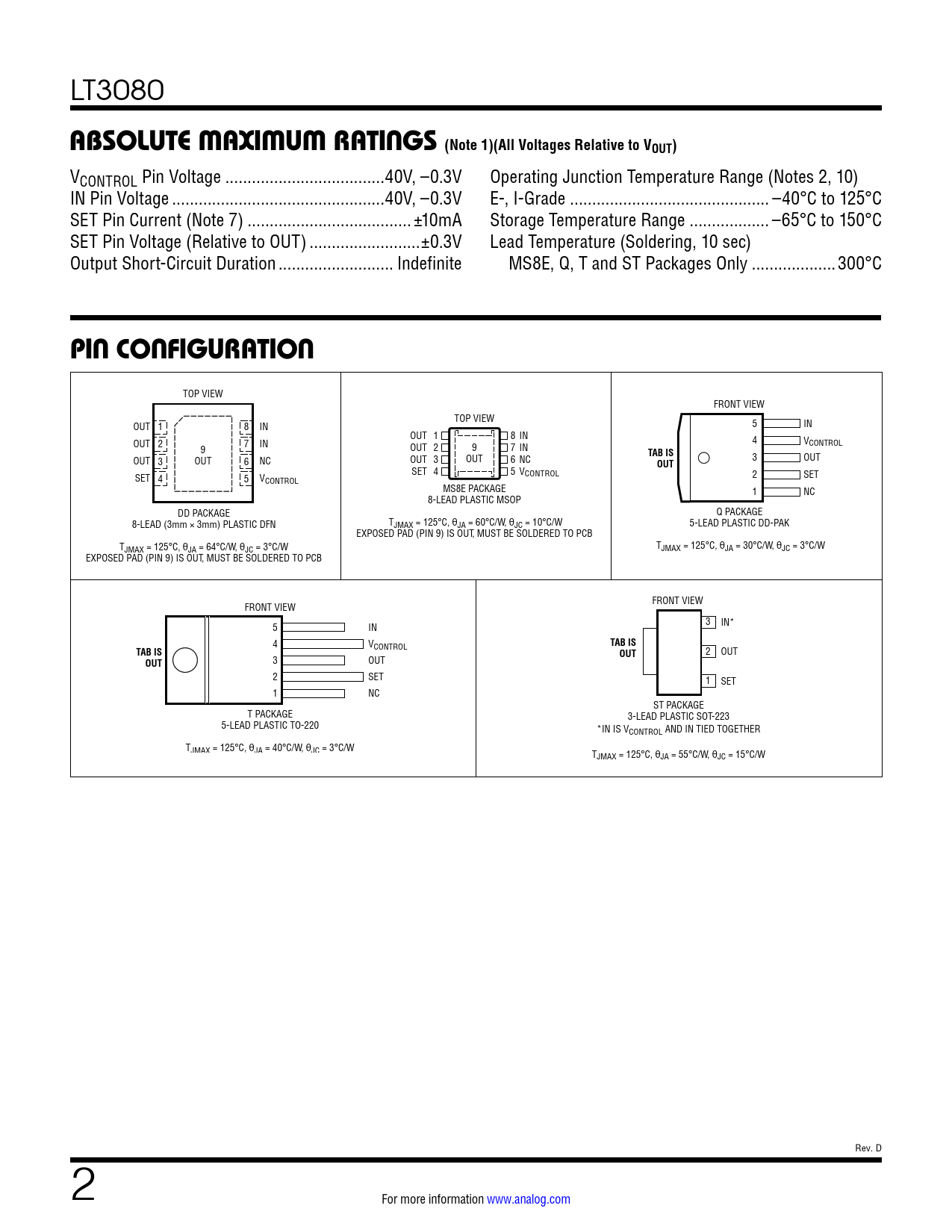

ABSOLUTE MAXIMUM RATINGS (Note 1)(All Voltages Relative to VOUT)
VCONTROL Pin Voltage ..40V, –0.3V Operating Junction Temperature Range (Notes 2, 10) IN Pin Voltage ..40V, –0.3V E-, I-Grade ... –40°C to 125°C SET Pin Current (Note 7) ... ±10mA Storage Temperature Range .. –65°C to 150°C SET Pin Voltage (Relative to OUT) ...±0.3V Lead Temperature (Soldering, 10 sec) Output Short-Circuit Duration .. Indefinite MS8E, Q, T and ST Packages Only ...300°C
PIN CONFIGURATION
TOP VIEW FRONT VIEW TOP VIEW OUT 1 8 IN 5 IN OUT 1 8 IN OUT 2 4 VCONTROL 9 7 IN OUT 2 9 7 IN
TAB IS
OUT 3 OUT 6 NC OUT 3 OUT 6 NC 3 OUT
OUT
SET 4 5 V SET 4 5 V CONTROL 2 SET CONTROL MS8E PACKAGE 1 NC 8-LEAD PLASTIC MSOP DD PACKAGE Q PACKAGE 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 60°C/W, θJC = 10°C/W 5-LEAD PLASTIC DD-PAK EXPOSED PAD (PIN 9) IS OUT, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 64°C/W, θJC = 3°C/W TJMAX = 125°C, θJA = 30°C/W, θJC = 3°C/W EXPOSED PAD (PIN 9) IS OUT, MUST BE SOLDERED TO PCB FRONT VIEW FRONT VIEW 5 IN 3 IN* 4 VCONTROL
TAB IS TAB IS
2
OUT
OUT 3 OUT
OUT
2 SET 1 SET 1 NC ST PACKAGE T PACKAGE 3-LEAD PLASTIC SOT-223 5-LEAD PLASTIC TO-220 *IN IS VCONTROL AND IN TIED TOGETHER TJMAX = 125°C, θJA = 40°C/W, θJC = 3°C/W TJMAX = 125°C, θJA = 55°C/W, θJC = 15°C/W Rev. D 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Output Voltage Stability and Output Capacitance Paralleling Devices Thermal Performance Quieting the Noise Overload Recovery Load Regulation Thermal Considerations T Package, 5-Lead TO-220 Calculating Junction Temperature Reducing Power Dissipation Typical Applications Package Description Revision History Typical Application Related Parts
ABSOLUTE MAXIMUM RATINGS (Note 1)(All Voltages Relative to VOUT)
VCONTROL Pin Voltage ..40V, –0.3V Operating Junction Temperature Range (Notes 2, 10) IN Pin Voltage ..40V, –0.3V E-, I-Grade ... –40°C to 125°C SET Pin Current (Note 7) ... ±10mA Storage Temperature Range .. –65°C to 150°C SET Pin Voltage (Relative to OUT) ...±0.3V Lead Temperature (Soldering, 10 sec) Output Short-Circuit Duration .. Indefinite MS8E, Q, T and ST Packages Only ...300°C
